Wiring Diagrams

Fig 1: ECA Connector Pin Diagram

G108650

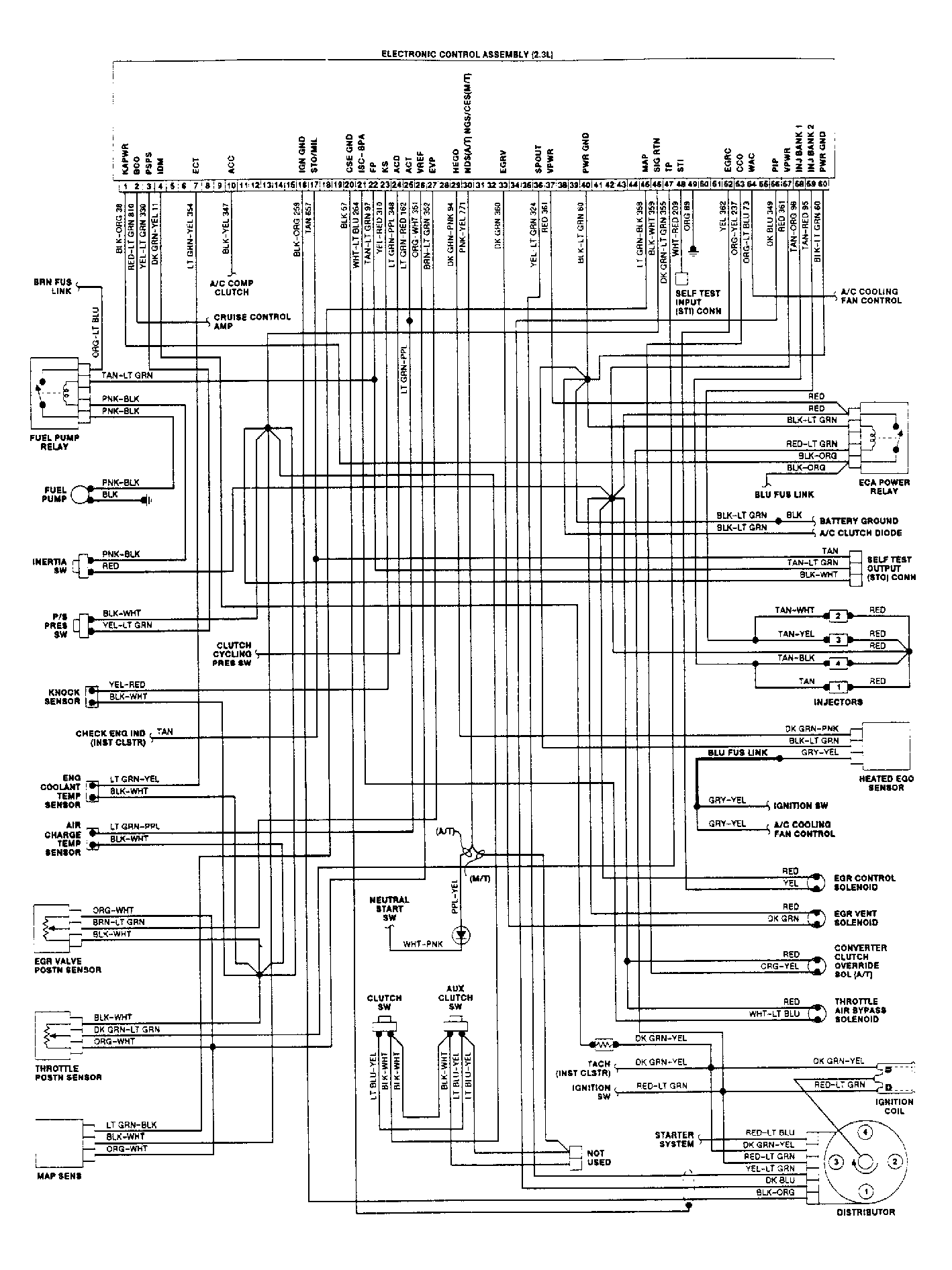

Fig 2: 2.3L MPFI EEC-IV Wiring Diagram (Mustang)

G108656

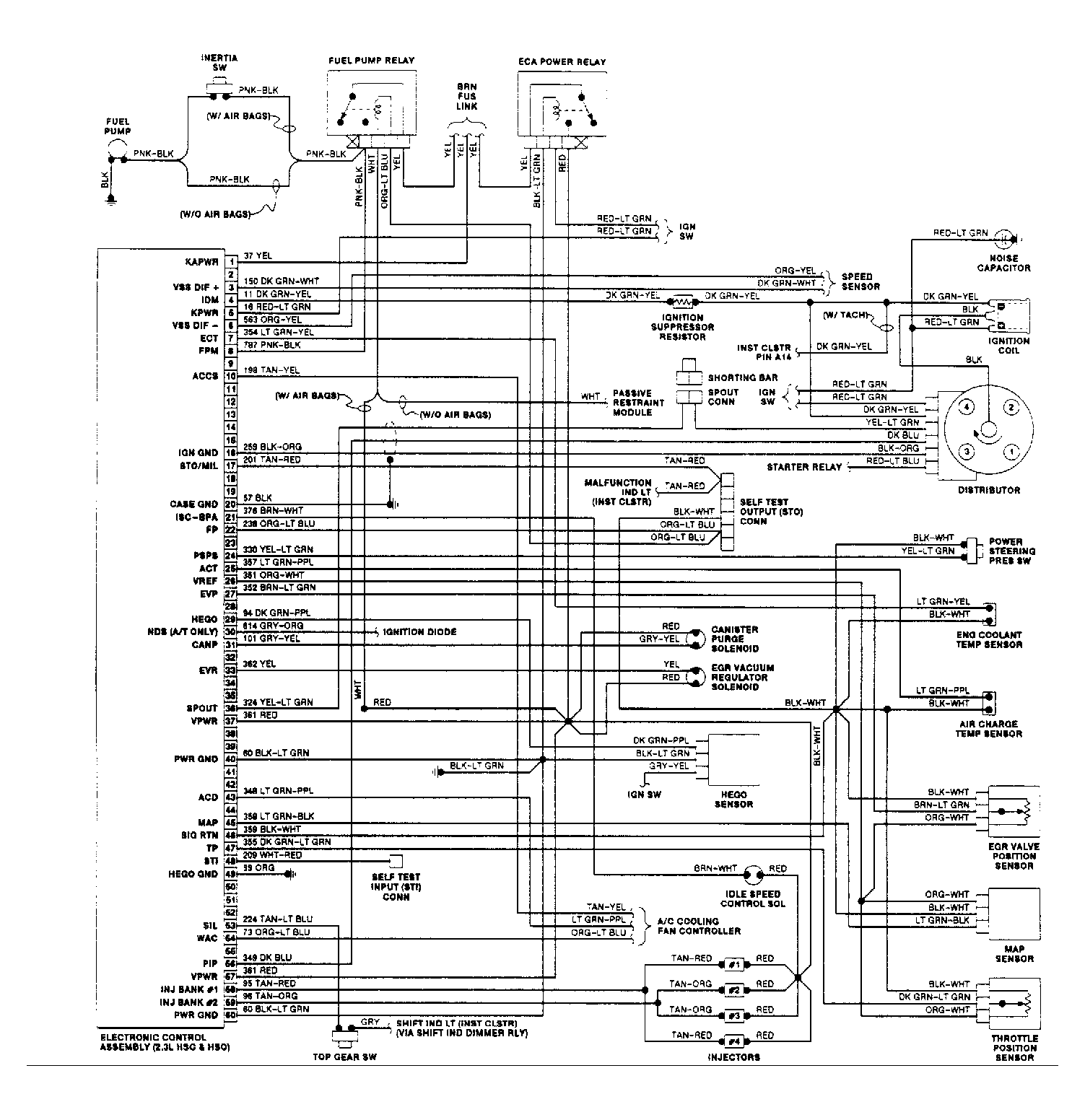

Fig 3: 2.3L HSC & HSO MPFI EEC-IV Wiring Diagram (Tempo & Topaz)

G108657
