Motor & Harness Test

  1. Disconnect power seat motor connectors. Disconnect power seat motor from linkage.

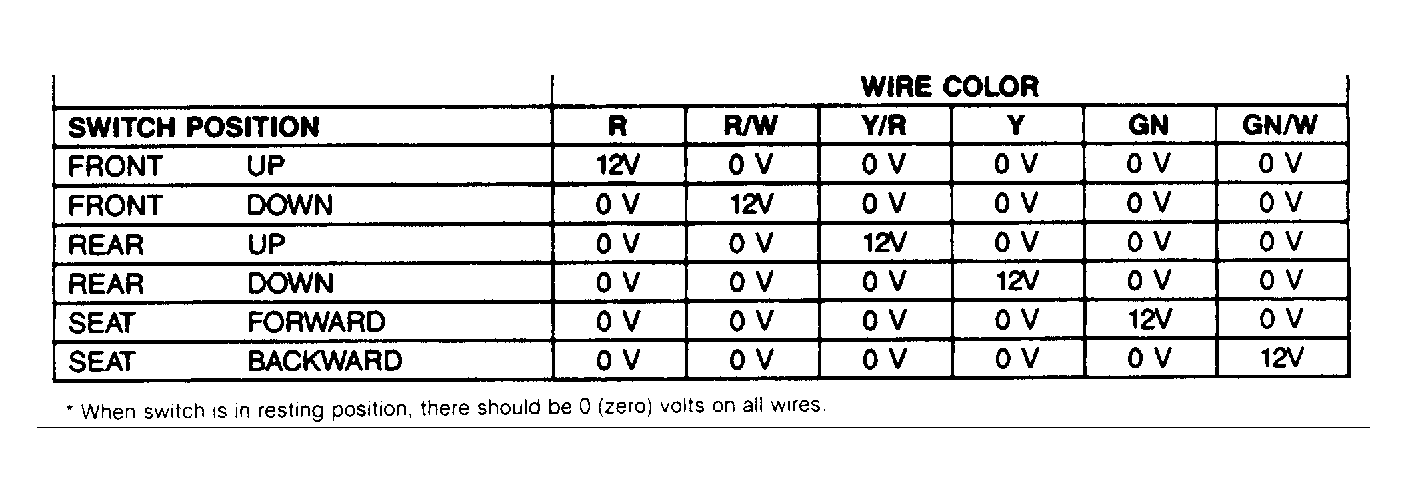

  2. Using chart in Fig. Figure as a guide, check for correct voltages at power seat motor connectors. See Figure , Figure and Figure . If voltages are not correct, check harness between motor and power seat switch.
  3. Apply 12 volts to motors for 2 seconds. See Fig 1 . Reverse power supply leads for 2 seconds. Motors should operate properly in both directions.
Fig 1: Testing Power Seat Motor
G108838Courtesy of FORD MOTOR CO.
NOTE: Manufacturer does not give removal and installation procedure for power seat motor.
