Trouble Shooting

NOTE: Always check fluid levels/linkage. Ensure computer control systems are operating properly before diagnosing transaxle shifting problems. See AUTO TRANS DIAGNOSIS - FORD 4EAT article in AUTOMATIC TRANSMISSIONS. See Fig 1 -Fig 2 for trouble shooting charts.

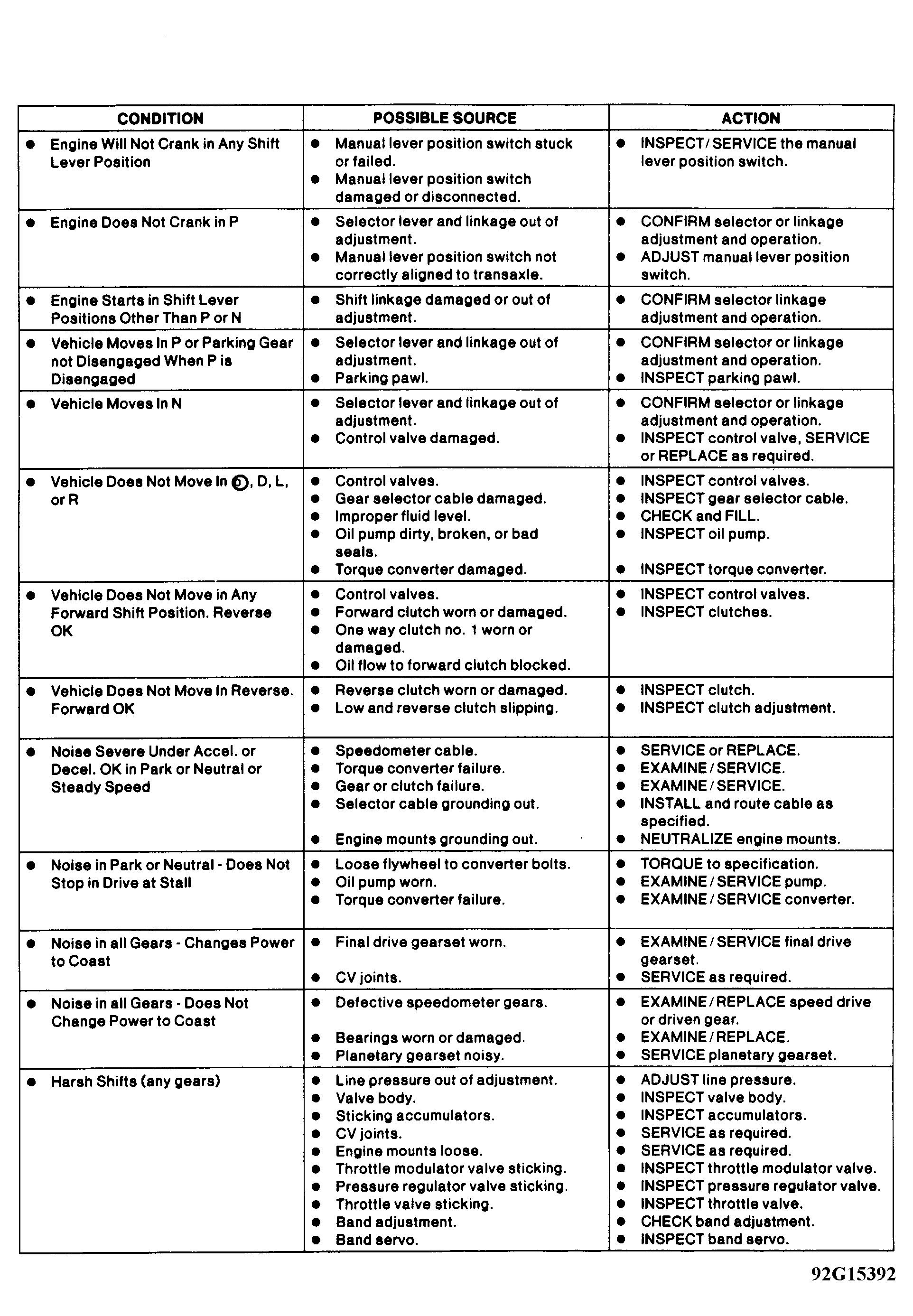

Fig 1: 4EAT Trouble Shooting Chart (1 of 3)
G92G15392Courtesy of FORD MOTOR CO.

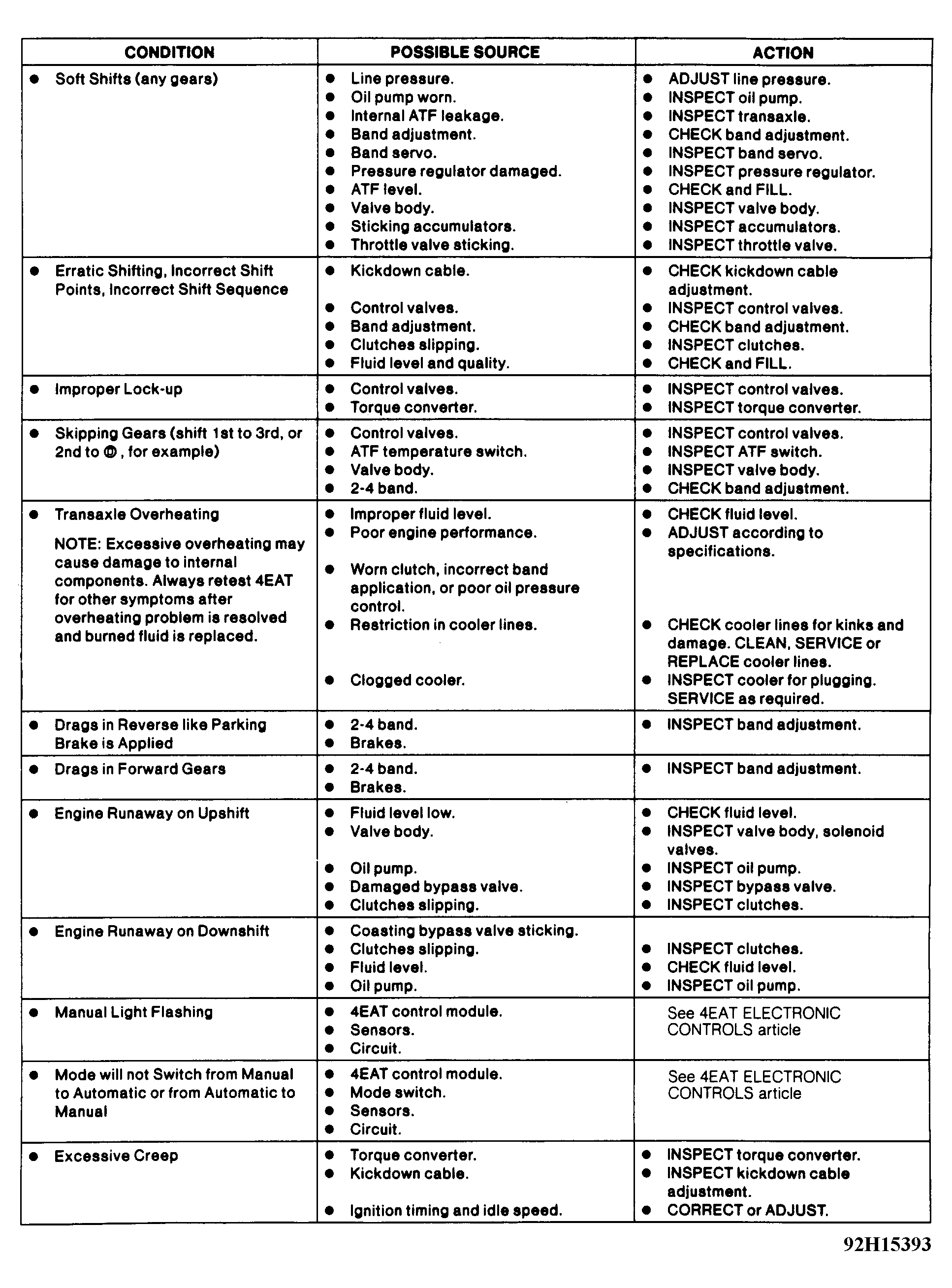

Fig 2: 4EAT Trouble Shooting Chart (2 of 3)
G92H15393Courtesy of FORD MOTOR CO.

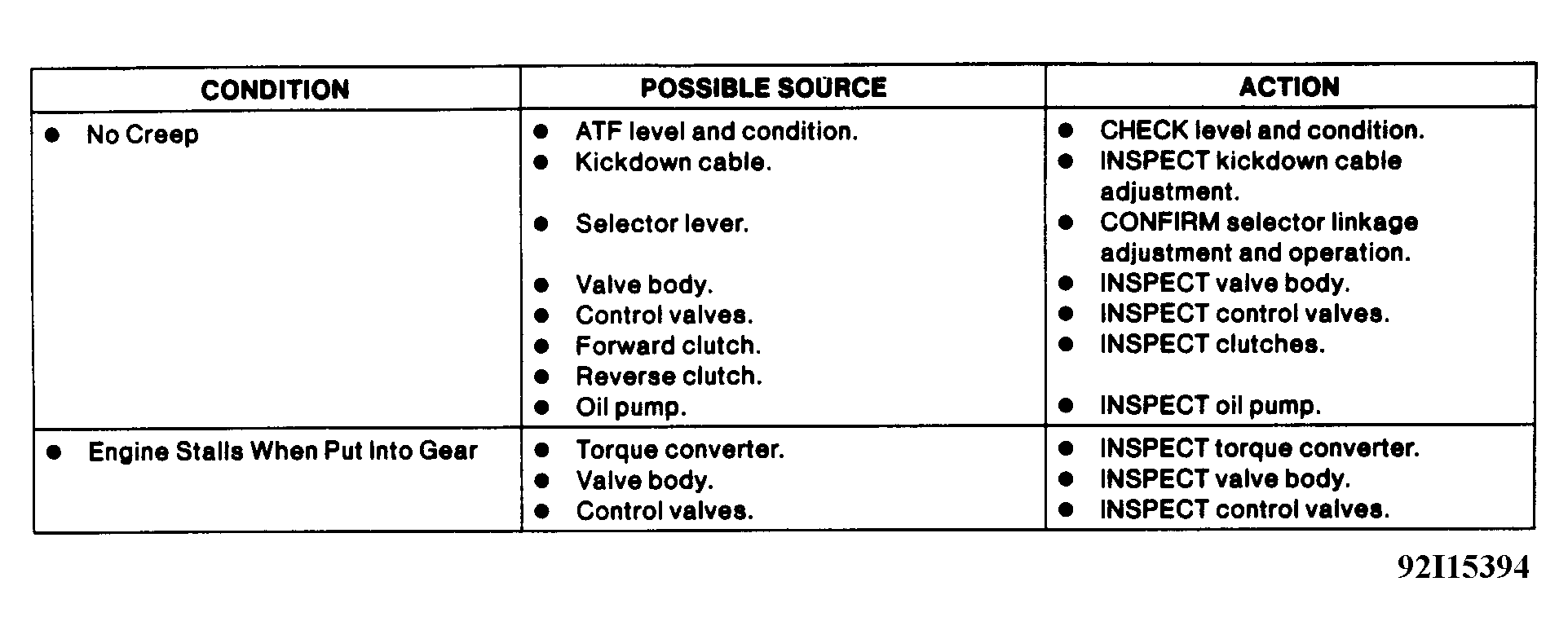

Fig 3: 4EAT Trouble Shooting Chart (3 of 3)
G92I15394Courtesy of FORD MOTOR CO.
