Engine Performance
>>
Theory and Operation
>>
Theory/Operation - 4-CYL
>>
Computerized Engine Controls
>>
Notes
Computerized Engine Controls: Notes

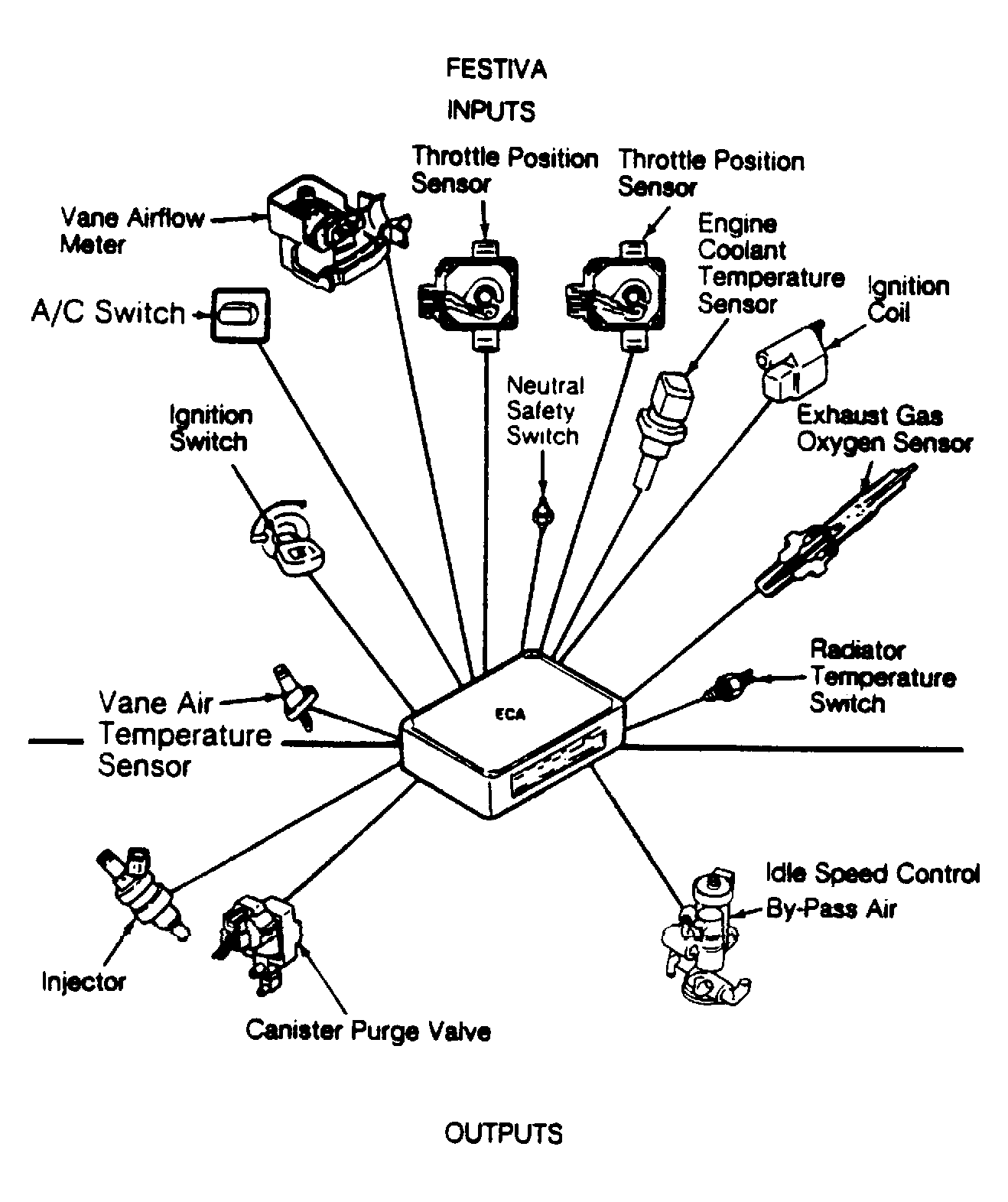

Fig 1: EFI CEC Diagrams (Festiva)
Courtesy of FORD MOTOR CO.

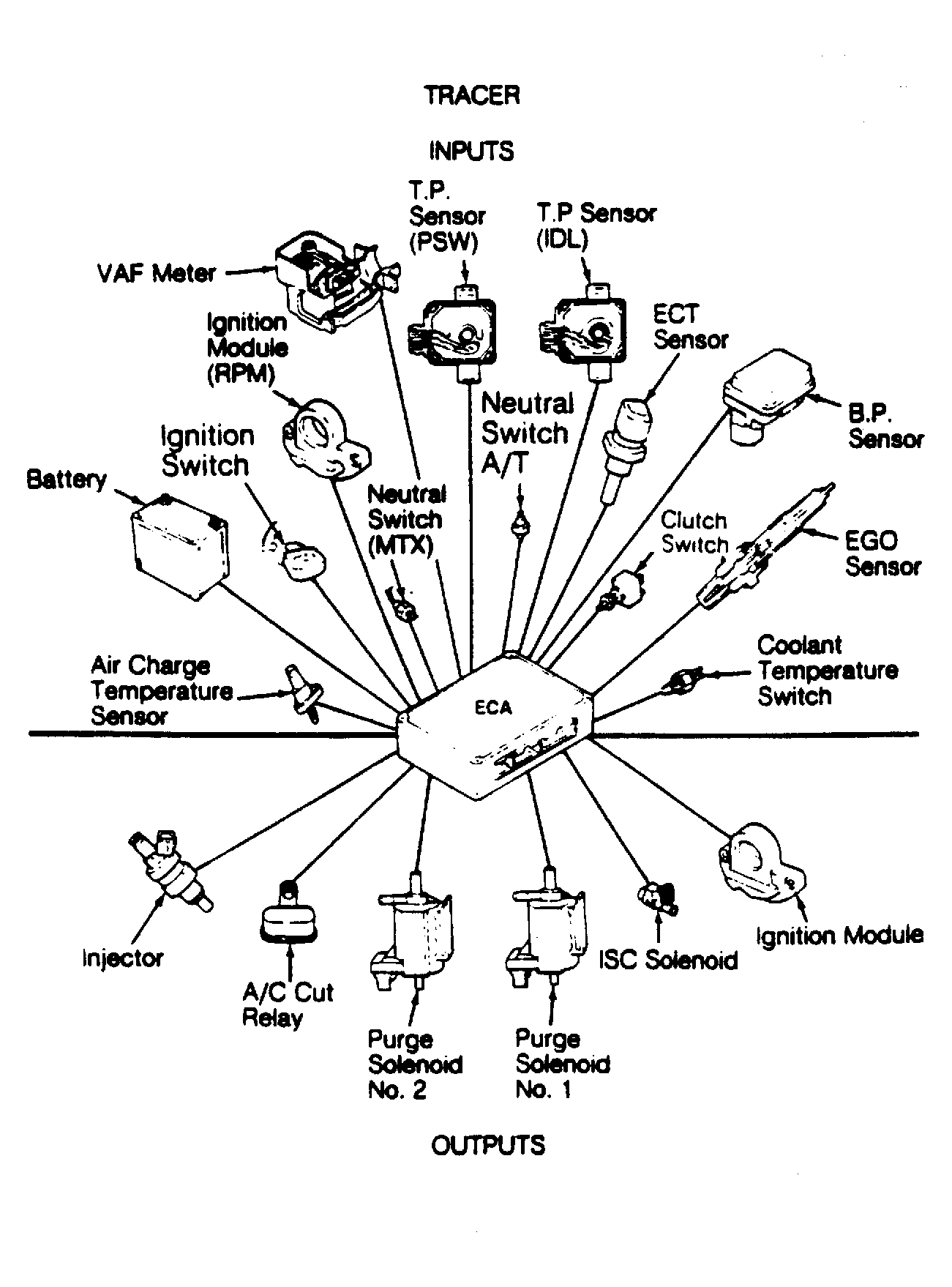

Fig 2: EFI CEC Diagrams (Tracer)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
