Shift Quadrant

  1. Remove shift lever knob. Remove console attaching screws. Place shift lever in Park. Remove shift lever knob and lock nut. Remove shift quadrant. Align holes in slider and shift quadrant. Install an alignment pin to hold slider in position.
  2. Install quadrant and remove alignment pin. Ensure clearance between lock lever and emergency override lever is correct. See Fig 1. Install lock nut and shift lever knob. Tighten lock nut to 11-15 ft. lbs. (15-20 N.m). Install console.

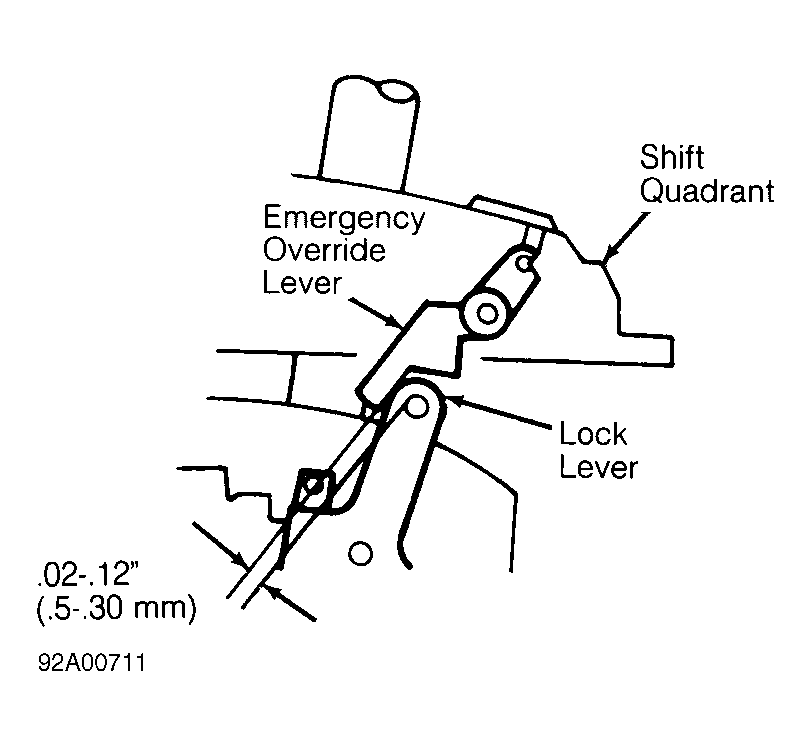

Fig 1: Checking Lock Lever Clearance
G92A00711Courtesy of FORD MOTOR CO.
