EEC-IV Wiring Diagrams

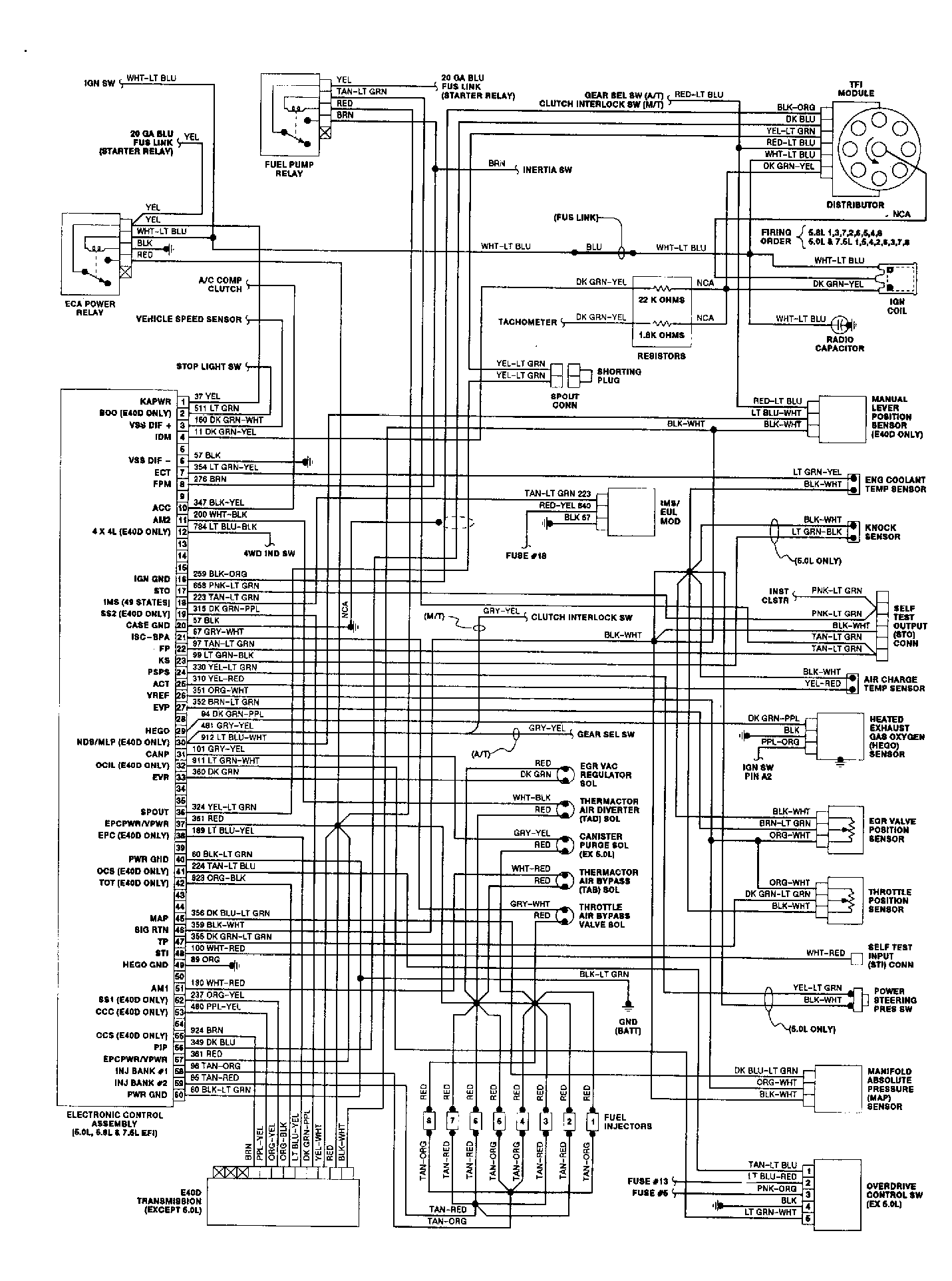

Fig 1: 5.0L Bronco & "F" Series EEC-IV Wiring Diagram

G120789

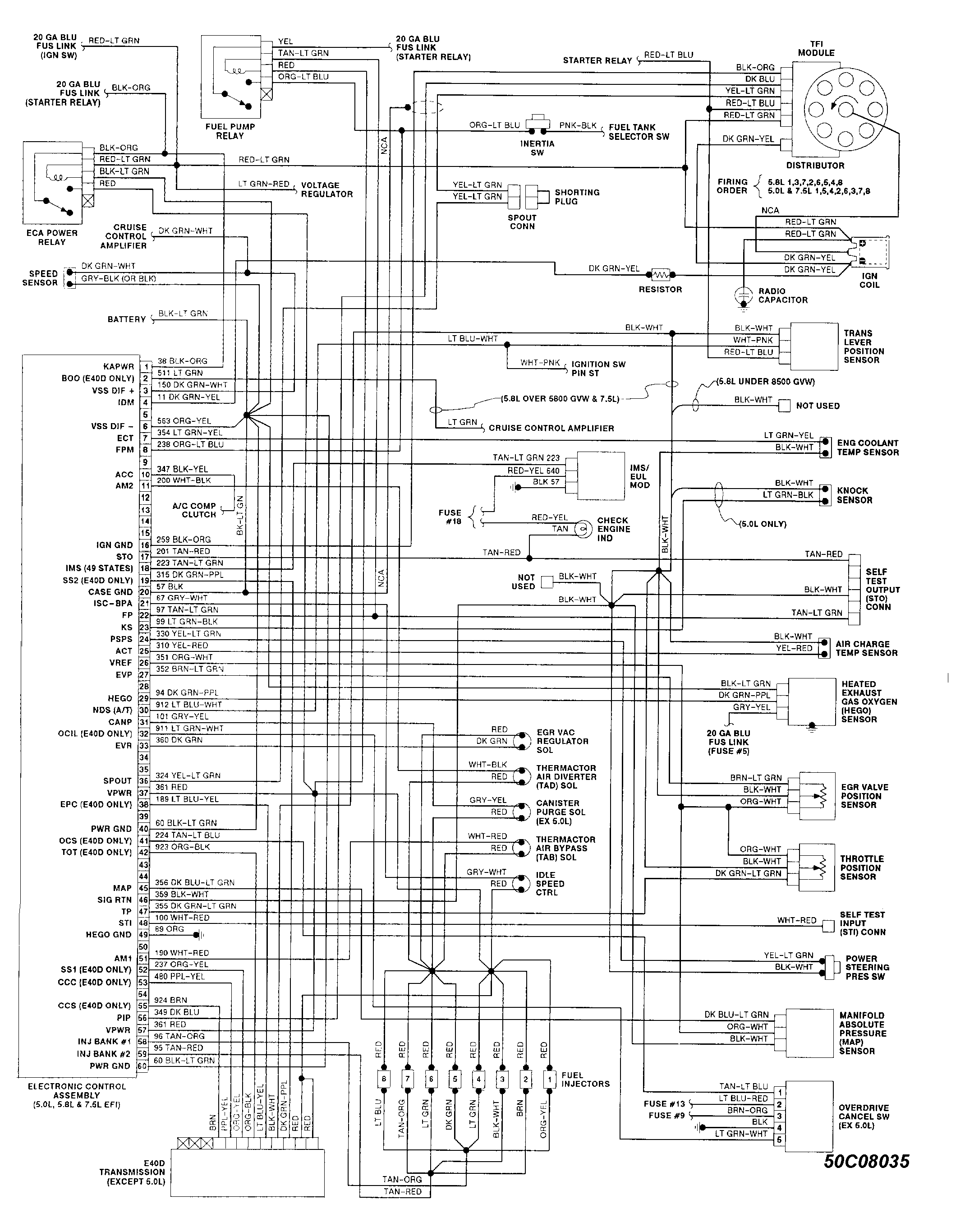

Fig 2: 5.0L "E" Series EEC-IV Wiring Diagram

G50C08035
