Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|

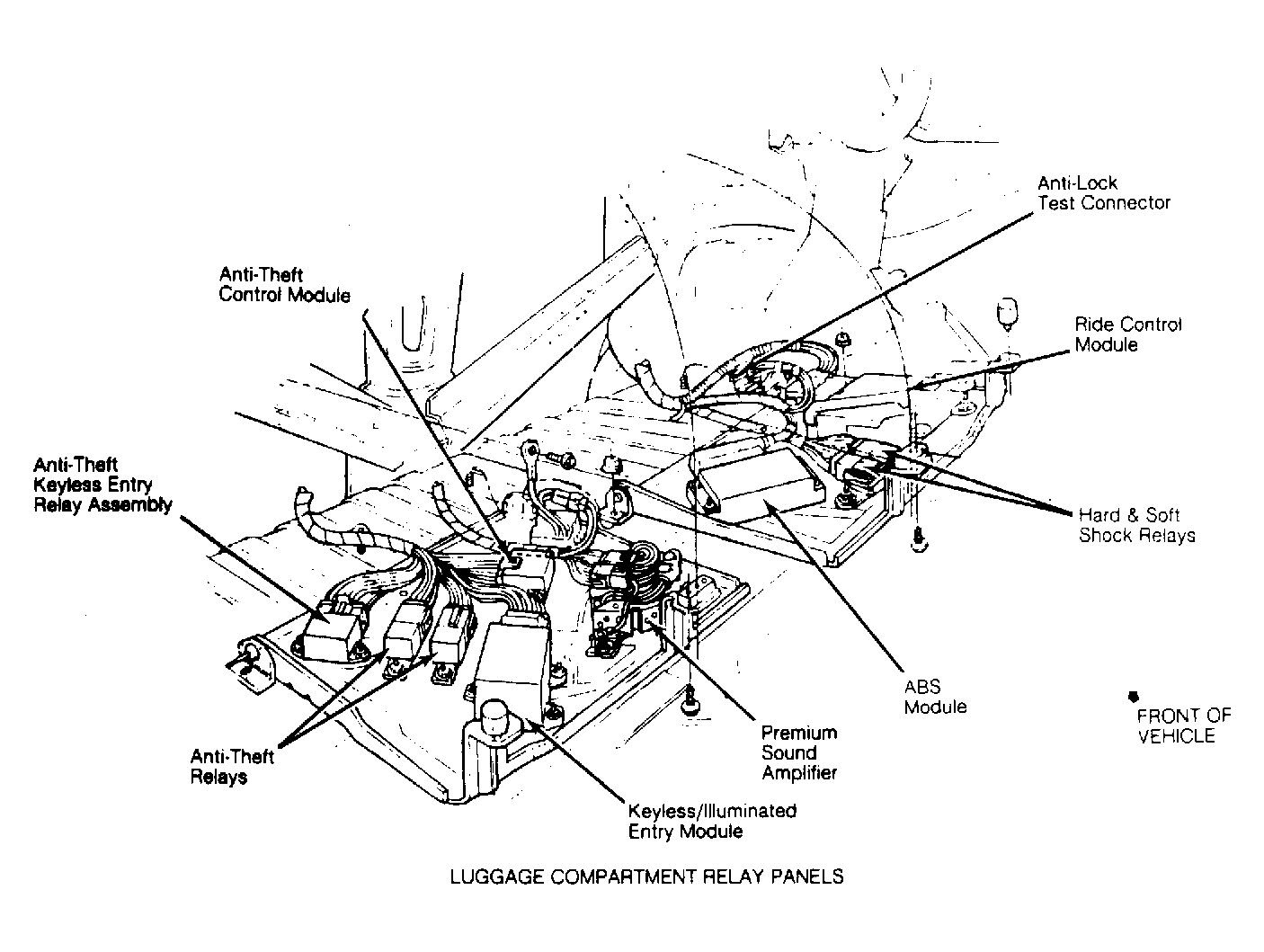

| ABS Module | Below package tray, in luggage compartment. See Figure . | |
| Anti-Theft Control Module | Below package tray, in luggage compartment. See Figure . | |
| Drivers Seat Memory Module | Beneath driver's seat. | |
| Elect. Control Assembly (ECA) | At access hole, on right kick panel. | |
| Integrated Controller Module (2.3L) | Mounted near right front strut tower. | |
| Keyless/Illuminated Entry Module | Mounted on package tray, behind rear seat. See Figure . | |
| Light Out Warning Module | Behind right side of dash, above glove box. See Figure . | |
| Low Fuel Warning Module | Behind upper right side of dash, above glove box. | |
| Ride Control Module | On left side of trunk, behind rear seat. See Figure . | |
| TFI Ignition Module | ||
| 3.8L Closed Bowl Dist. | Mounted on firewall. | |

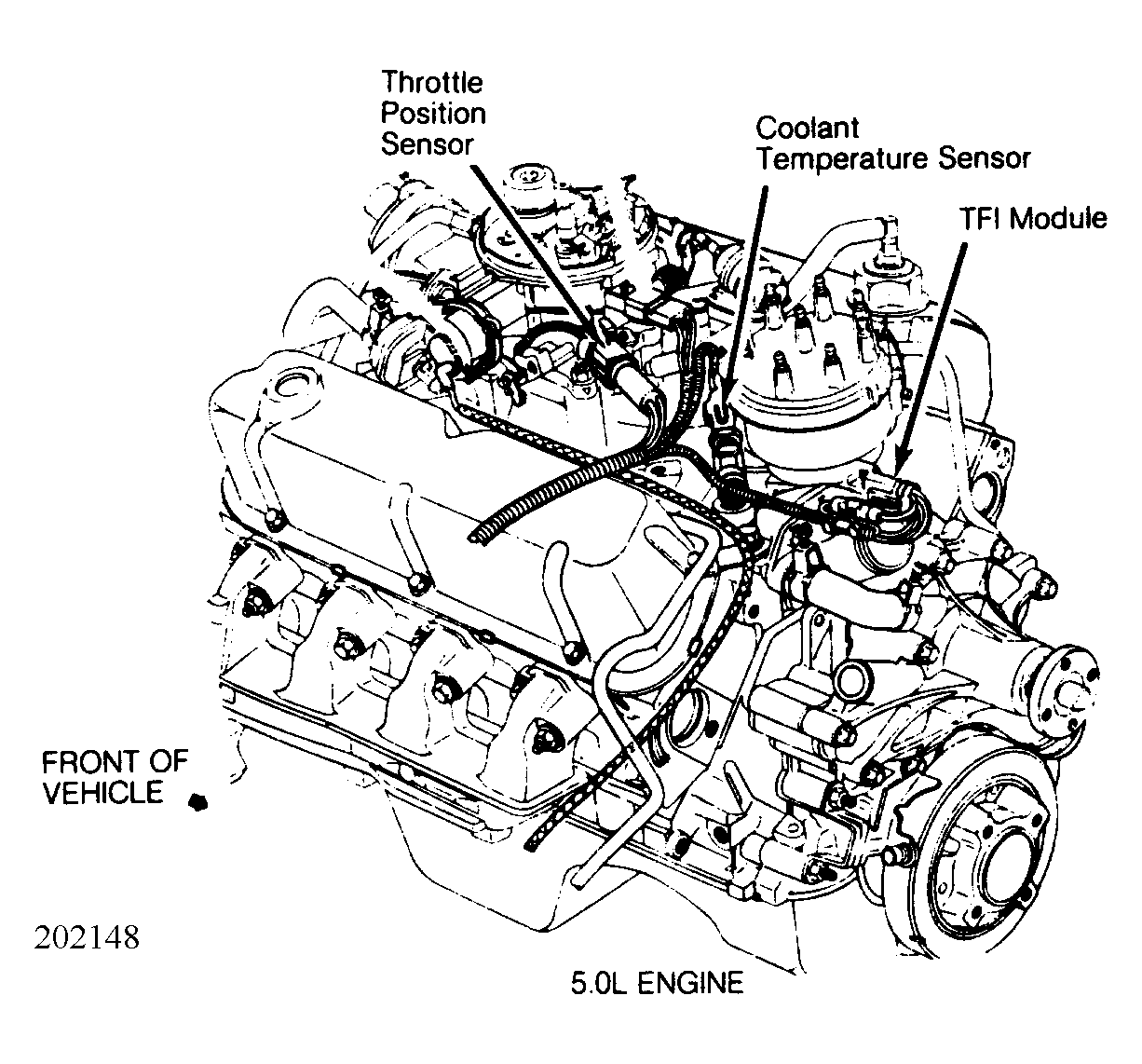

| Except 3.8L | Mounted on base of distributor. See Figure . | |
