Engine Performance
>>
System
>>
EFC System
>>
Wiring Diagrams
Wiring Diagrams

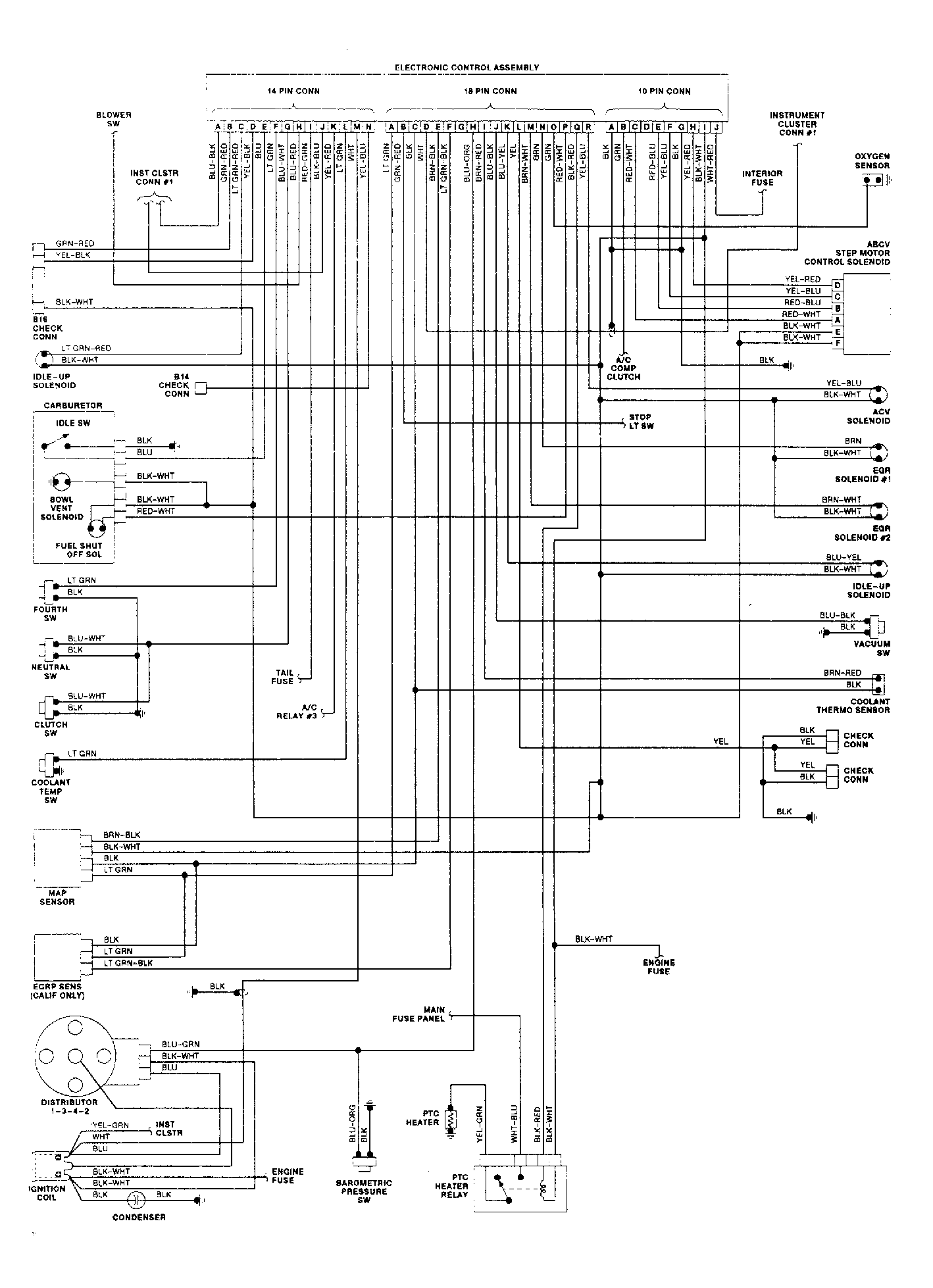

Fig 1: Wiring Schematic EFC System
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
