Wiring Diagrams

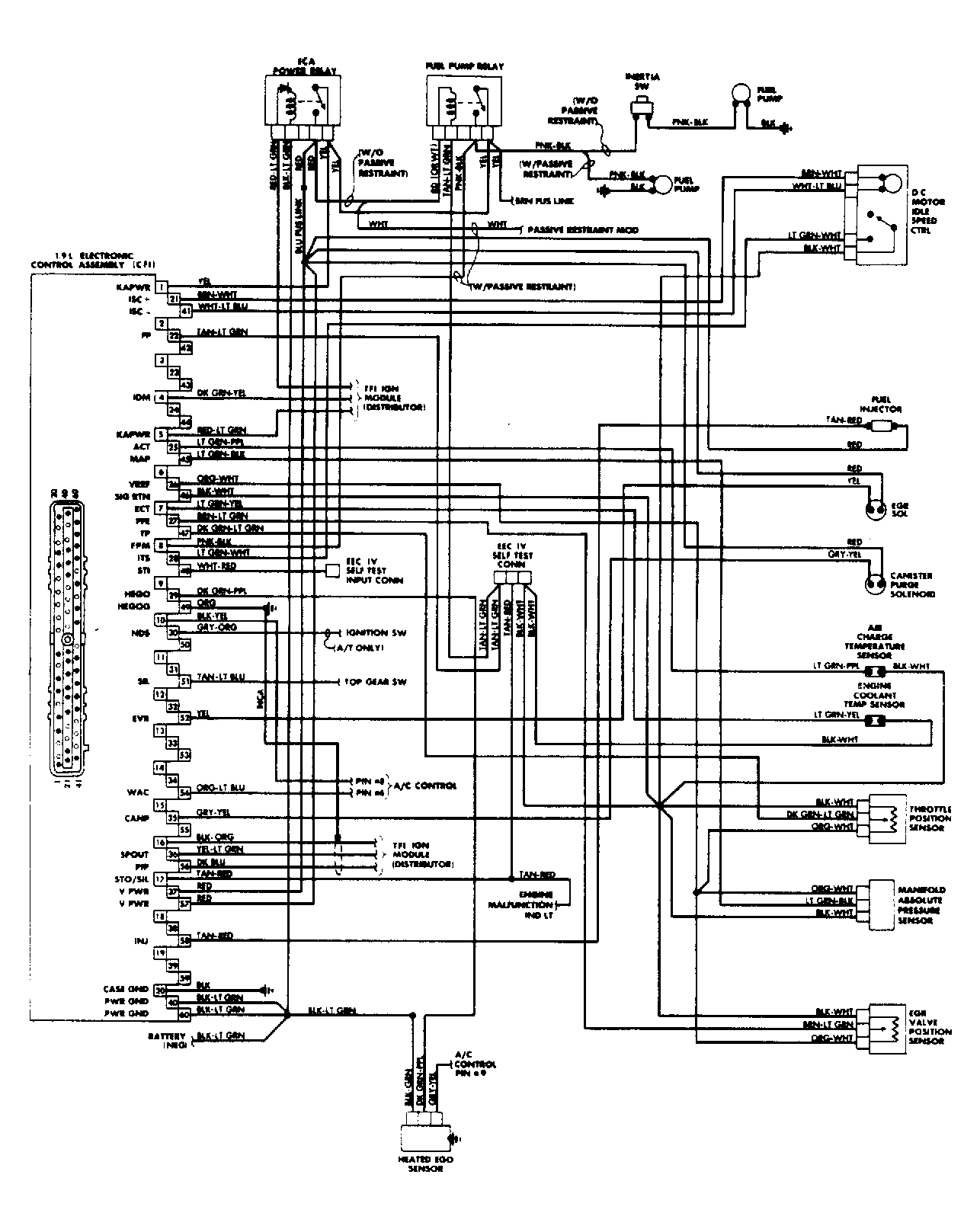

Fig 1: 1.9L CFI EEC-IV Wiring Diagram

G54829

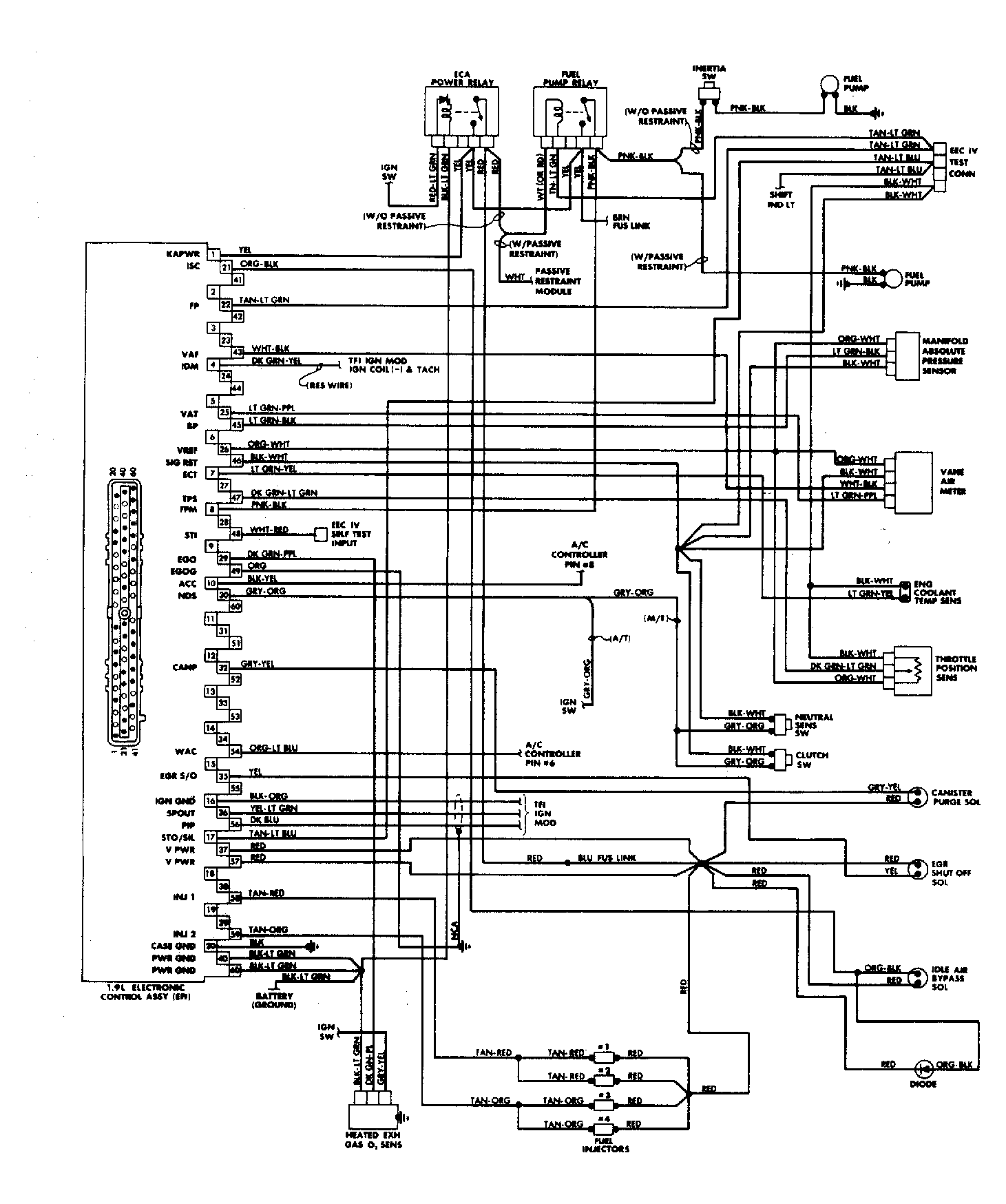

Fig 2: 1.9L MPFI EEC-IV Wiring Diagram

G54830
