Wiring Diagrams

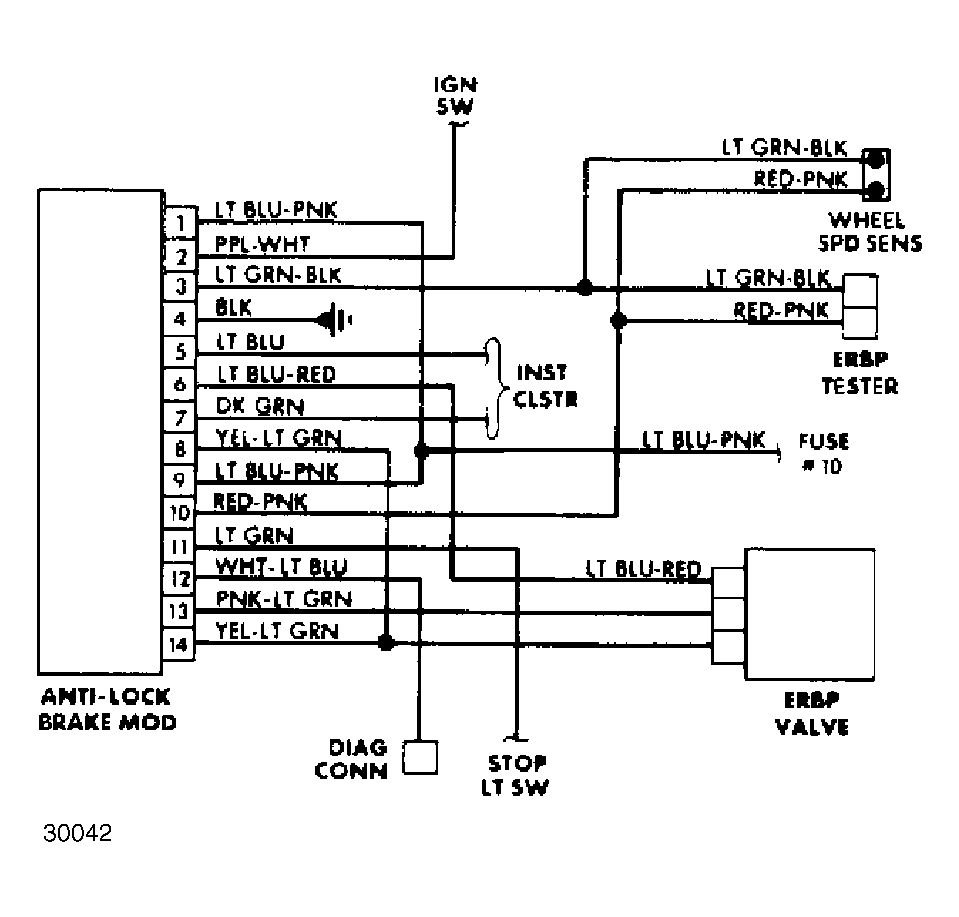

Fig 1: Bronco II RABS Wiring Diagram

G30042

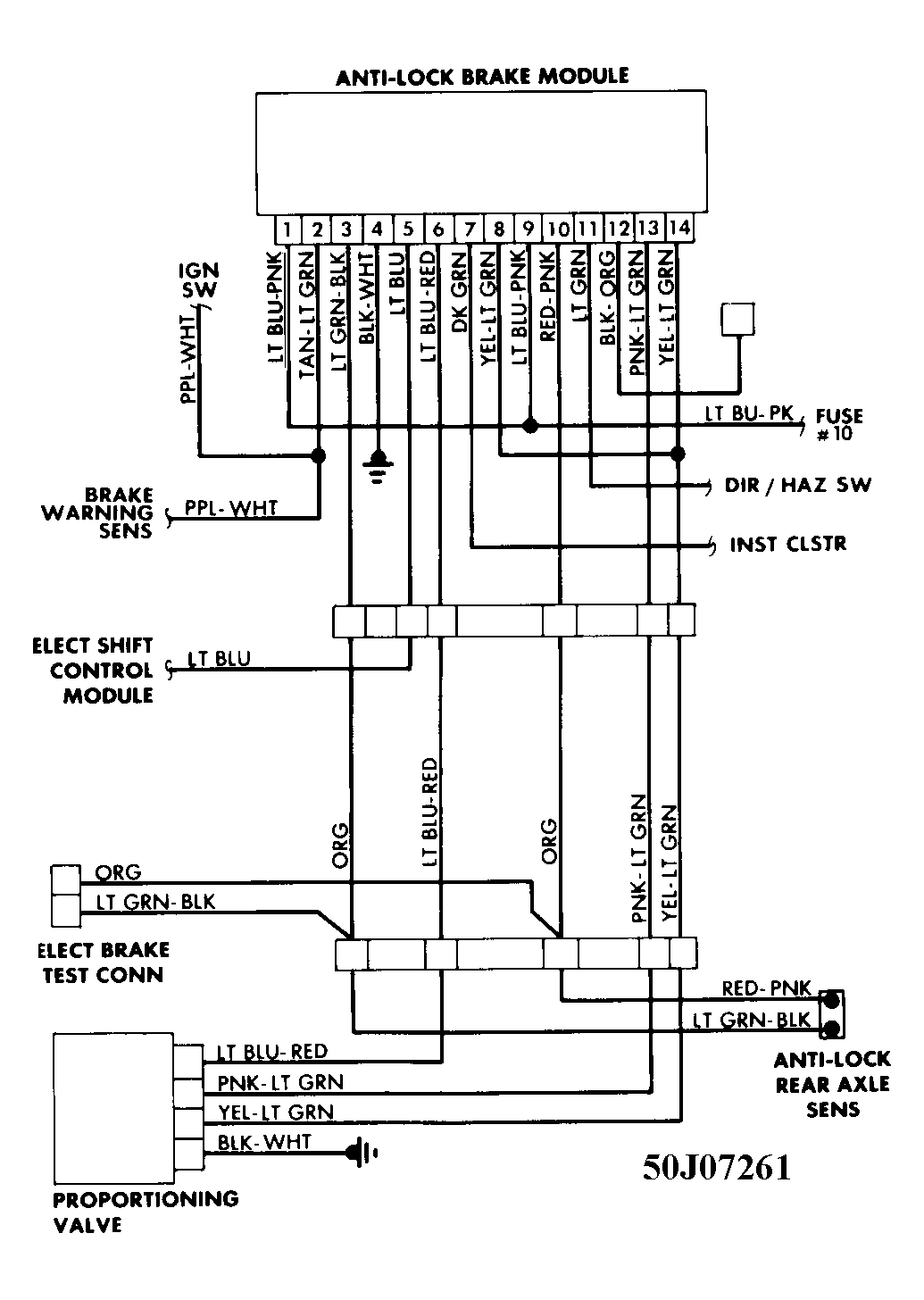

Fig 2: Bronco & F Series RABS Wiring Diagram

G50J07261
