Tune-Up - 4-CYL: Adjustments: Distributor

All models use Thick Film Integrated (TFI-IV) ignition systems. The TFI-IV system uses a small module attached to the distributor body.

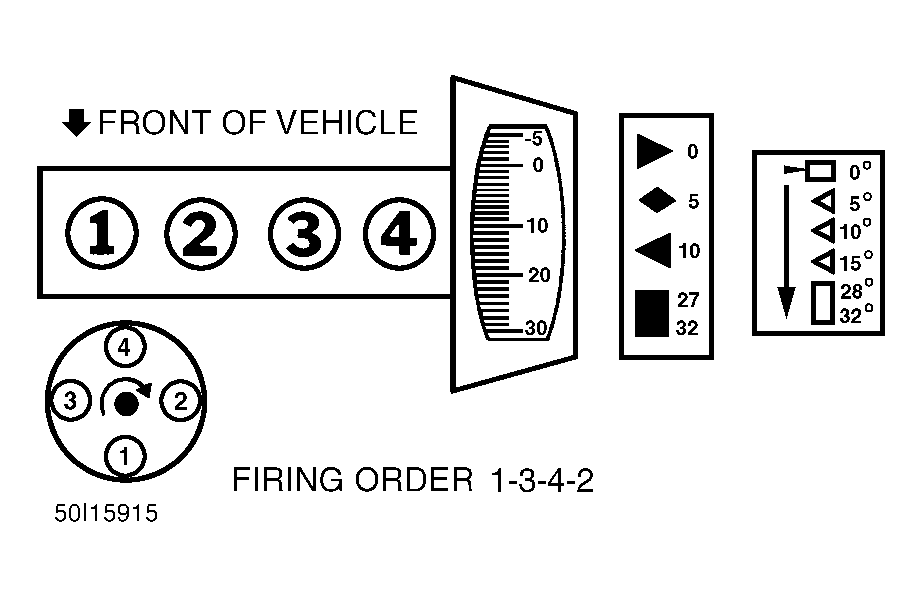

Fig 1: 1.9L Firing Order & Timing Marks

Fig 2: 2.3L MPFI Firing Order & Timing Marks

Fig 3: 2.3L & 2.5L CFI HSC Firing Order & Timing Marks
