Control Units

CONTROL UNITS LOCATION

Component Location
A/C Cooling Fan Control Unit On shake brace, below steering column.

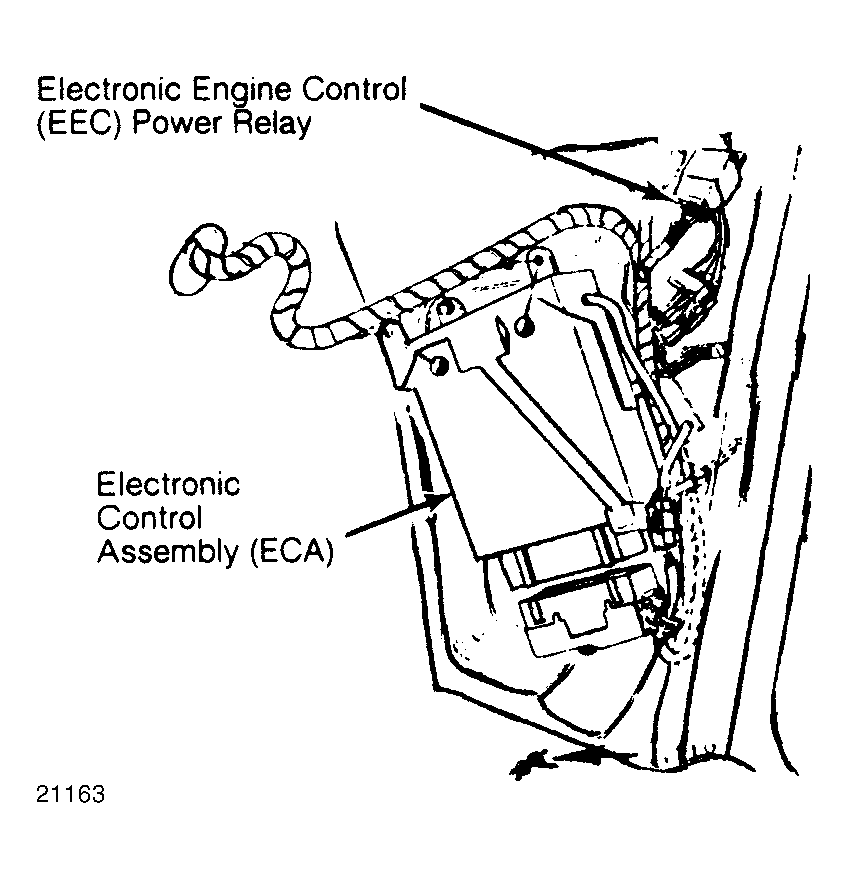

Electronic Control Assembly (ECA) Behind right kick panel. See Figure.
Speed Control Amplifier At left cowl area. See Figure.
