Home >> Ford >> 1987 >> Escort GT >> Repair and Diagnosis (Single Page) >> Restraints >> Passive Restraints >> Automatic Seat Belts >> Testing >> Notes

Automatic Seat Belts: Testing: Notes

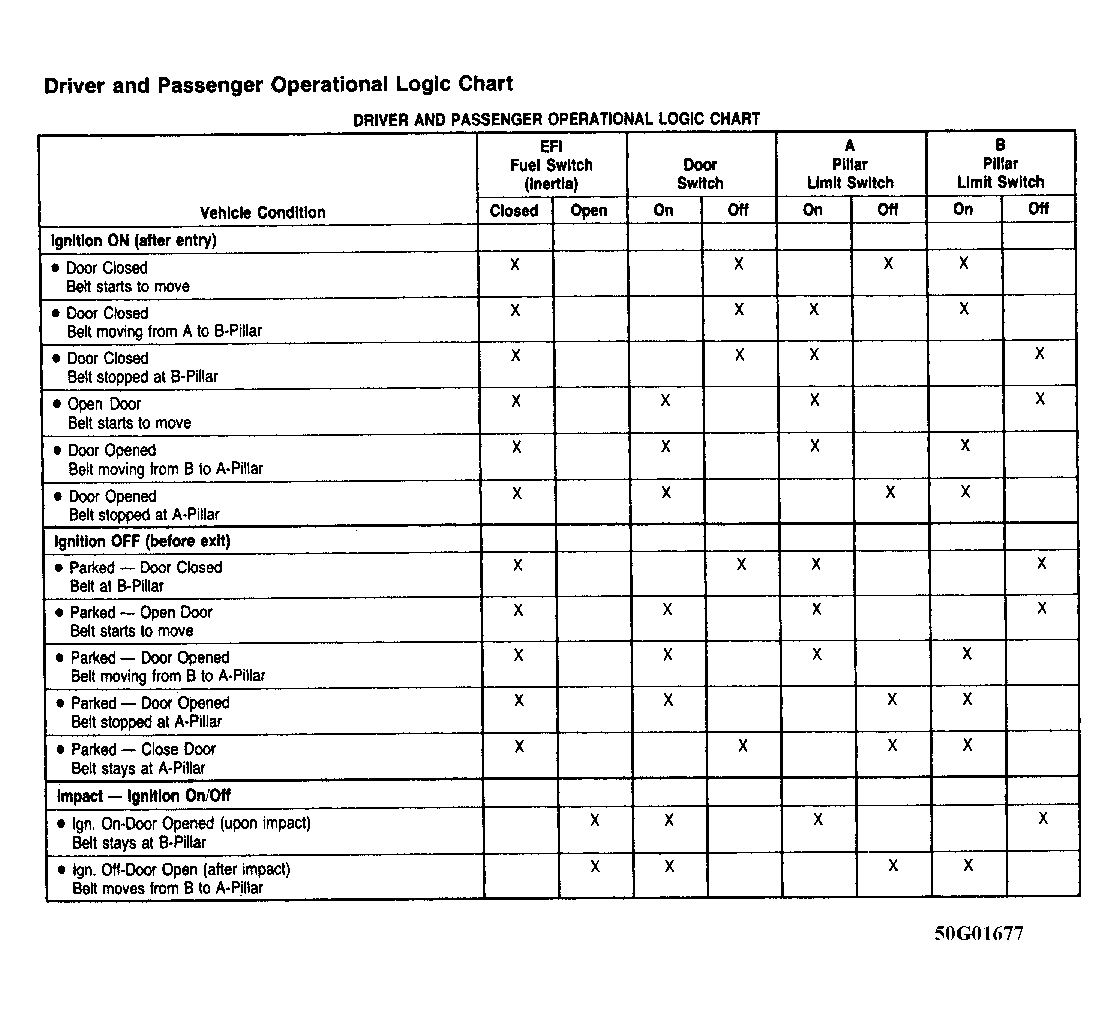

Fig 1: Driver & Passenger Operational and Logic Chart

G50G01677

Courtesy of FORD MOTOR CO.
