Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Module | Behind left center side of dash. |
| Electronic Control Assembly (ECA) | On left kick panel. |

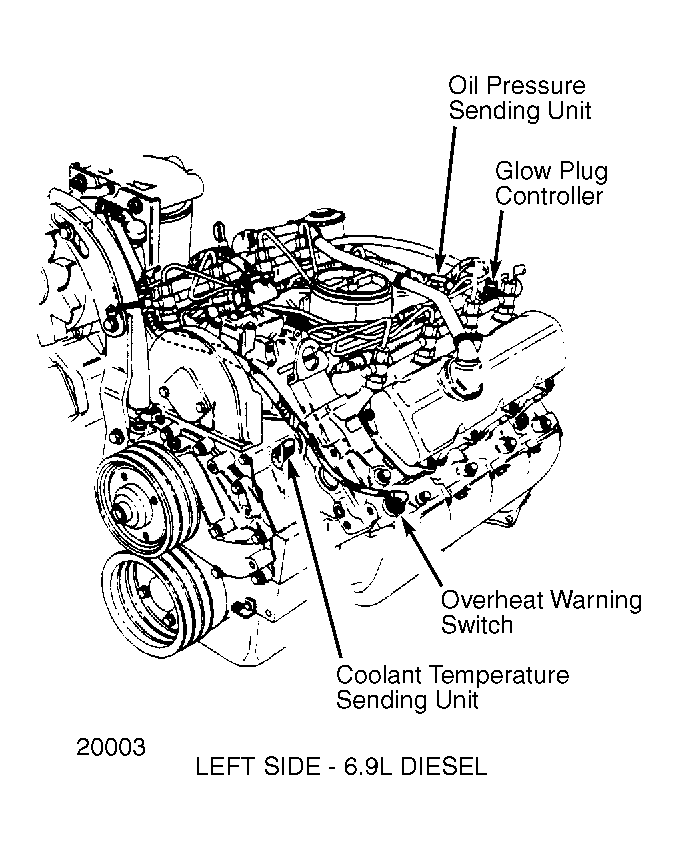

| Glow Plug Controller (Diesel) | On rear top left side of engine. See Figure. |
| Throttle Kicker Module | Under left side of instrument panel. |
| Throttle Position Module | On left front side of carburetor. See Figure. |
