Control Valve Housing: Reassembly

  1. Coat new tube seats with petroleum jelly. Install them in housing. Install bearing with metal side covering rollers facing outward. Press bearing into housing.
  2. Dip new oil seal in power steering fluid. Place seal in housing with metal side out. Drive seal into housing until outer edge does not quite clear snap ring groove.
  3. Install snap ring in housing. Place dust seal in housing with dished rubber side out. Drive into place until seal is located behind undercut in input shaft.

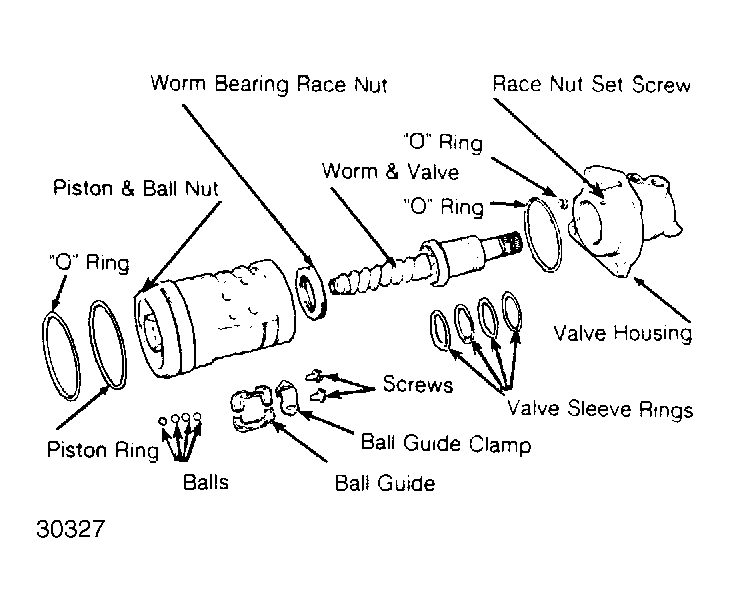

Fig 1: Exploded View of Ball Nut & Valve Housing
G30327Courtesy of FORD MOTOR CO.
