Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| A/C-Heater Blower Motor Resistors | On A/C-heater housing near motor. | |
| A/C-Heater In-Line Diode | On left front fender apron near starter relay. | |
| Fuse Block | Under left side of dashboard. | |
| Fusible Links | ||
| A, B, C, L, P, R, & W | At starter relay. | |
| D & E | On left front fender apron. | |
| M | At EEC power relay. | |
| X | Near bulkhead connector on left front fender apron. | |
| Rear Wiper Circuit Breaker | Under dashboard on steering column support. | |

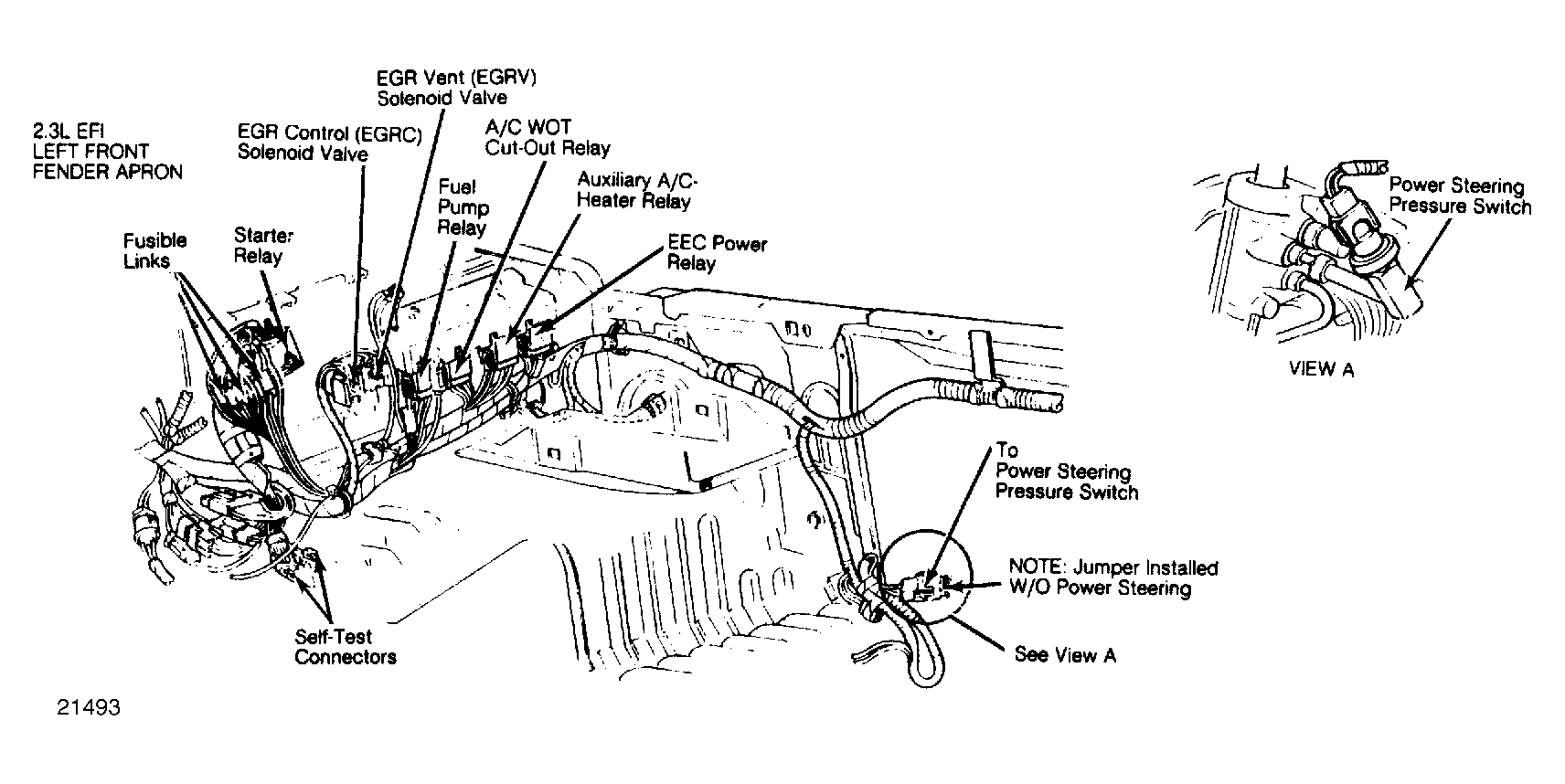

| Self-Test Connectors | On rear of left front fender apron. See Figure. | |
| Speed Control Amplifier | Under dashboard below steering column. | |
| Speed Control Servo | On left front fender apron. | |
| Windshield Wiper Interval Governor | Under dashboard on left kick panel. | |
