Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Elect. Engine Control (EEC-IV) Module | Under left side of dashboard above wheelwell. |
| Illuminated Entry Module | On back of "B" pillar. |

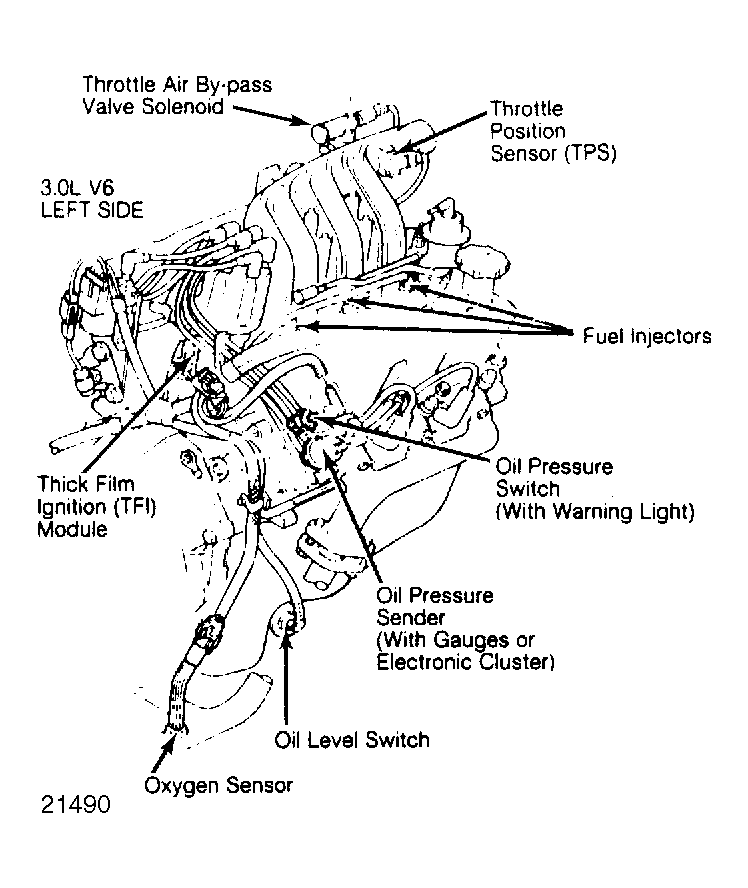

| Thick Film Ignition (TFI) Module | On bottom of distributor. See Figure. |
| Trailer Tow Relay Module | Behind left rear wheelwell. |
| Tripminder Module | Behind dashboard to right of steering column. |
