Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| A/C-Heater Blower Resistors | On heater evaporator assembly. | |
| Anti-Theft Fuses | In upper right side of trunk. | |
| Circuit Breakers | ||

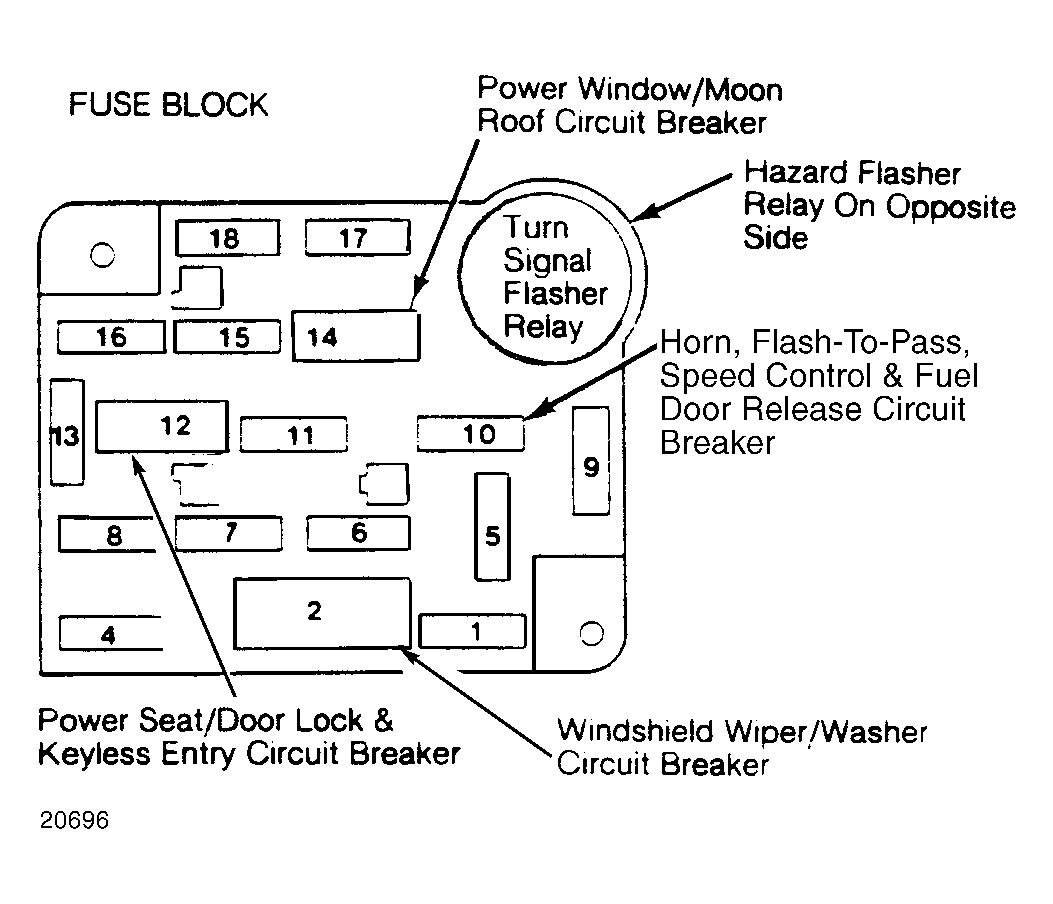

| Horn, Flash-to-Pass, Speed Control, Fuel Door Release | In cavity 10 of fuse block. See Figure. | |
| Power Seat/Door Lock Keyless Entry System | In cavity 12 of fuse block. See Figure. | |
| Power Window/Moon Roof | In cavity 14 of fuse block. See Figure. | |
| Windshield Wiper/Washer | In cavity 2 of fuse block. See Figure. | |
| Fuse Block | Under left side of dash. See Figure. | |
| Fusible Links | ||
| A (Green/14 ga.) Chrg. System | At starter relay terminal post. | |
| B (Orange/16 ga.) Power | At starter relay terminal post. | |
| C (Orange/16 ga.) Accessories | At starter relay terminal post. | |
| E (Orange/16 ga.) Rear Defroster | Near voltage regulator on right inner fender panel. | |
| F (Blue/20 ga.) Eng. Comp. Light | Attached to starter relay. | |
| J (Brown/18 ga.) Turbo EEC System | At starter relay terminal post. | |
| K (Black/16 ga.) Turbo Cooling Fan | At starter relay terminal post. | |
| L (Blue/20 ga.) EEC Power Relay | Attached to starter relay. | |
| M (Red/18 ga.) Fuel Pump | Attached to starter relay. | |
| R (Gray/12 ga.) Rear Defroster | At starter relay terminal post. | |
| Z (Green/14 ga.) Turbo Ammeter | At starter relay. | |
| Idle Speed Actuator (Turbo) | On upper right side of engine. | |
| Light Sensor Amplifier | Attached to top left underside of dash. | |

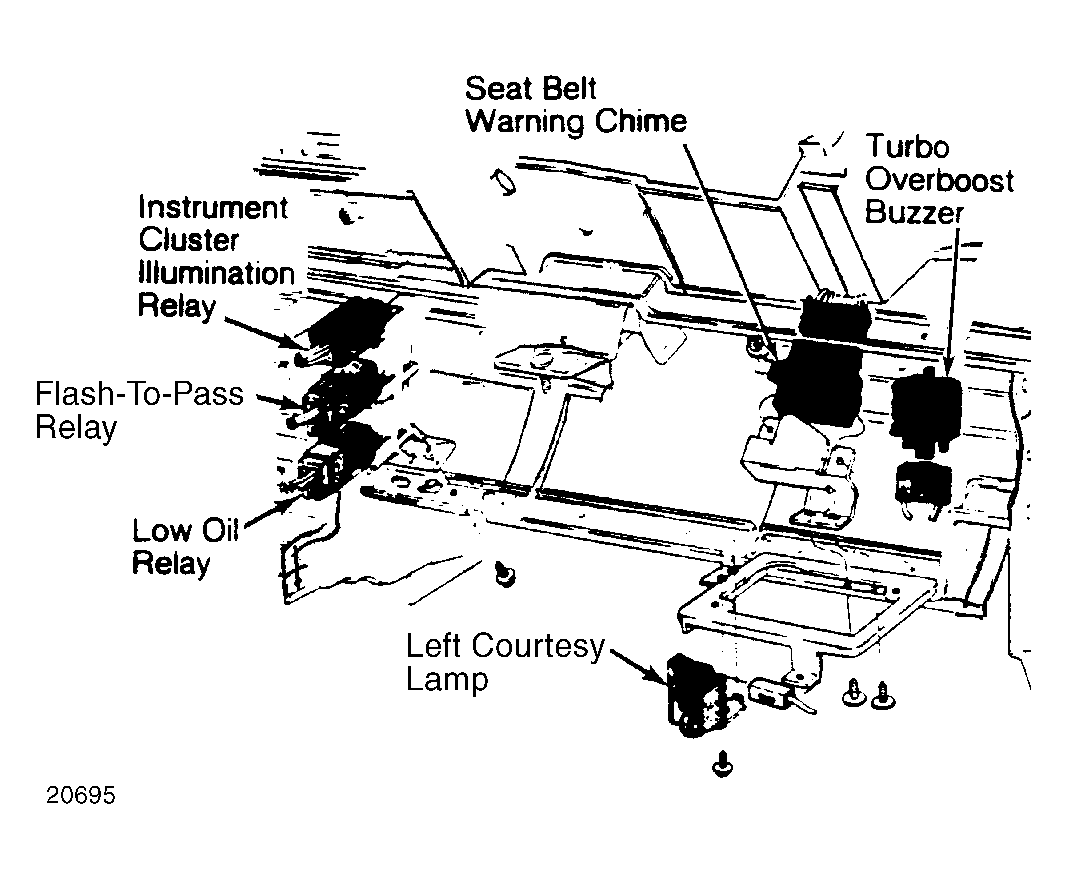

| Seat Belt Warning Chime | Behind left side of dash. See Figure. | |

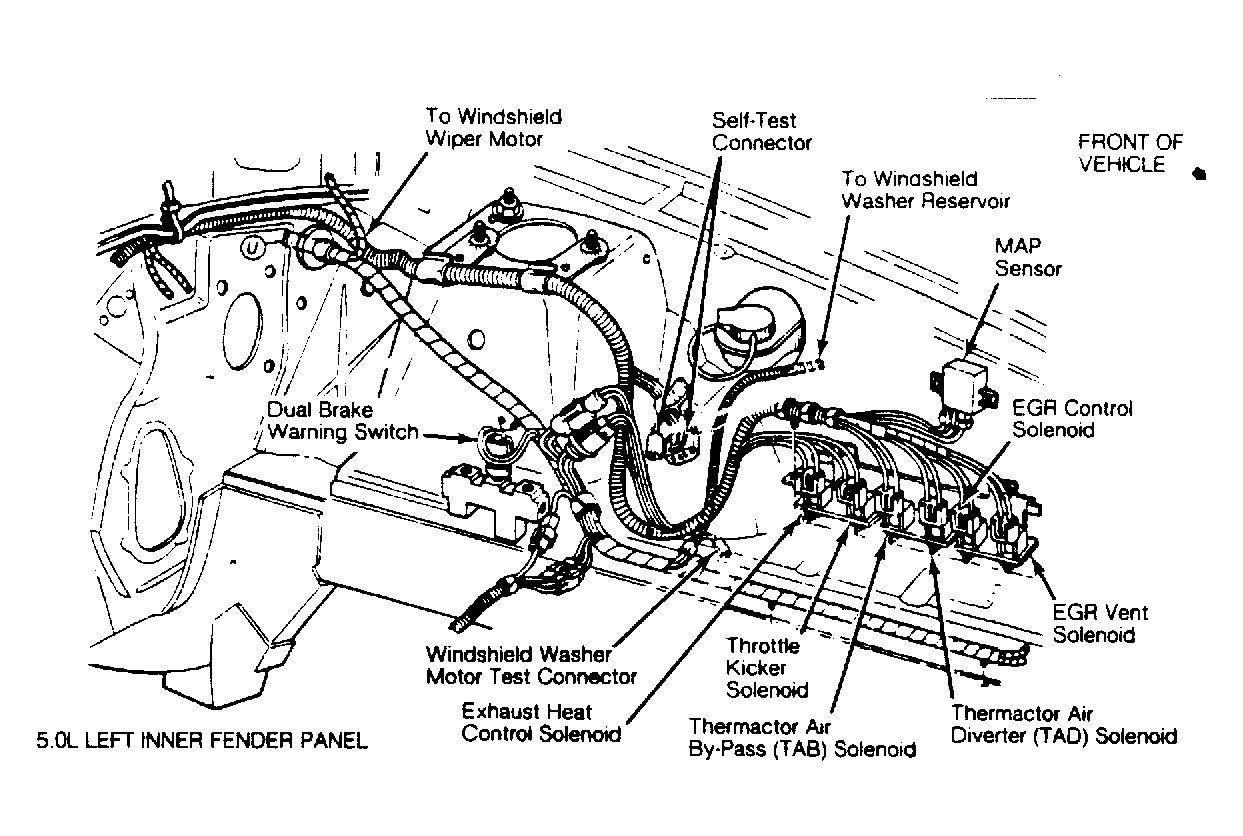

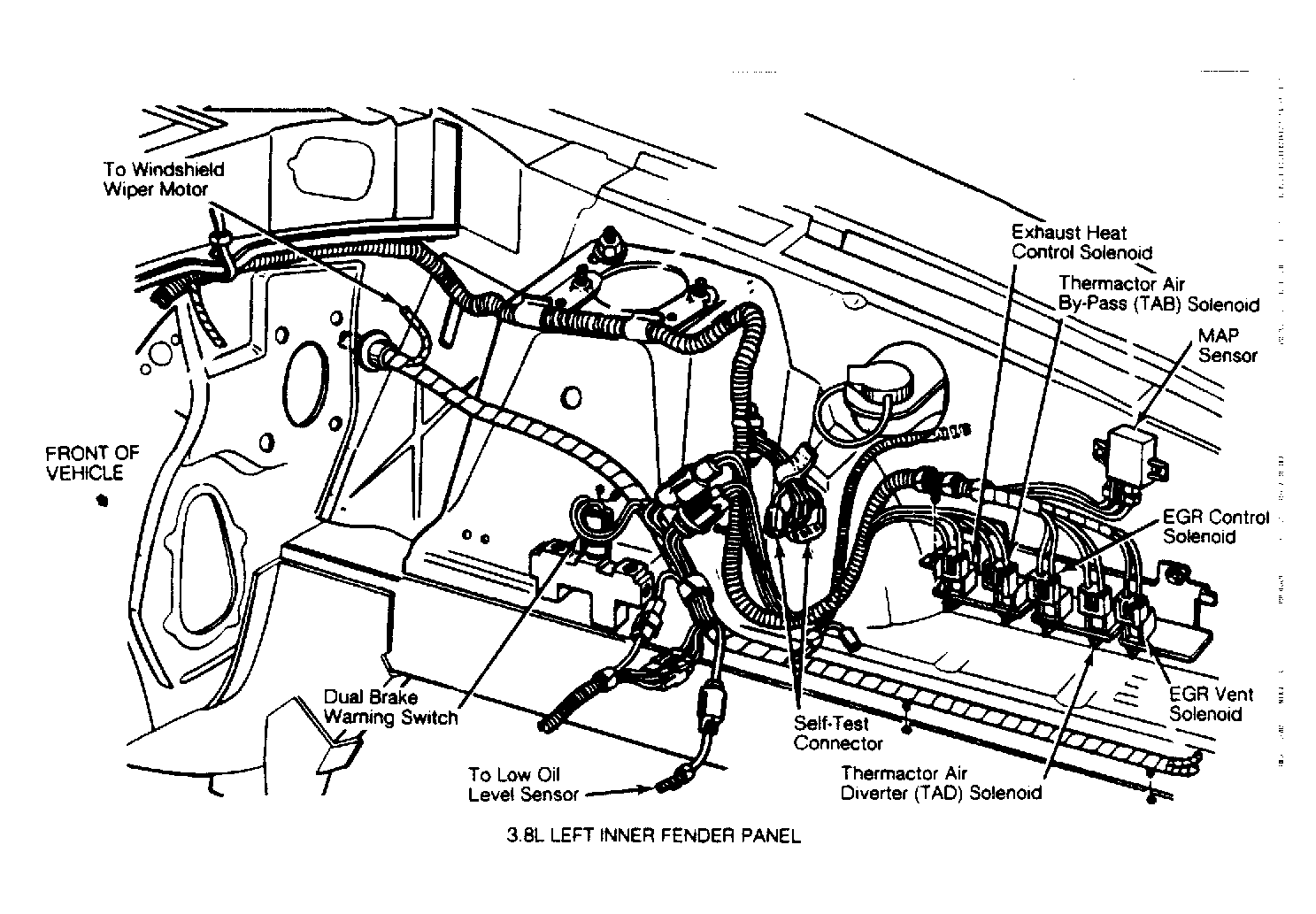

| Self-Test Connector | In front of left front shock tower. See Figure, Figure & Figure . | |
| Speed Control Amplifier | Attached to left side of dash support. | |
| Speed Control Servo | Under left front fender, at door pillar. | |
| Turbo Indicator Diodes | In wiring harness, near turbo pressure switch. | |

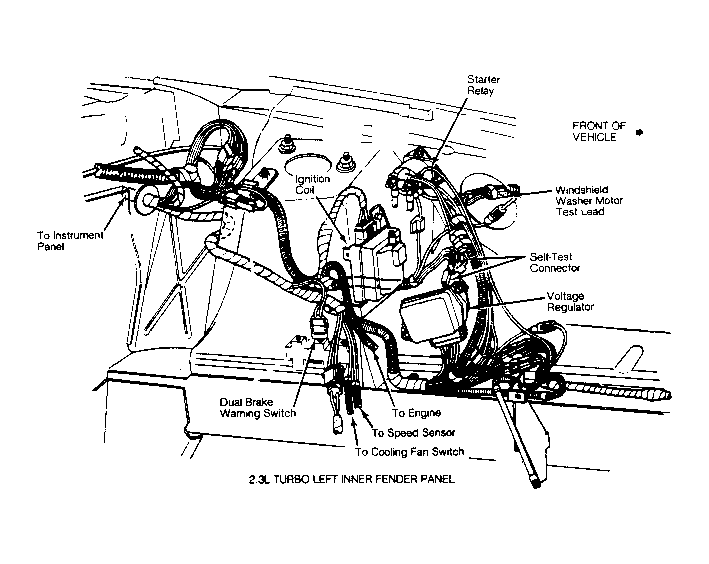

| Windshield Washer Motor Test Lead | In front of left front shock tower. See Figure & Figure . | |
| Wiper Interval Governor | Attached to bottom of instrument panel shake brace. | |
