Integral Relay Circuits

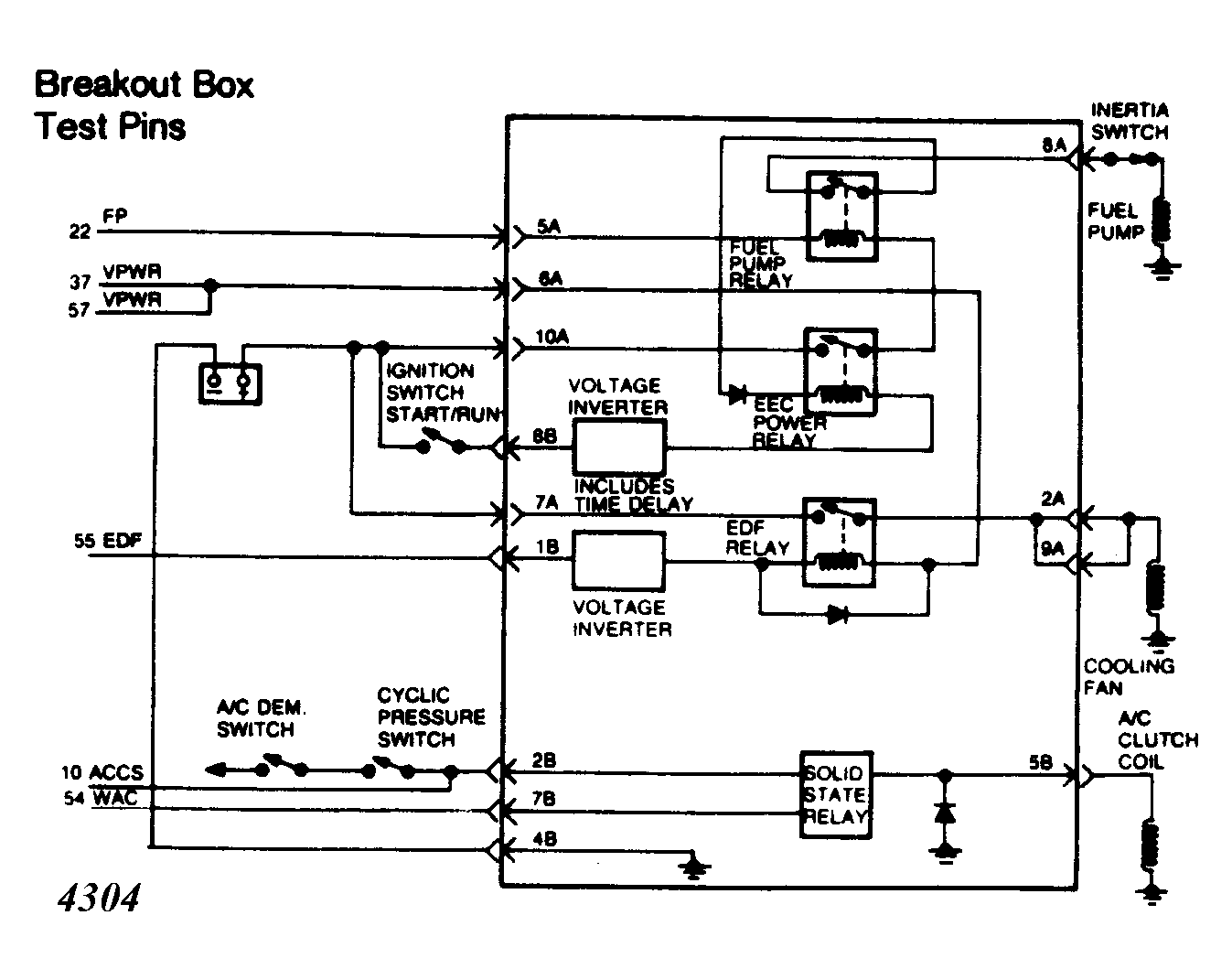

Fig 1: Integral Relay Control Module Circuits 2.5L HSC/CFI with Man. Trans.
G4304

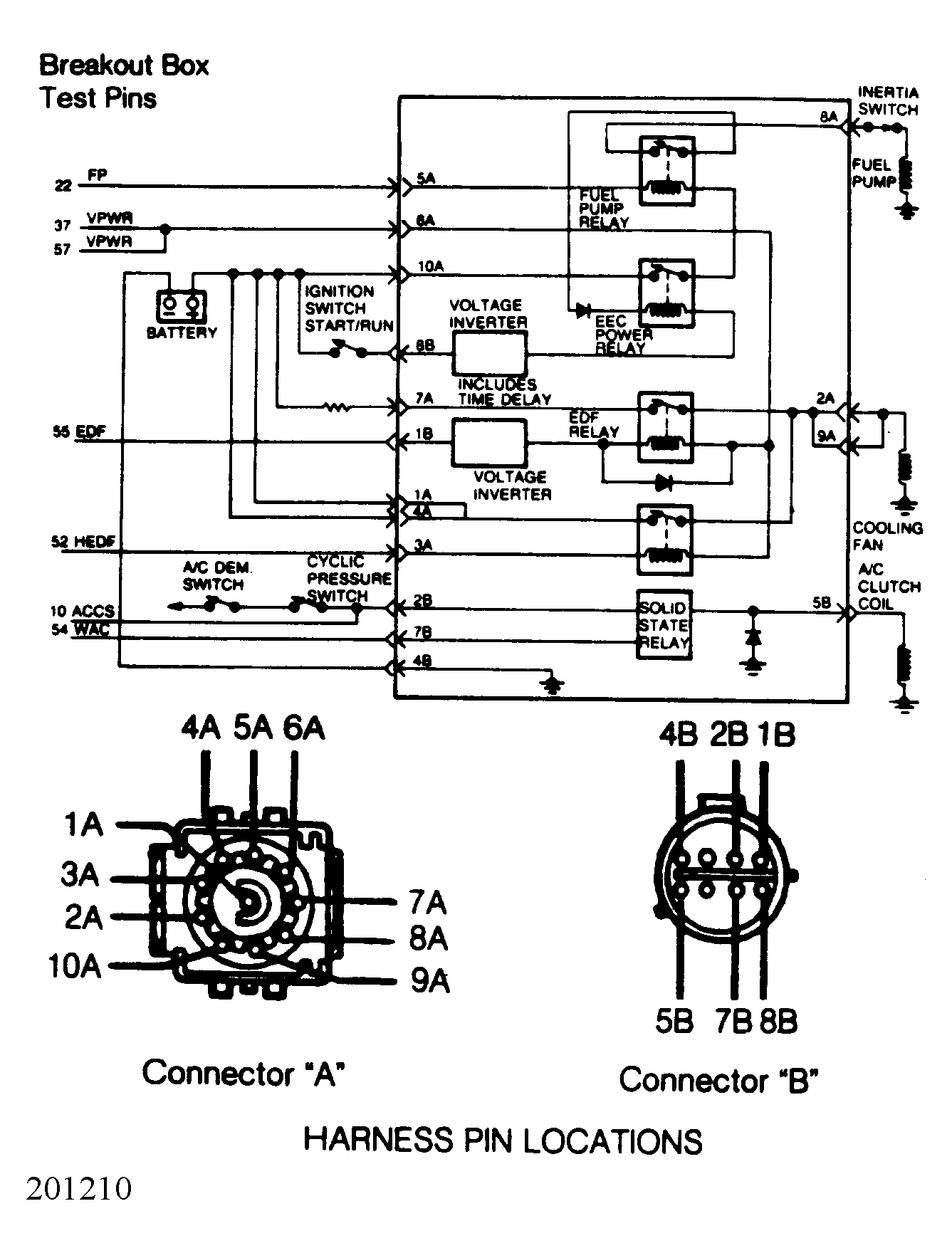

Fig 2: Integral Relay Control Module Circuits 2.5L HSC/CFI with Auto. Trans.
G201210
