Test Preparation

The engine performance diagnostic procedure tests those items which are high frequency, easy-to-diagnose problems, and progresses to the low frequency, hard-to-diagnose problems. Proper use of this procedure will provide a rapid as well as accurate diagnosis. Connect Pressure Test Kit (Rotunda 019-00002) to components shown. See Fig 1 .

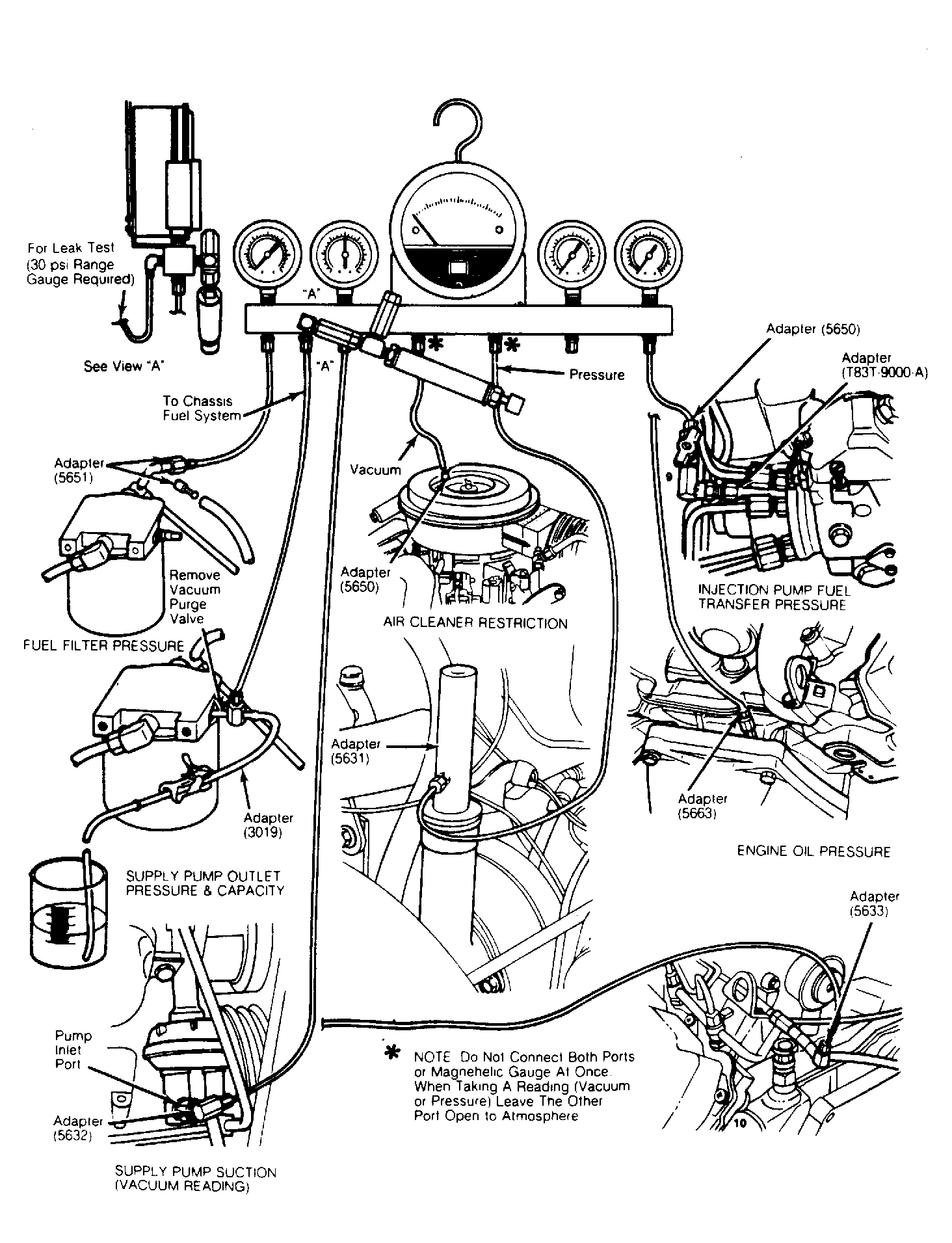

Fig 1: Engine Performance Diagnosis Pressure Test Kit Hook-Up
