Floor Jack

To raise front of vehicle, use designated front jacking point. To raise rear of vehicle, use designated rear jacking point.

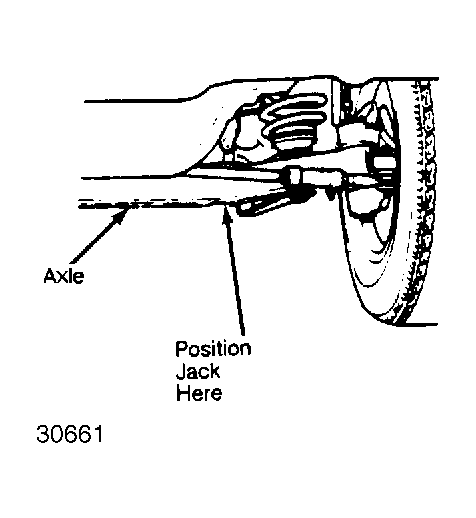

Fig 1: Front Jacking Point (Bronco & F150-350 4WD)

Fig 2: Front Jacking Point (E150)

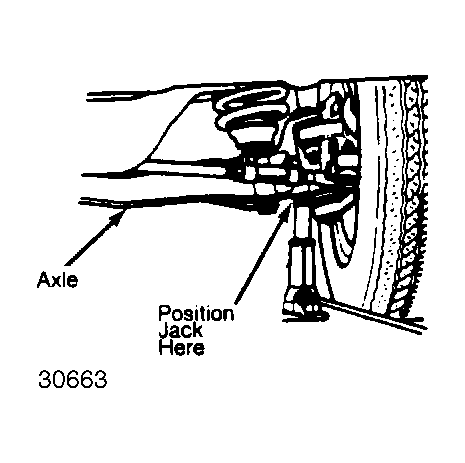

Fig 3: Front Jacking Point (E & F250-350 2WD)

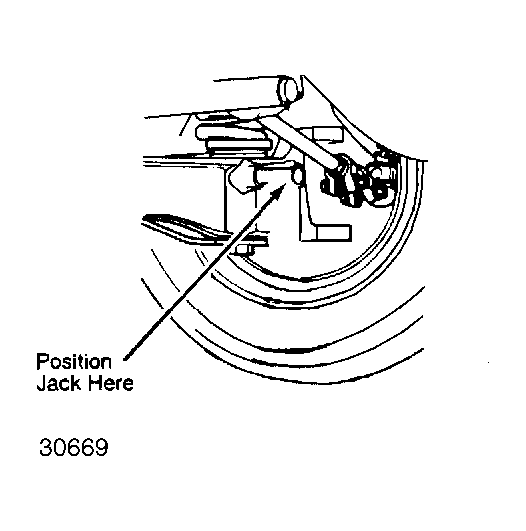

Fig 4: Rear Jacking Point (Bronco, E & F150-350 2WD & 4WD)

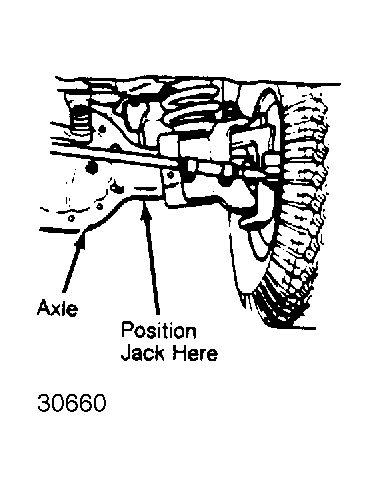

Fig 5: Front Jacking Point (Ranger 2WD)

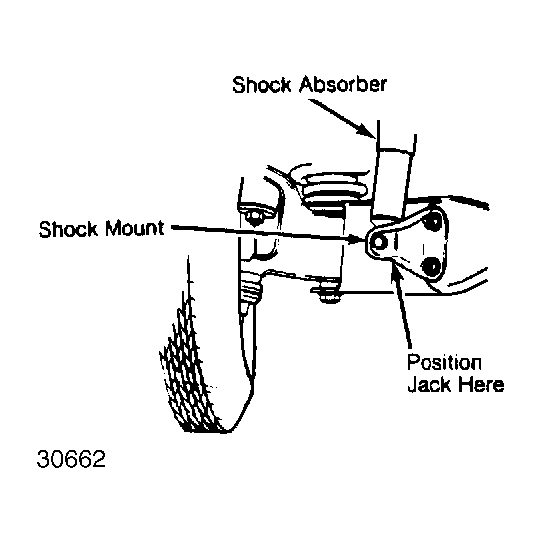

Fig 6: Front Jacking Point (Bronco II & Ranger 4WD)

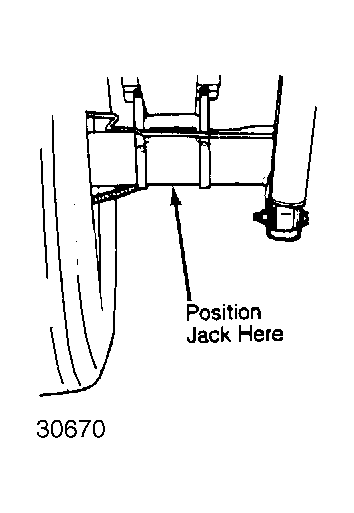

Fig 7: Rear Jacking Point (Bronco & Ranger)
