Control Cables
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1983 Mercury Zephyr, 1983 Mercury Marquis, 1983 Mercury Lynx, 1983 Mercury LN7, and 1983 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

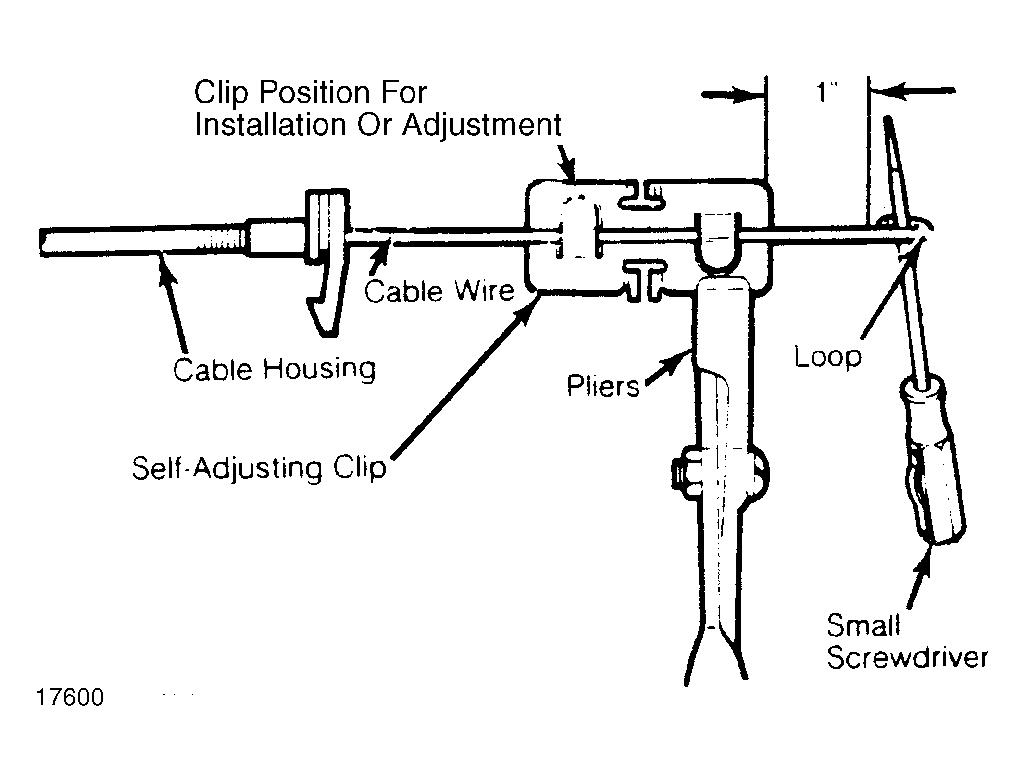

- Temperature cable and mode control cable self-adjust when levers are moved to end of slots. Adjustment is required only when a new cable is installed. Pre-set adjustment before self-adjusting the cable by inserting small screwdriver in loop (crank arm end) of cable and sliding self-adjusting clip so that it is 1" away from loop. See Fig 1.
- Install cable if removed and move lever to "WARM" or "DEF" position to position self-adjusting clip. Check for proper operation and repeat if necessary.
