Fuel Injection System - High Pressure CFI: Wiring Diagram

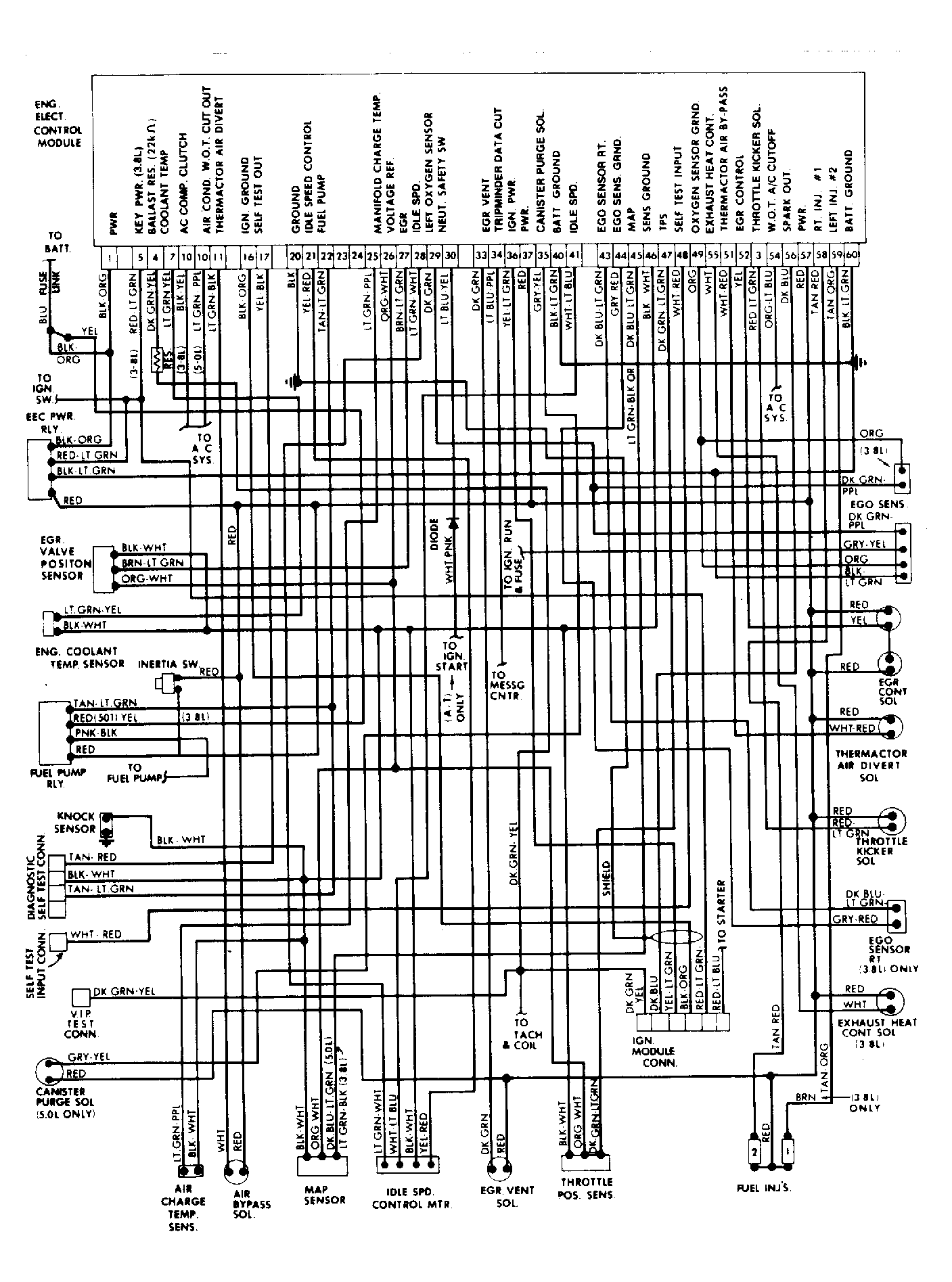

Fig 1: 3.8L and 5.0L High Pressure CFI System Wiring Diagram
