Injection Pump: Installation

To install, reverse removal procedure, noting the following:

• Use a new "O" ring on drive gear end of injection pump.
• Install injector lines AFTER pump is installed. Lines must be installed in the following order: 2-7-1-3-8-4-6-5.
• Use new "O" ring on injection pump fitting adapter.
• Purge injector lines by loosening connector 1/2 to 1 turn and cranking engine until a solid stream of fuel flows from connector.
• Check and adjust injection pump timing as necessary.

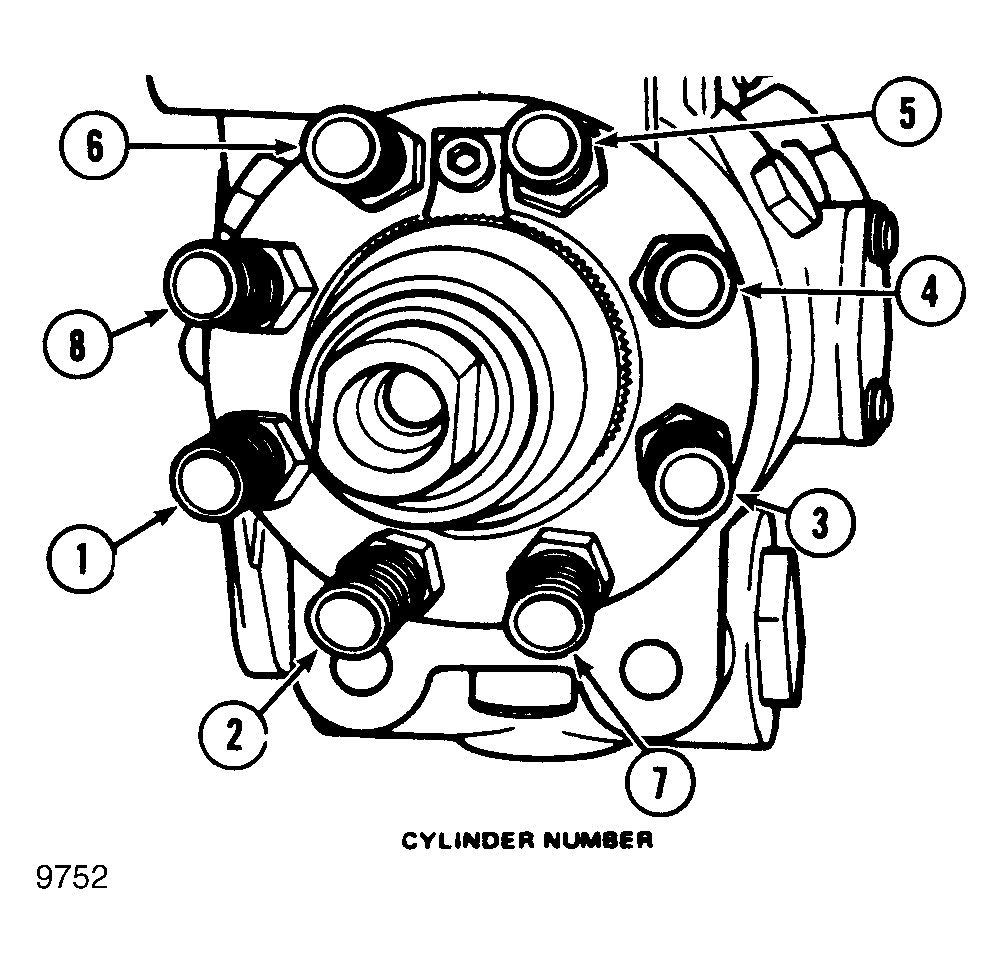

Fig 1: Injection Pump Line Sequence Remove and install injector lines in proper sequence.
