Shift Linkage: Notes

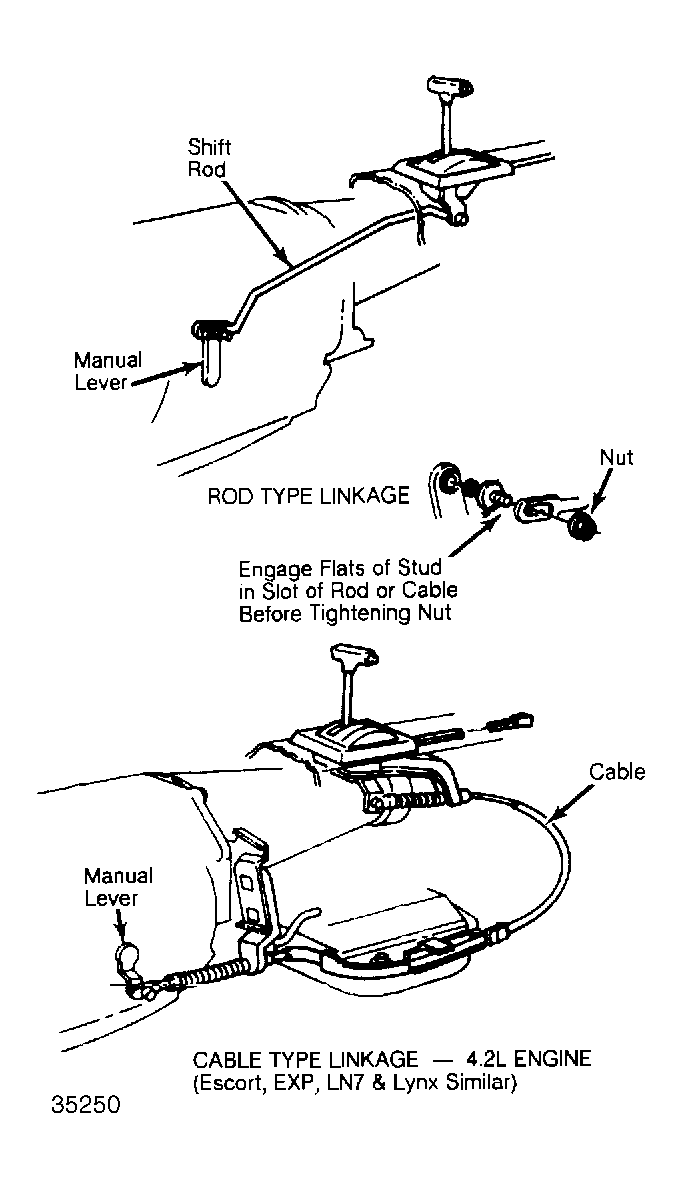

Fig 1: Console (Floor) Shift Linkage Adjustment Must hold shift rod/cable against drive detent for proper adjustment.

G35250
