Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Component Locations (1 Of 27)

G19125

Fig 2: Component Locations (2 Of 27)

G19130

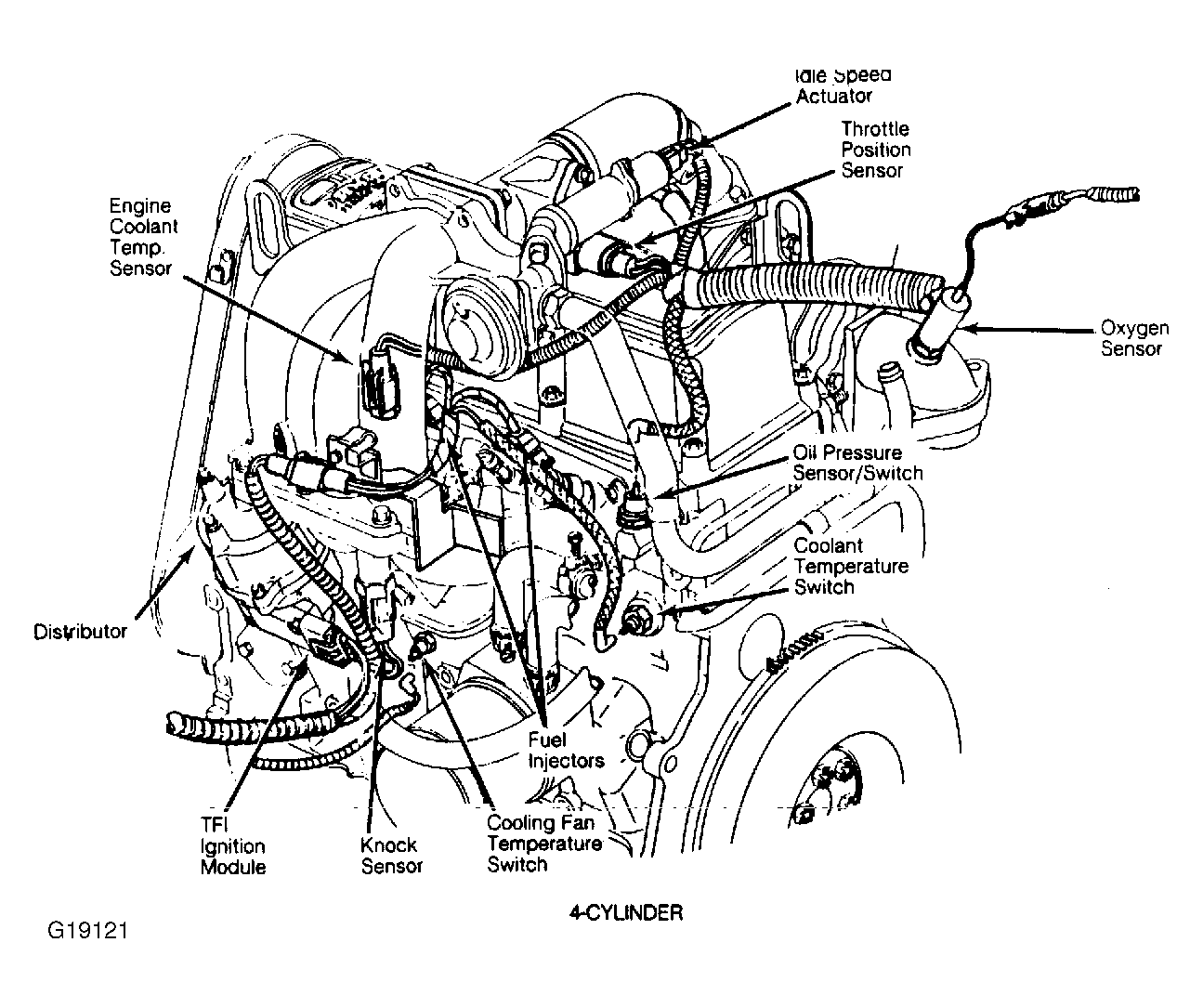

Fig 3: Component Locations (3 Of 27)

G19121

Fig 4: Component Locations (4 Of 27)

G19139

Fig 5: Component Locations (5 Of 27)

G19132

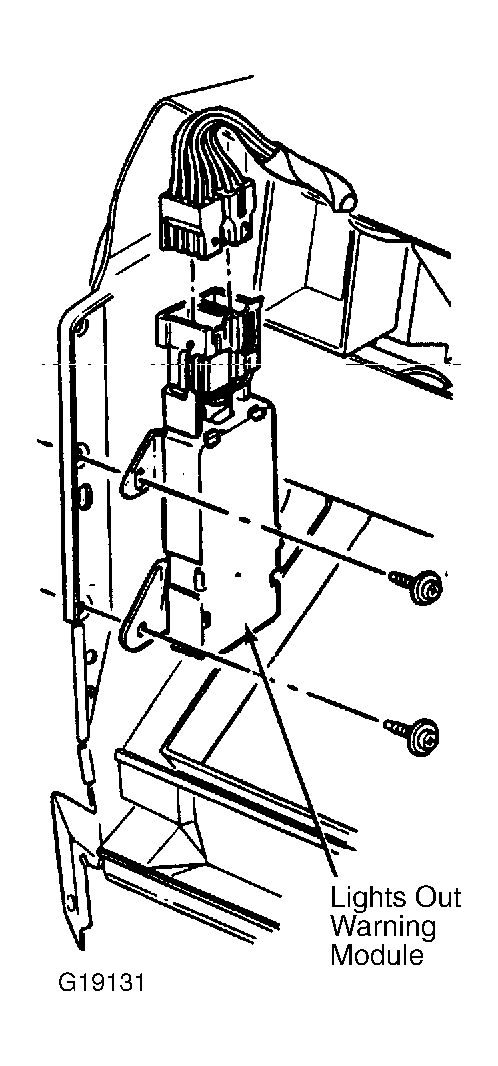

Fig 6: Component Locations (6 Of 27)

G19131

Fig 7: Component Locations (7 Of 27)

G19135

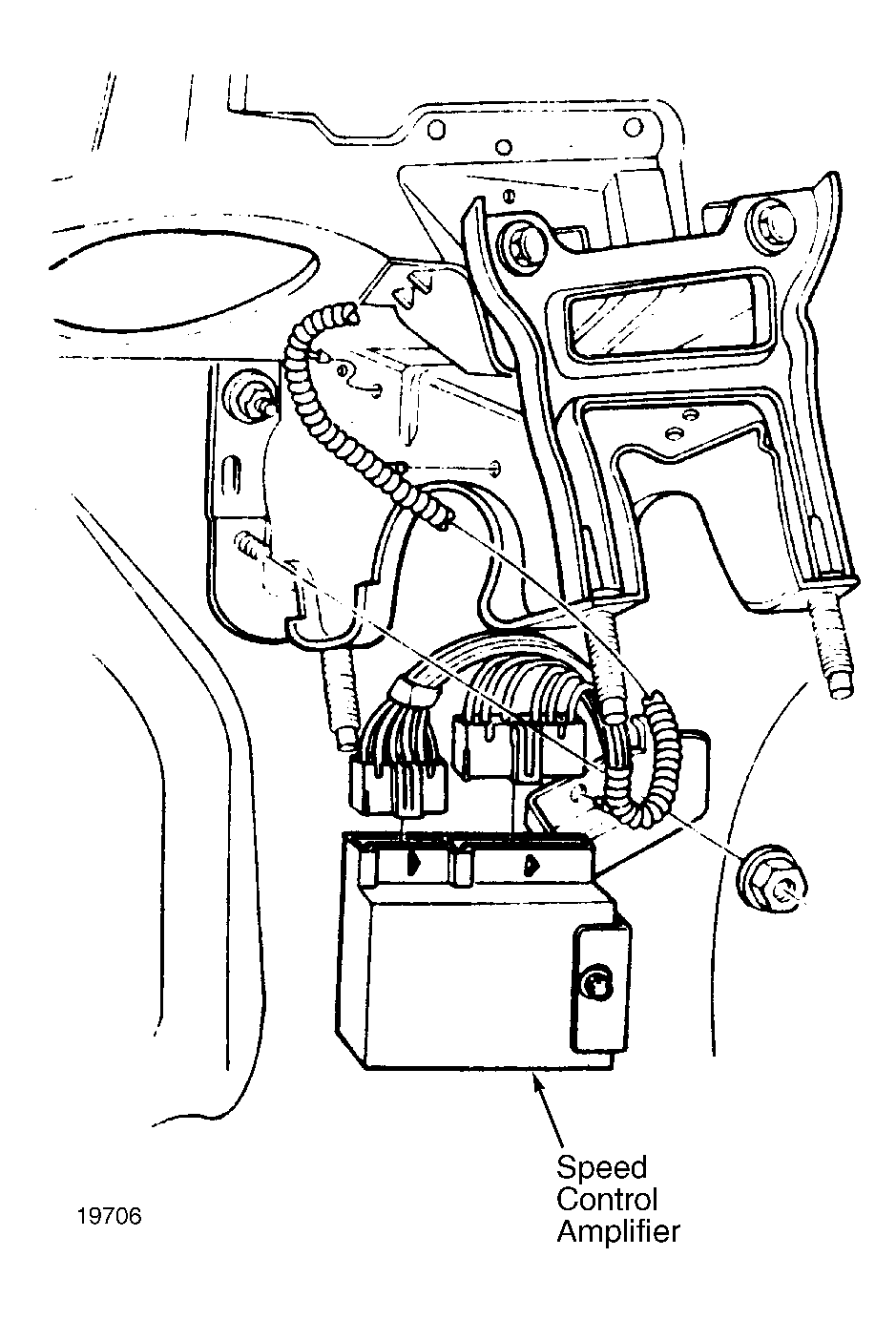

Fig 8: Component Locations (8 Of 27)

G19706

Fig 9: Component Locations (9 Of 27)

G19136

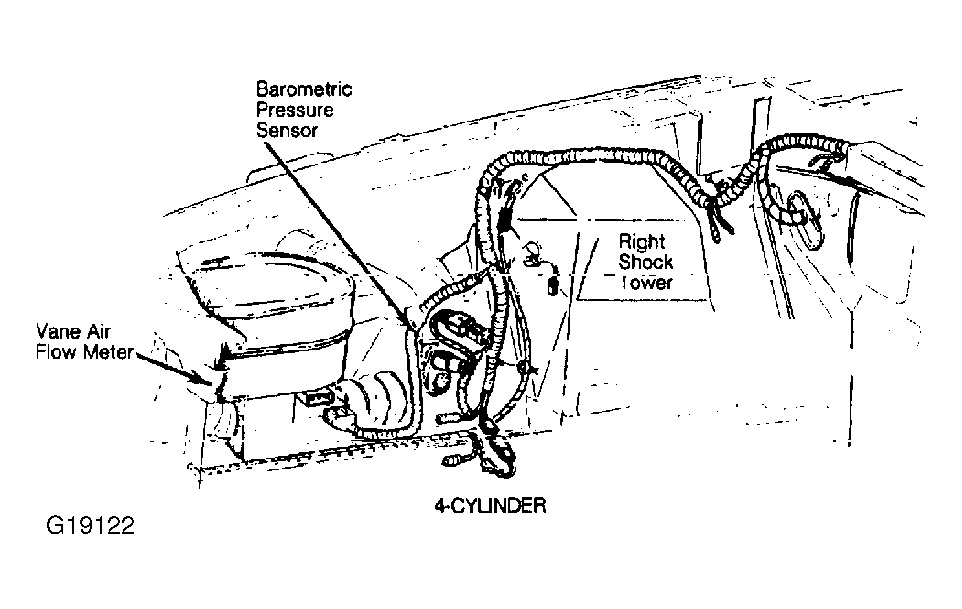

Fig 10: Component Locations (10 Of 27)

G19122

Fig 11: Component Locations (11 Of 27)

G19700

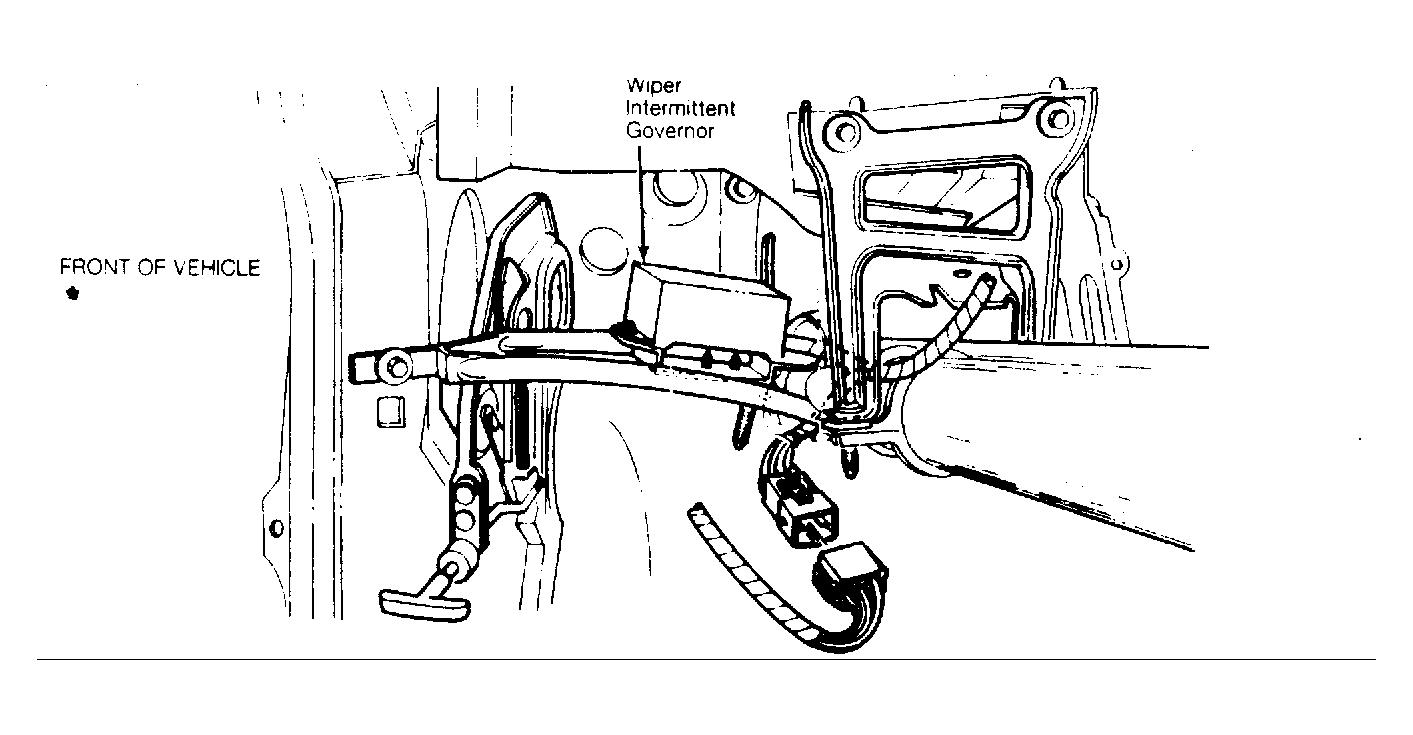

Fig 12: Component Locations (12 Of 27)

G19707

Fig 13: Component Locations (13 Of 27)

G19140

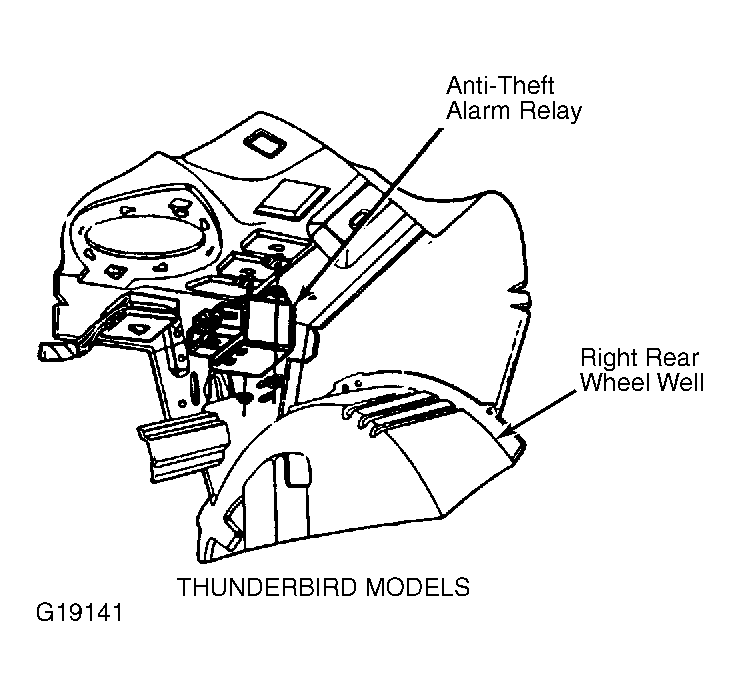

Fig 14: Component Locations (14 Of 27)

G19141

Fig 15: Component Locations (15 Of 27)

G19142

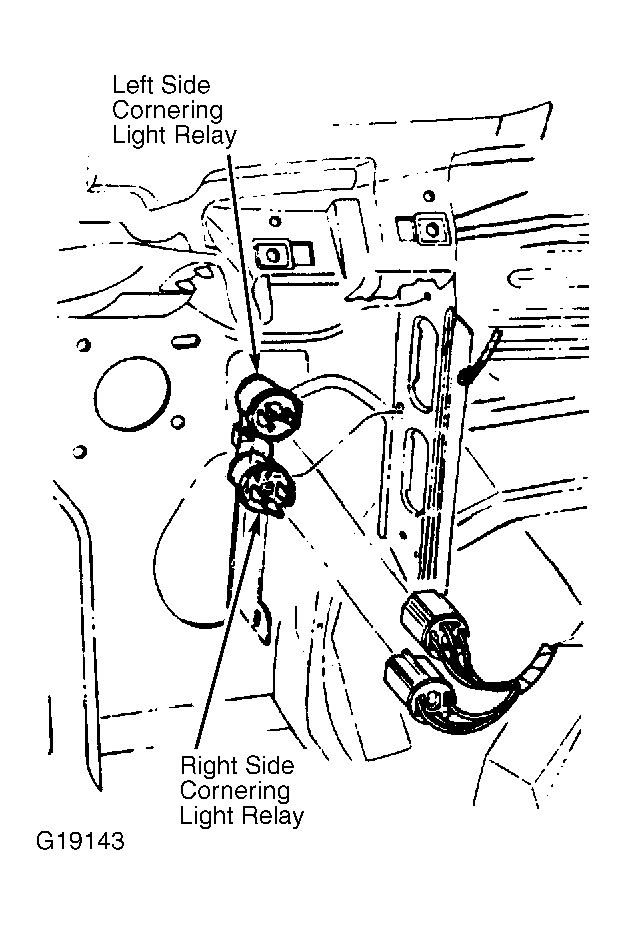

Fig 16: Component Locations (16 Of 27)

G19143

Fig 17: Component Locations (17 Of 27)

G19144

Fig 18: Component Locations (18 Of 27)

G19123

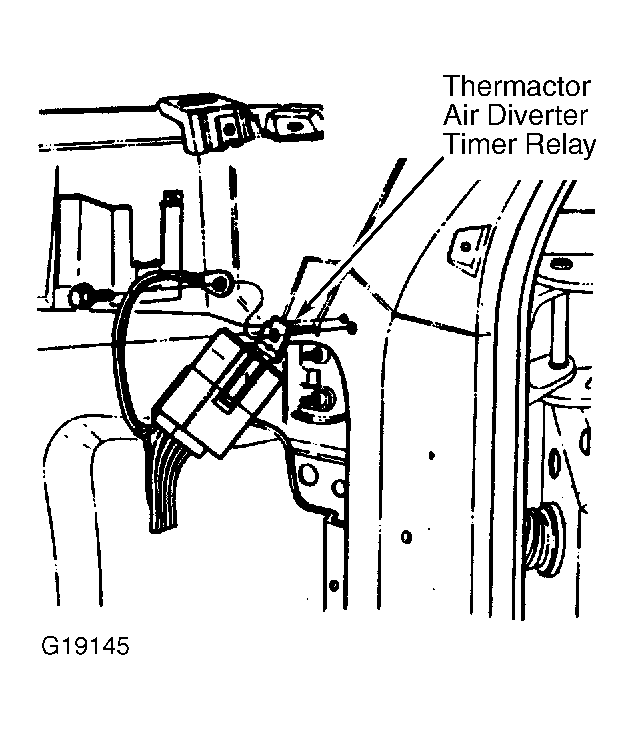

Fig 19: Component Locations (19 Of 27)

G19145

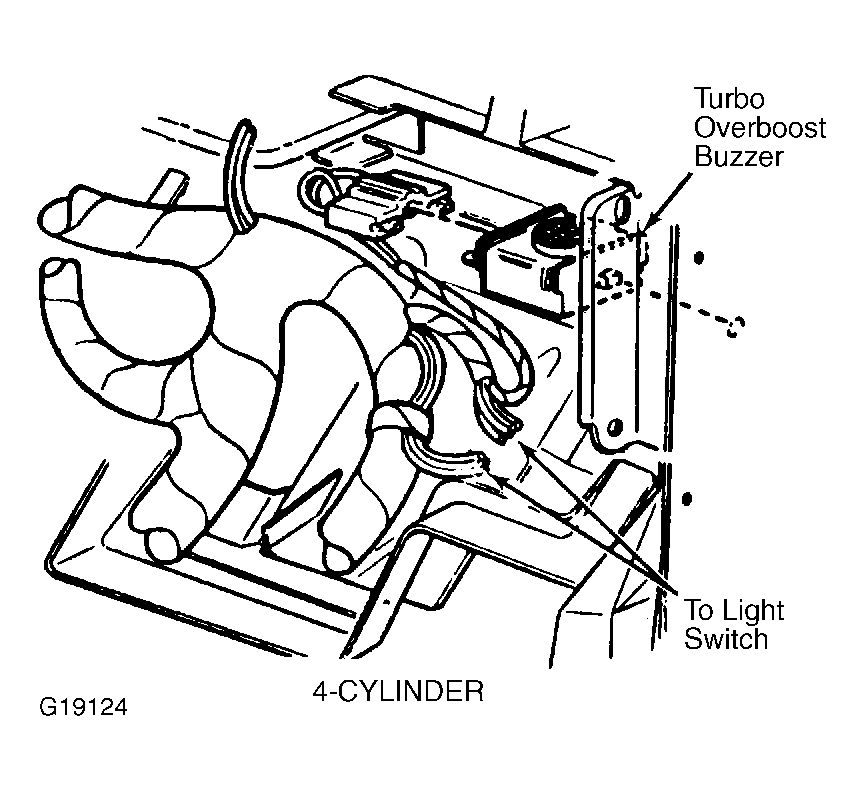

Fig 20: Component Locations (20 Of 27)

G19124

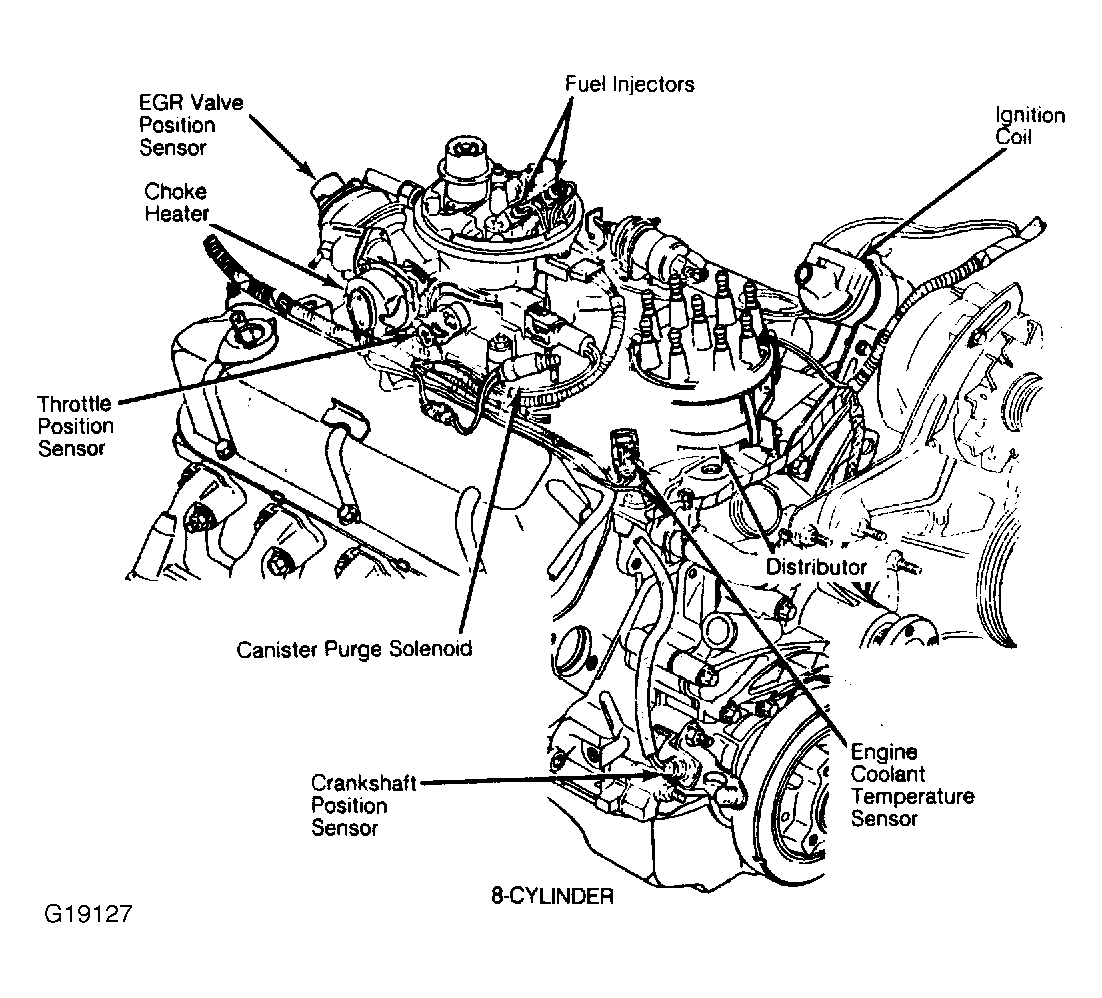

Fig 21: Component Locations (21 Of 27)

G19127

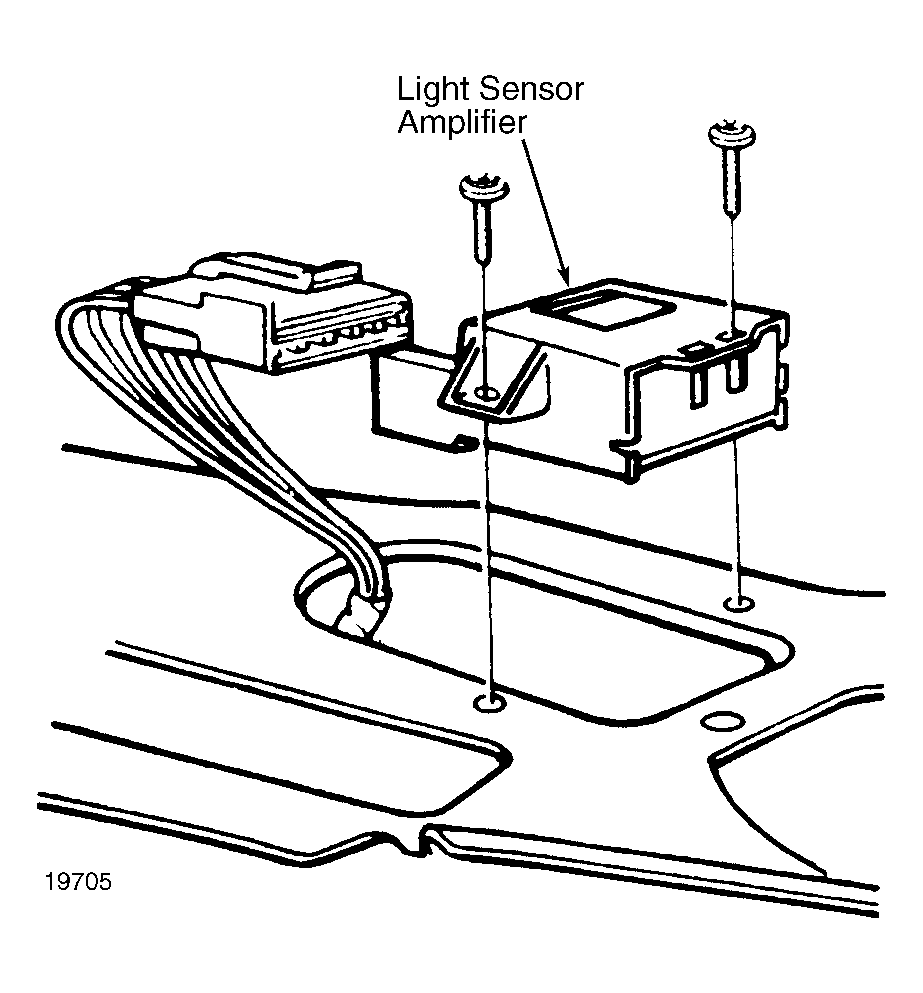

Fig 22: Component Locations (22 Of 27)

G19705

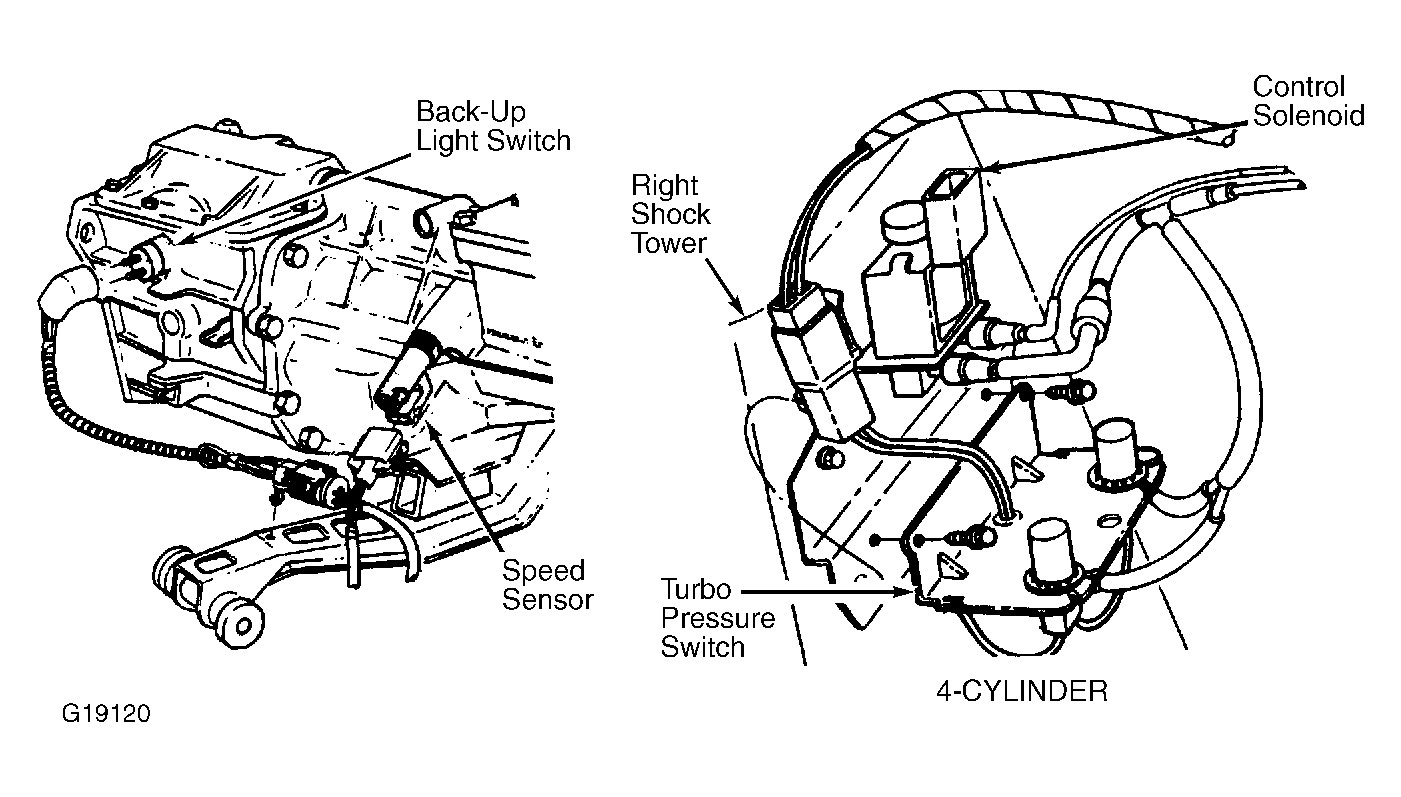

Fig 23: Component Locations (23 Of 27)

G19120

Fig 24: Component Locations (24 Of 27)

G19128

Fig 25: Component Locations (25 Of 27)

G19129

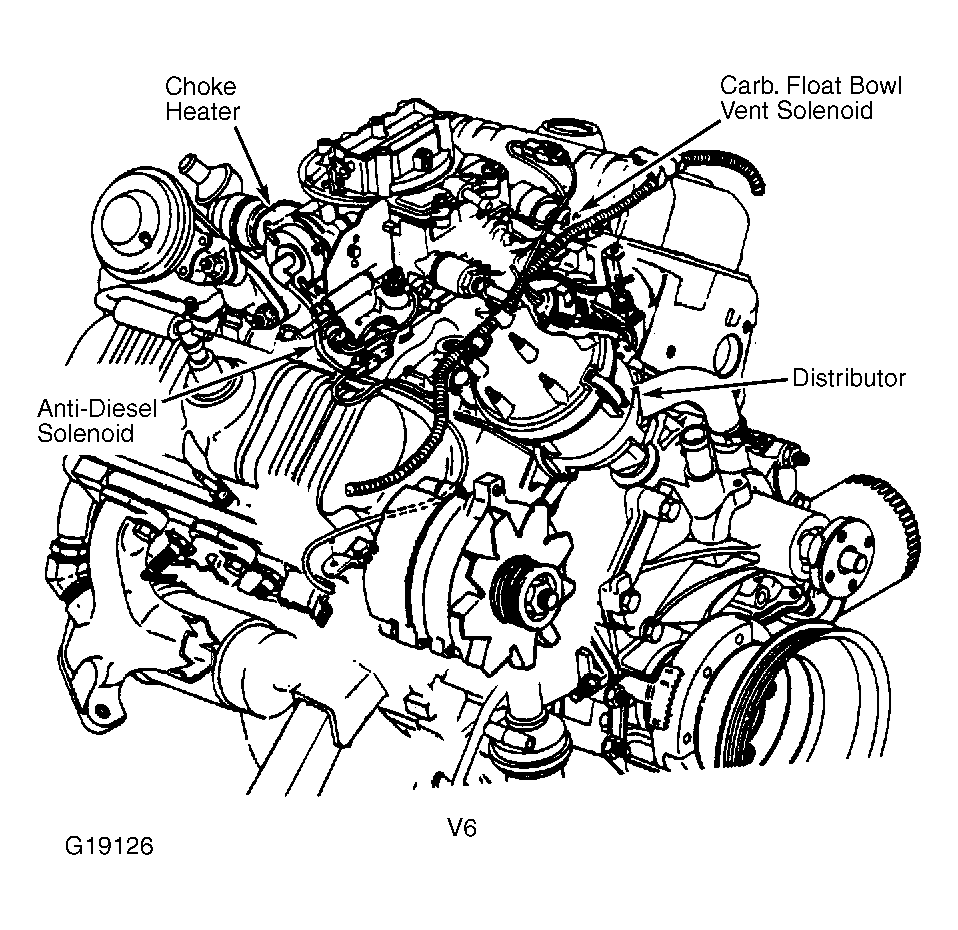

Fig 26: Component Locations (26 Of 27)

G19126

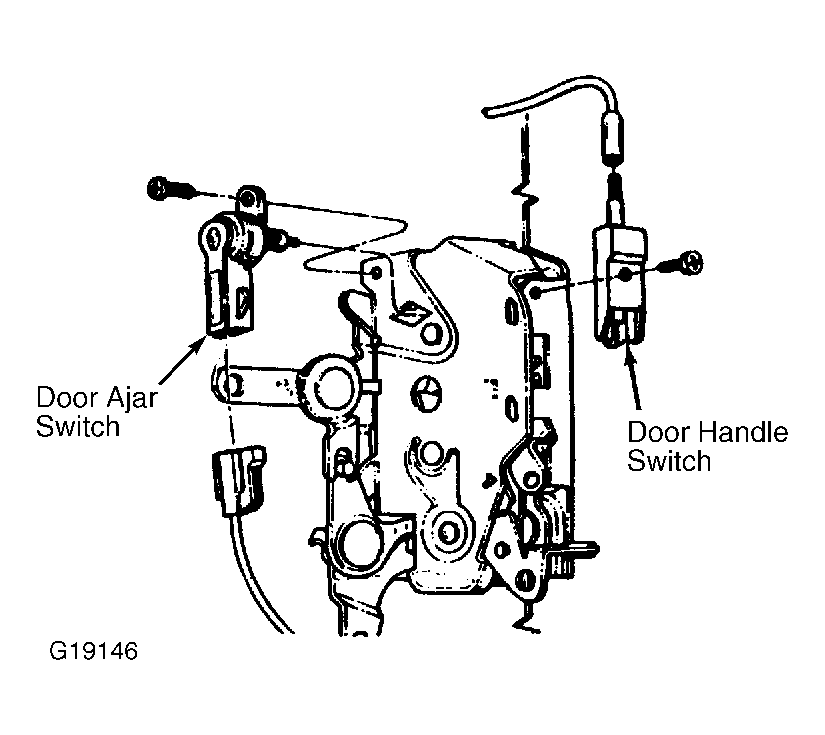

Fig 27: Component Locations (27 Of 27)

G19146
