Float Drop

  1. Remove air cleaner, carburetor air horn and gasket from top of carburetor.
  2. Hold air horn in upright position. Allow float to hang free. Measure minimum clearance from tip of float to bottom of air horn casting with a suitable gauge. See Fig 1 .
  3. Bend tab at end of float arm to adjust. After completing adjustment, install air horn and a new gasket on carburetor. Start engine and check for fuel leaks. Install air cleaner.

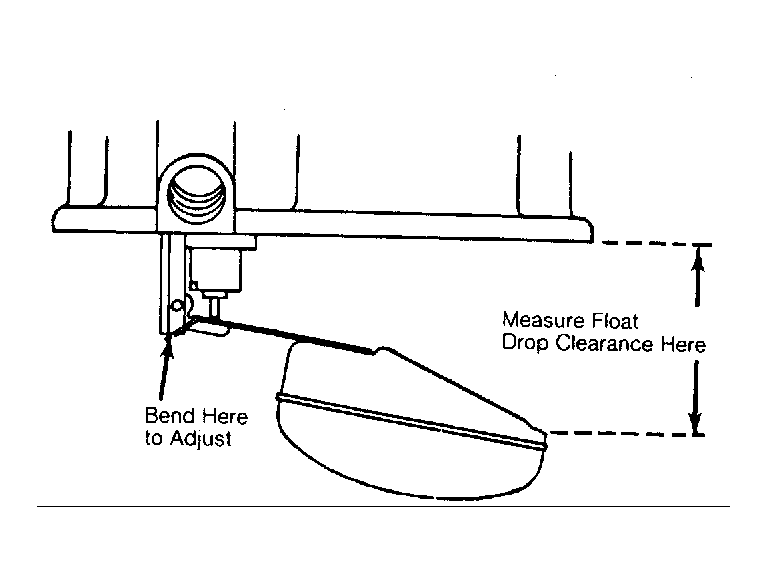

Fig 1: Float Drop Clearance Adjustment Bend tab at end of float arm.
G8558
