Tilt Column: Disassembly

Remove steering wheel. Remove column from vehicle. Remove turn signal lever. Drive out pivot pin and remove shift lever on automatic transmissions. Remove steering shaft lower flange and retaining clamp.
Remove lower bearing retainer. On automatic transmissions, remove shift tube retaining rivet from bottom of shift socket and withdraw shift tube from bottom of column.
On all models, remove lock drive gear. Remove turn signal switch screws, wiring harness to column clips and switch and wiring harness from column.
Remove cover casting screws. Remove casting from column. Unhook upper actuator from lower actuator and remove.
Remove and discard screws attaching lower flange to outer tube. Loosen ignition switch retaining screws and remove ignition rod from switch end.

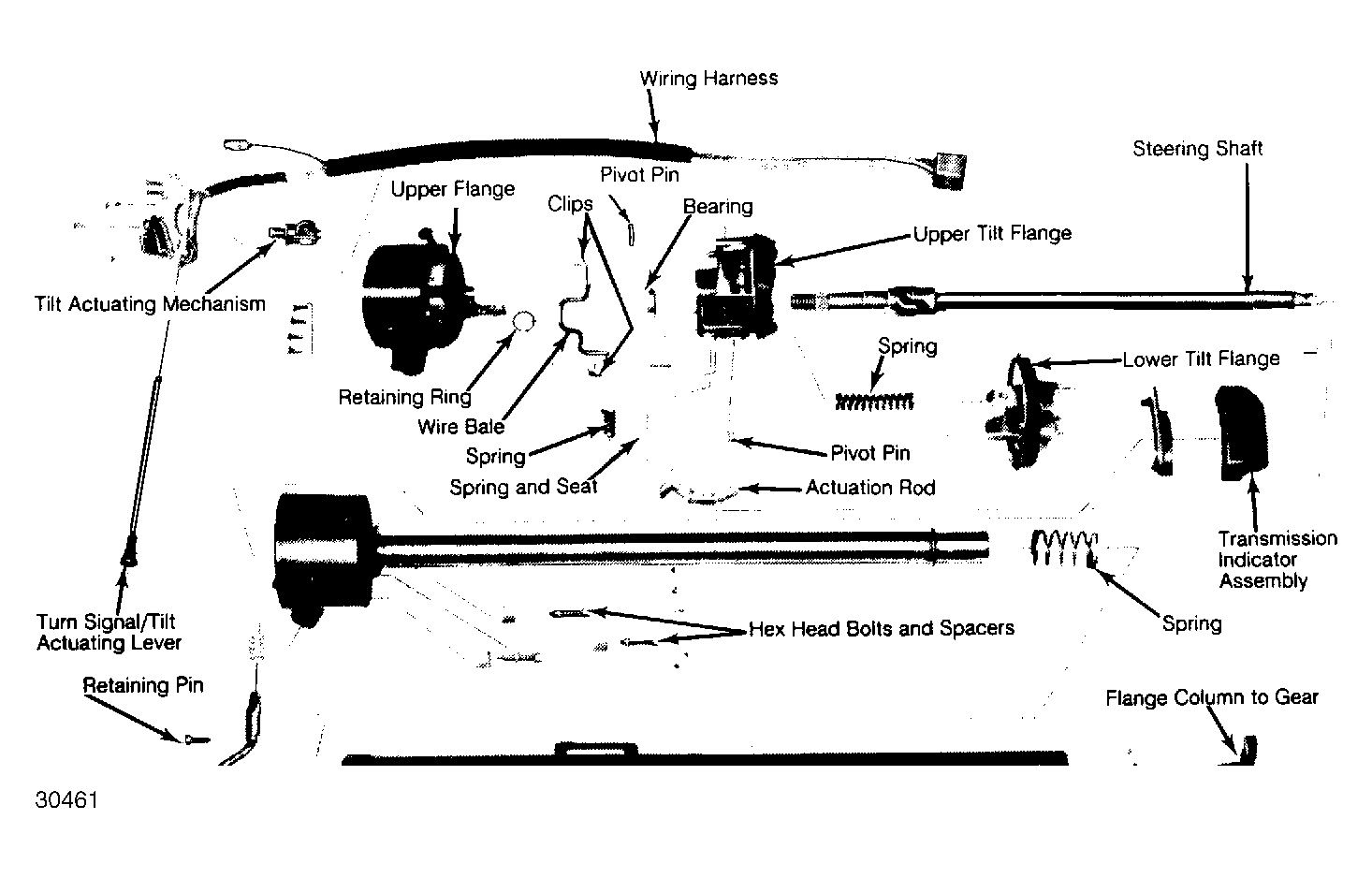

Fig 1: Exploded View of Tilt Column Assembly
Withdraw tilt mechanism, steering shaft and ignition actuation rod from steering column upper end. On automatic transmissions, remove shift socket. Remove key release lever mechanism to tilt mechanism on 4-speed manual transmission models.
