Electrical Component Locator: Relays
RELAYS LOCATION
| Component | Location |
|---|---|
| Fog Light Relay | Left side of instrument panel. |
| Hazard Flasher | Rear of fuse panel. |

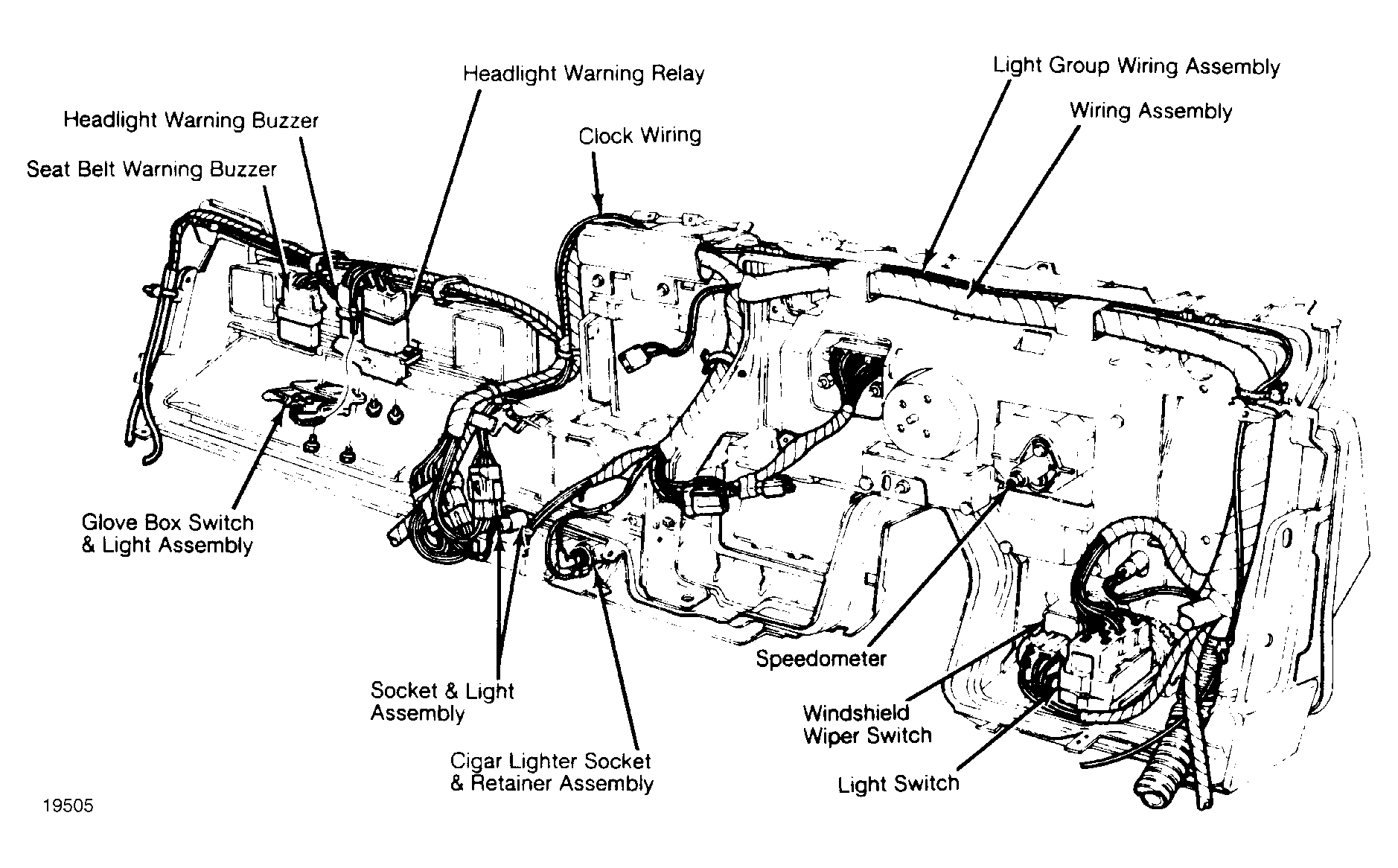

| Headlight Warning Buzzer | Behind instrument panel on right side above glove box. See Figure. |
| Headlight Warning Relay | Behind instrument panel on right side above glove box. See Figure. |
| Horn Relay | Behind instrument panel at right side of steering column. |
| Seat Belt Warning Buzzer | Behind instrument panel on right side above glove box. See Figure. |
| Starter Relay | Front of right inner fender panel. |
| Turn Signal Flasher | Front of fuse panel. |
