Control Units/Timers
CONTROL UNITS/TIMERS LOCATION
| Component | Location |
|---|---|
| Breakerless Ignition Module | Left side of engine bay. |
| Intermittent Wiper Governor | On lower flange of instrument below wiper/washer switch. |
| Shift Indicator Light Control Unit | Under instrument panel to right of steering column. |

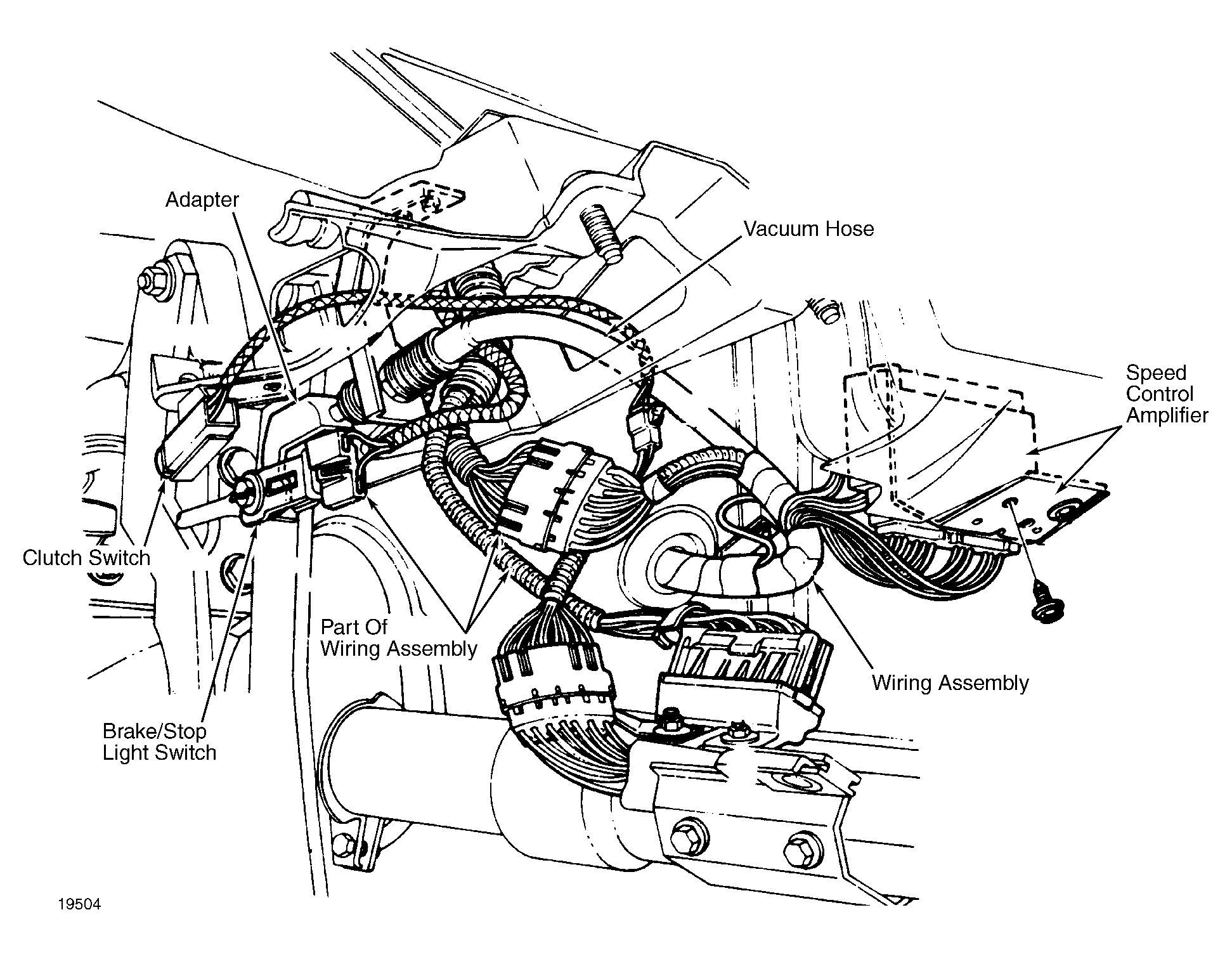

| Speed Control Amplifier | On dash panel, high right side of steering column. See Figure. |
| Speed Control Servo | On bracket near master cylinder. |
