Service Indicator & Warning Lights
>>
Service Indicator & Warning Lights
>>
Notes
Service Indicator & Warning Lights: Notes
Fig 1: Dash Gauges & Warning Lights (1987-91)
Courtesy of FORD MOTOR CO.

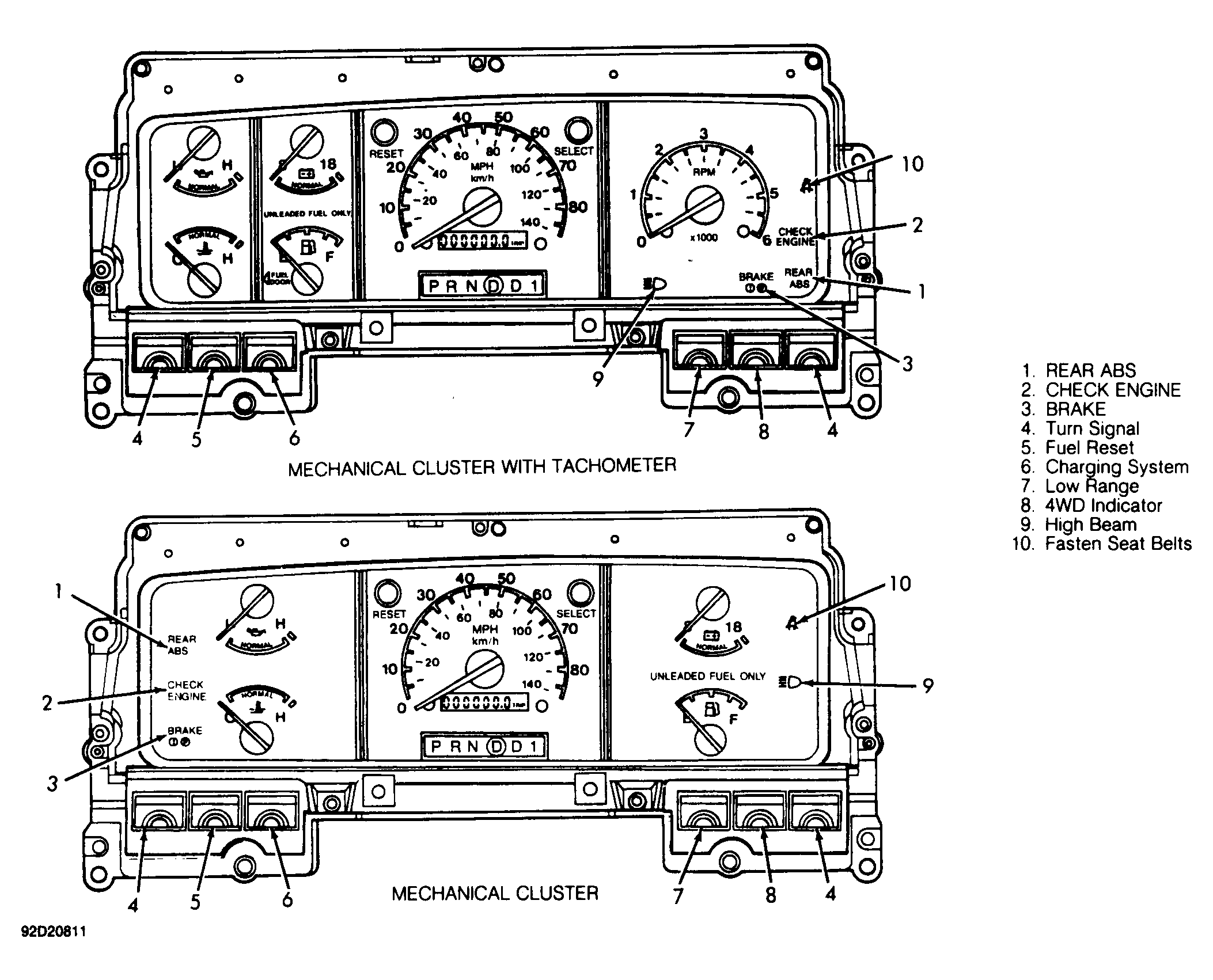

Fig 2: Dash Gauges & Warning Lights (1992)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
