Vacuum Diagrams: Specifications

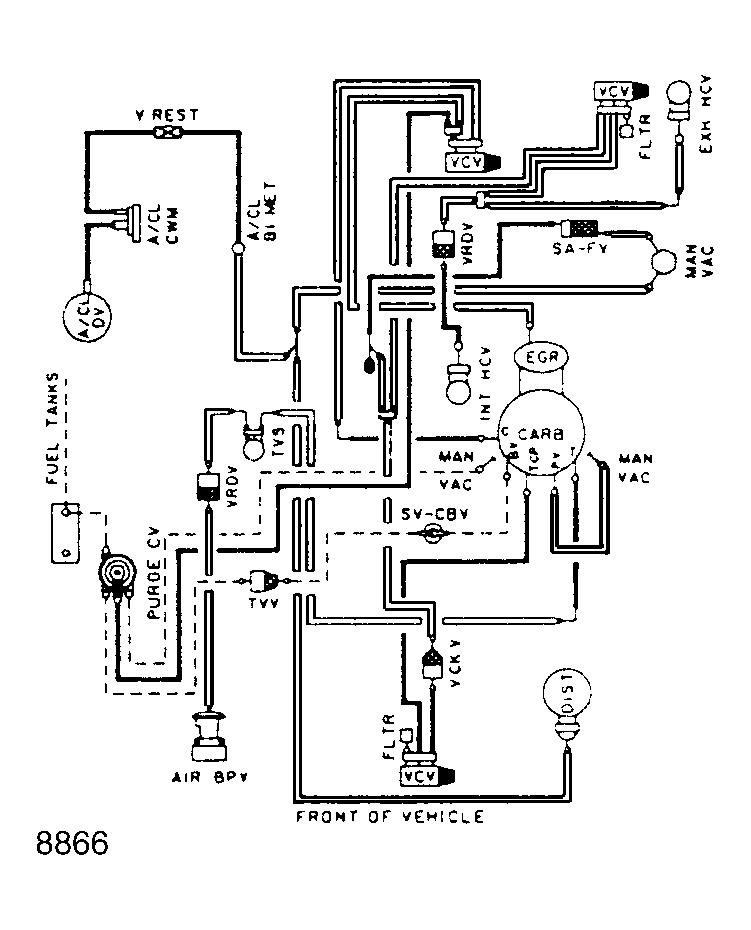

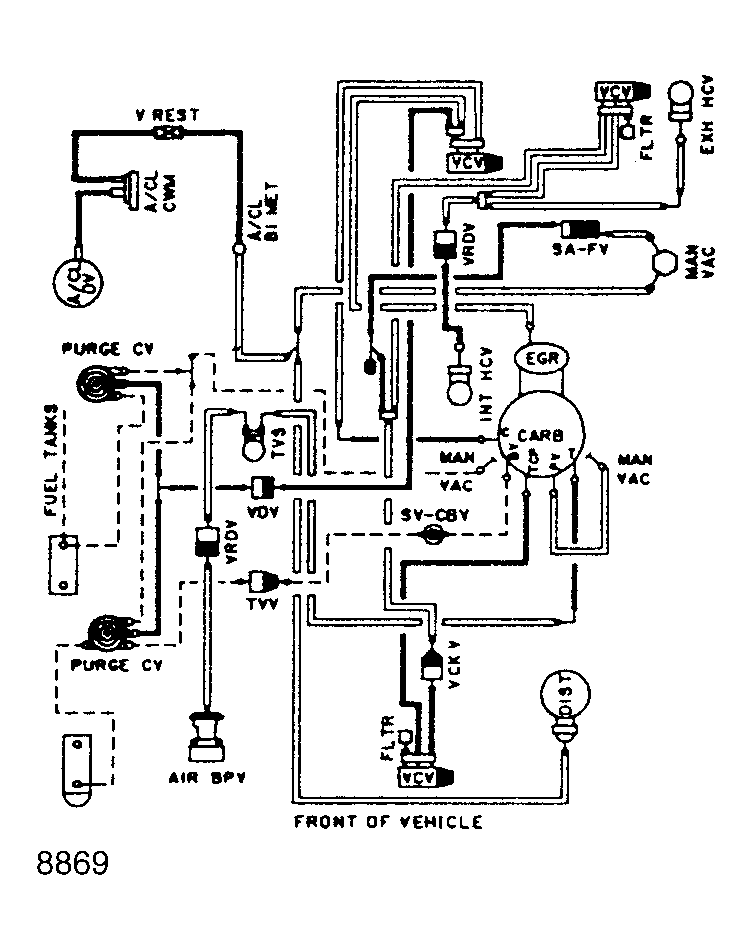

VACUUM DIAGRAM INDEX - 3.8L V6

Description Specification

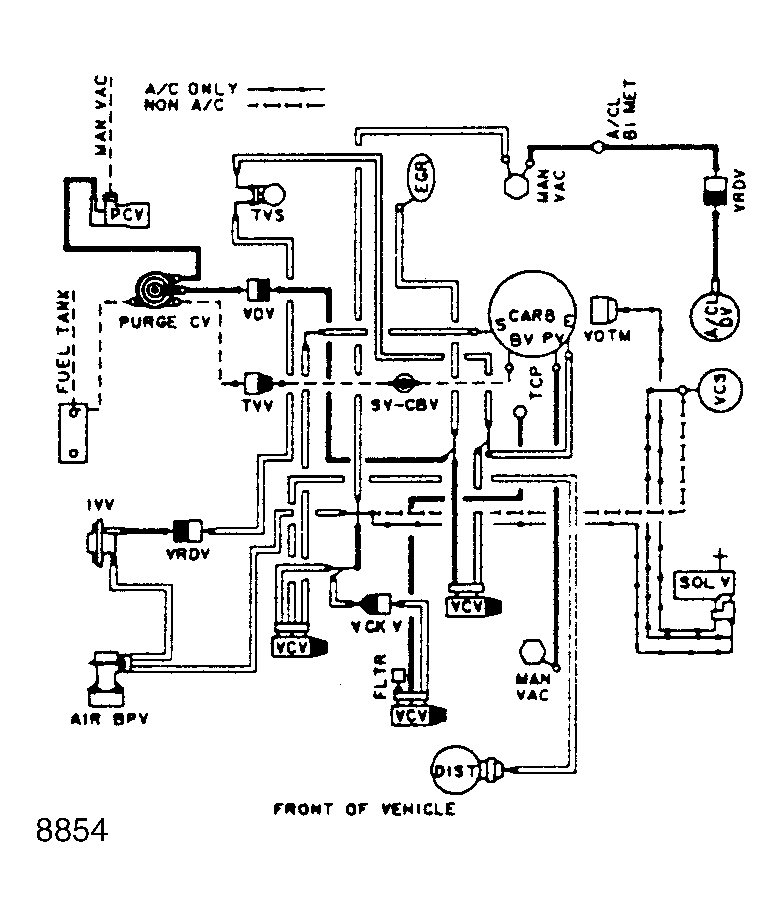

F100
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 4-55D-R00

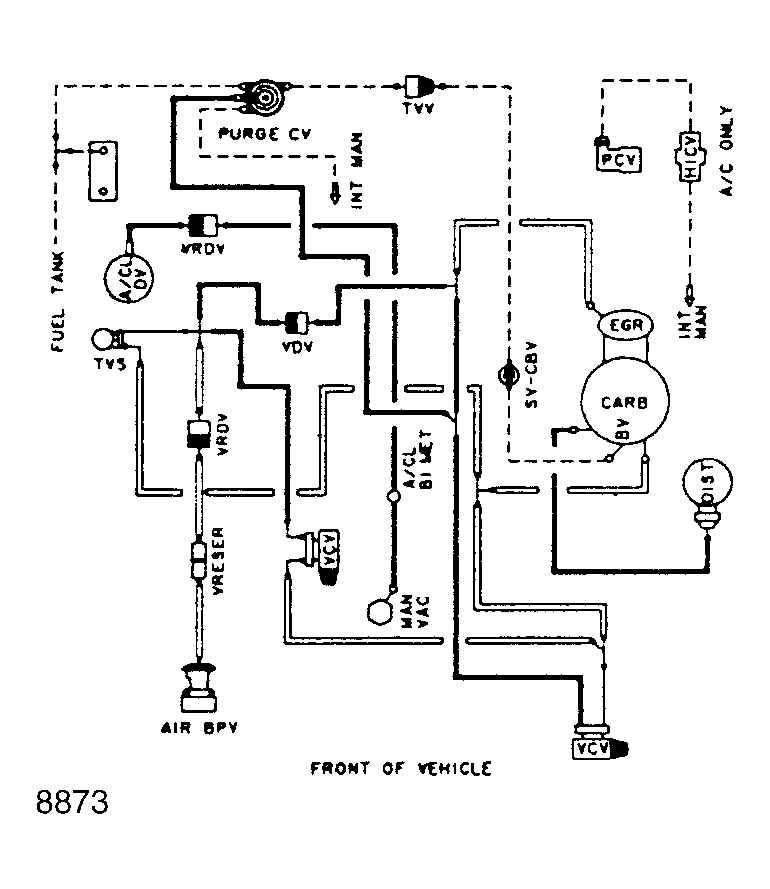

Illustration See Figure

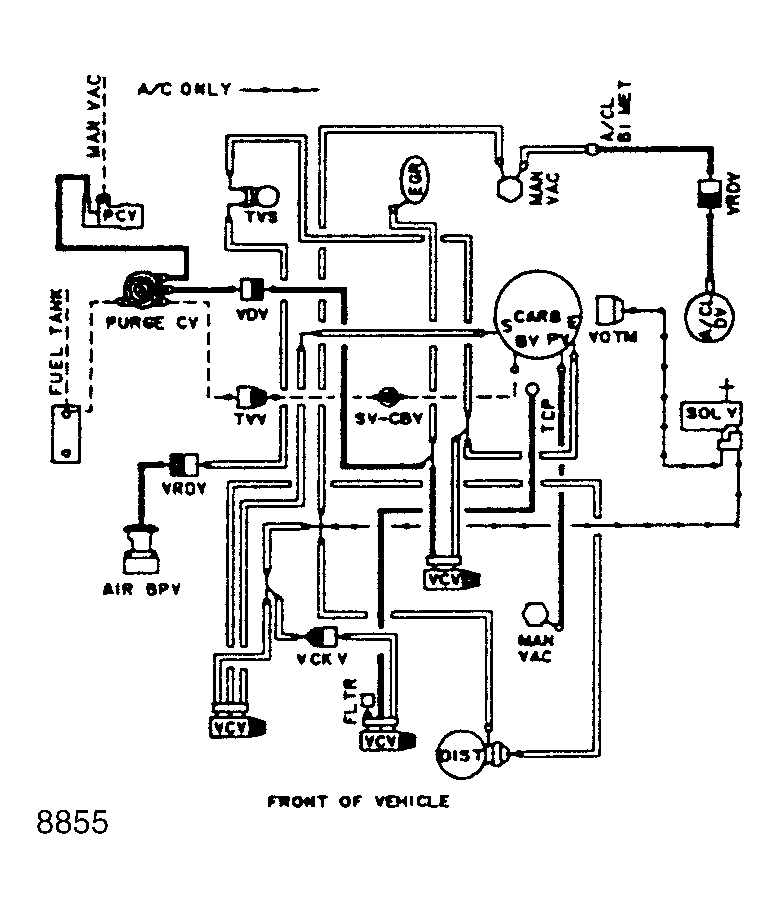

F100
Application Fed.
Transmission Auto.
A/C X
Non A/C X
Calibration 4-56D-R00

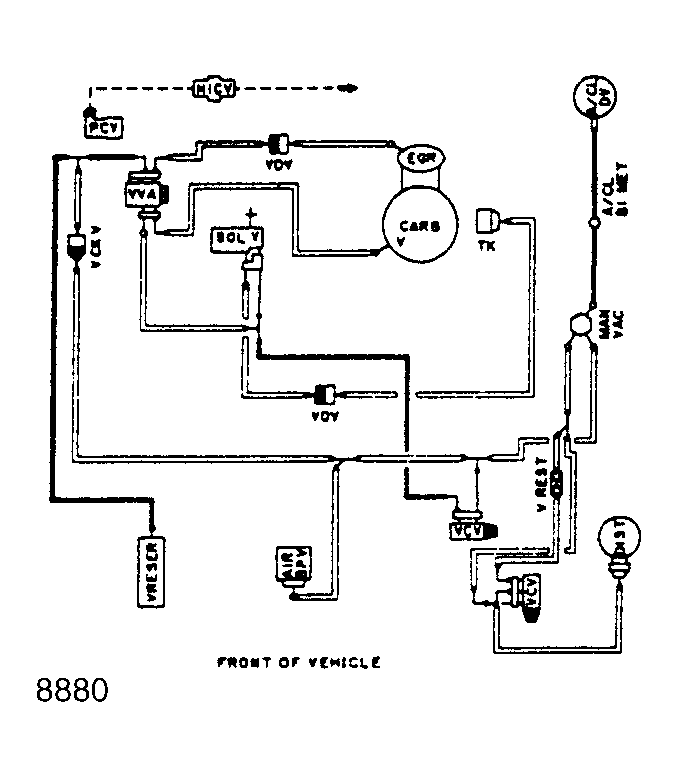

Illustration See Figure

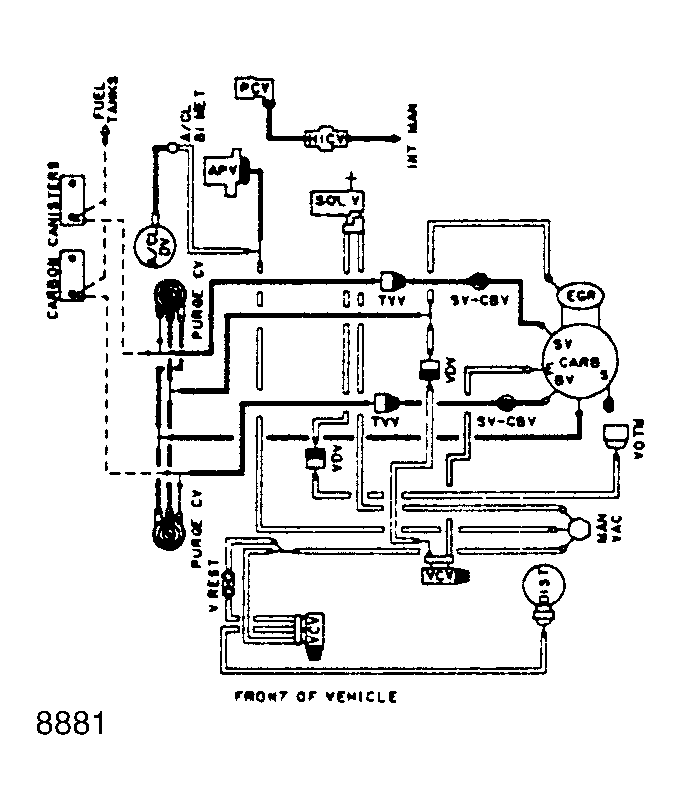

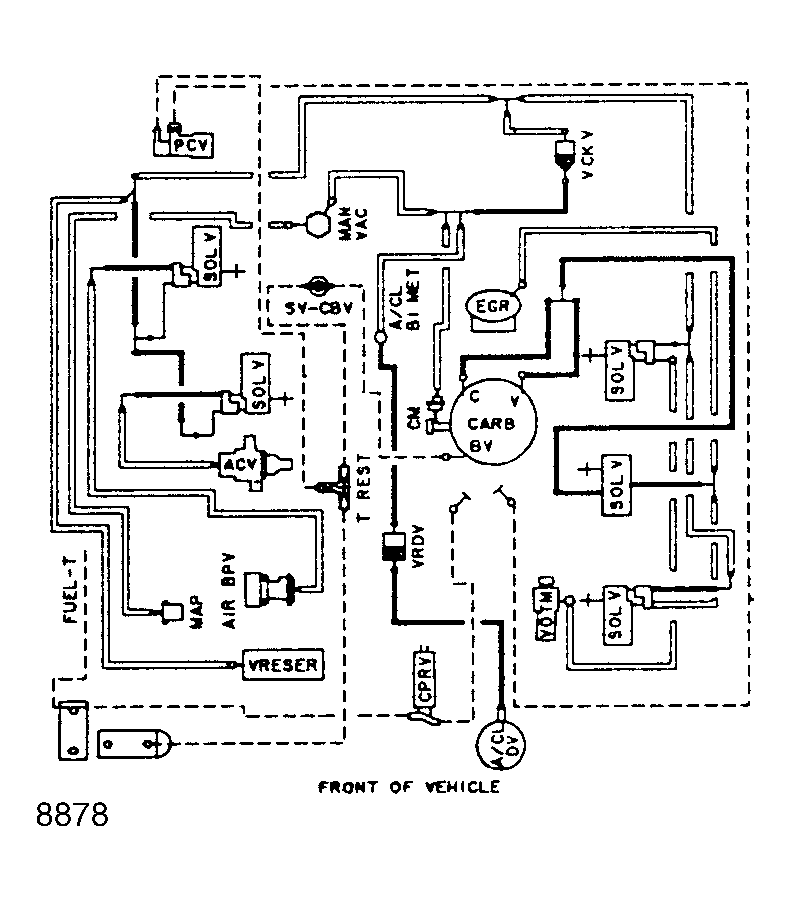

VACUUM DIAGRAM INDEX - 4.9L 6-CYLINDER

Description Specification

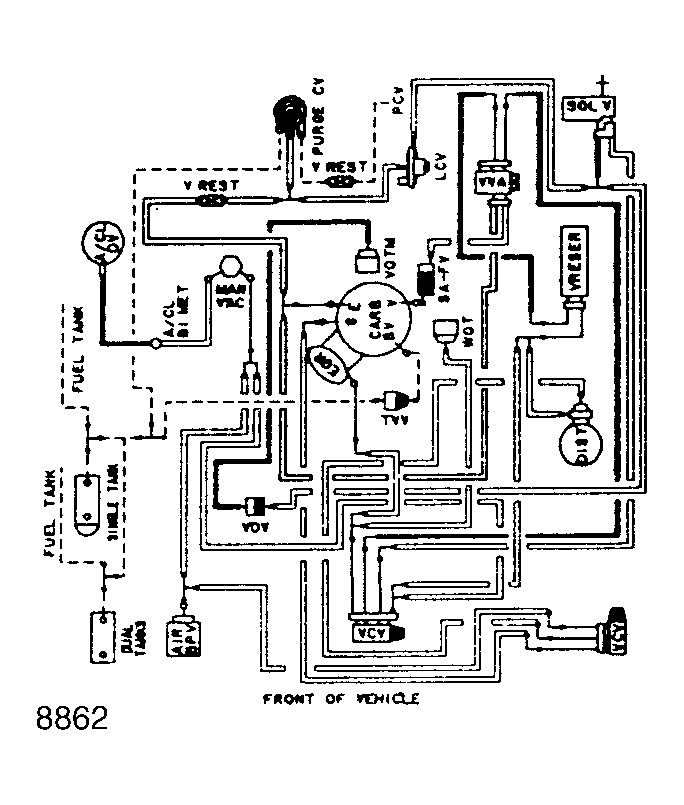

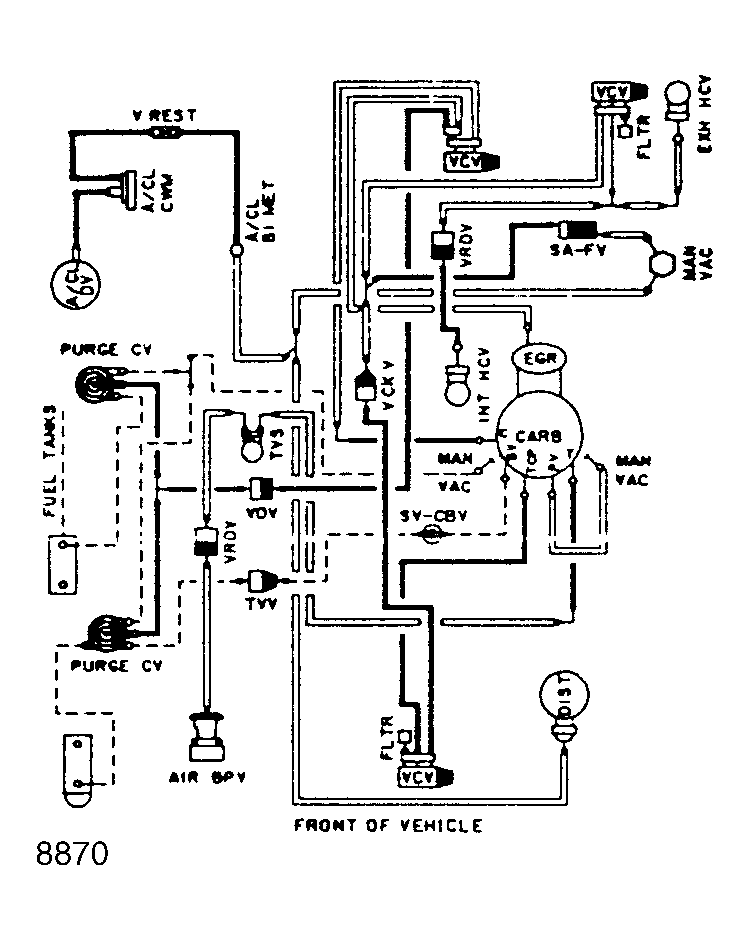

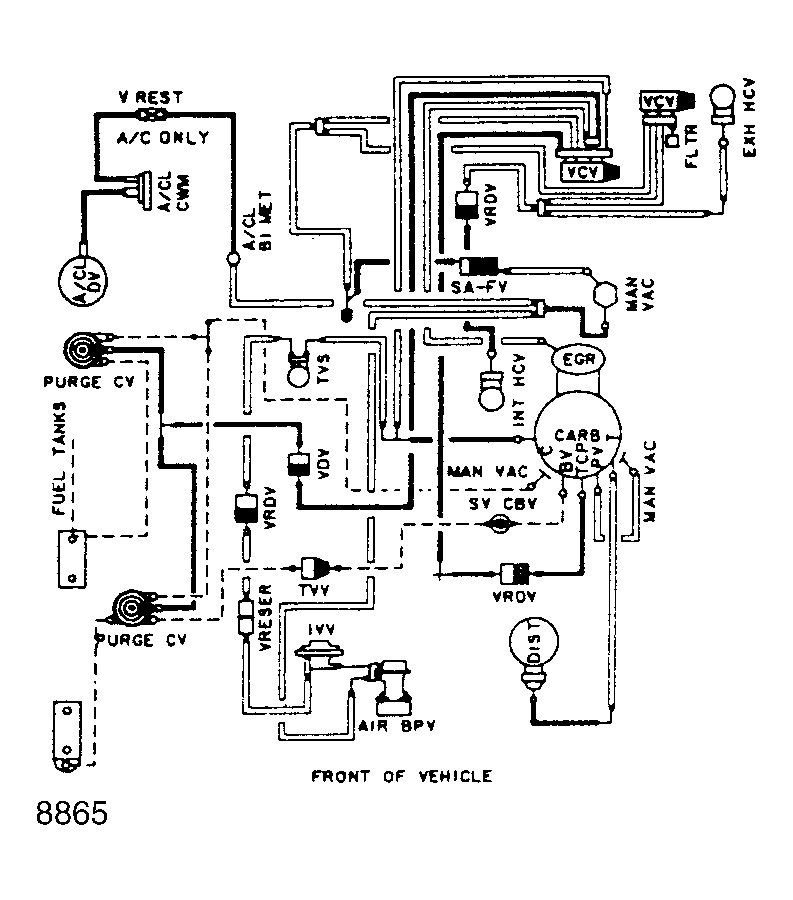

Bronco, E100/350, F100/350
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51D-R00

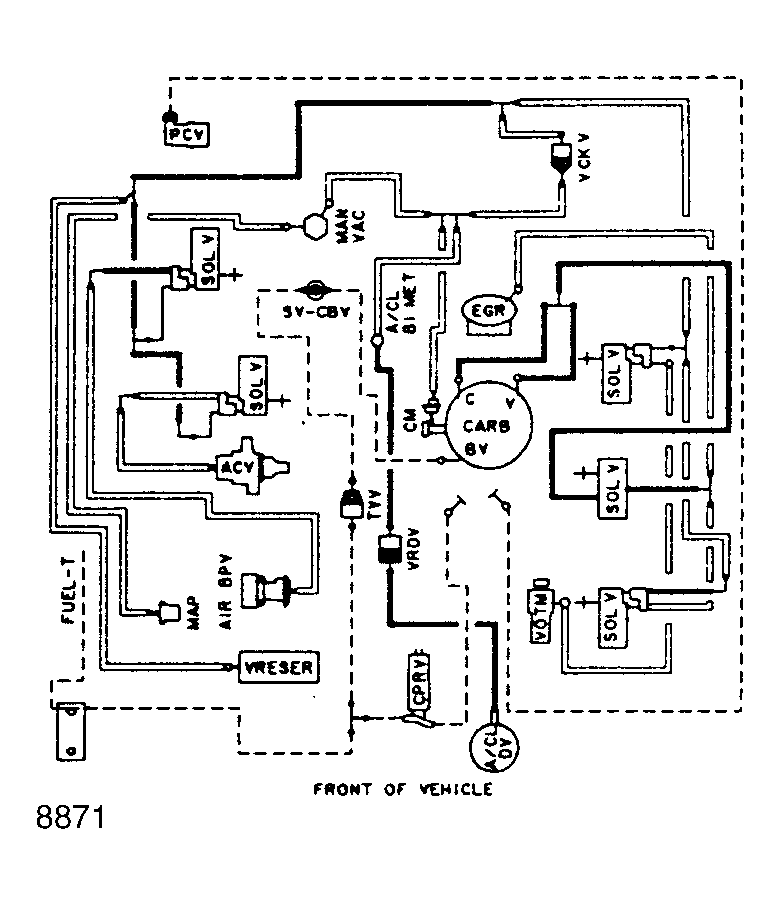

Illustration See Figure
Bronco, E100/350, F100/350
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51E-R01

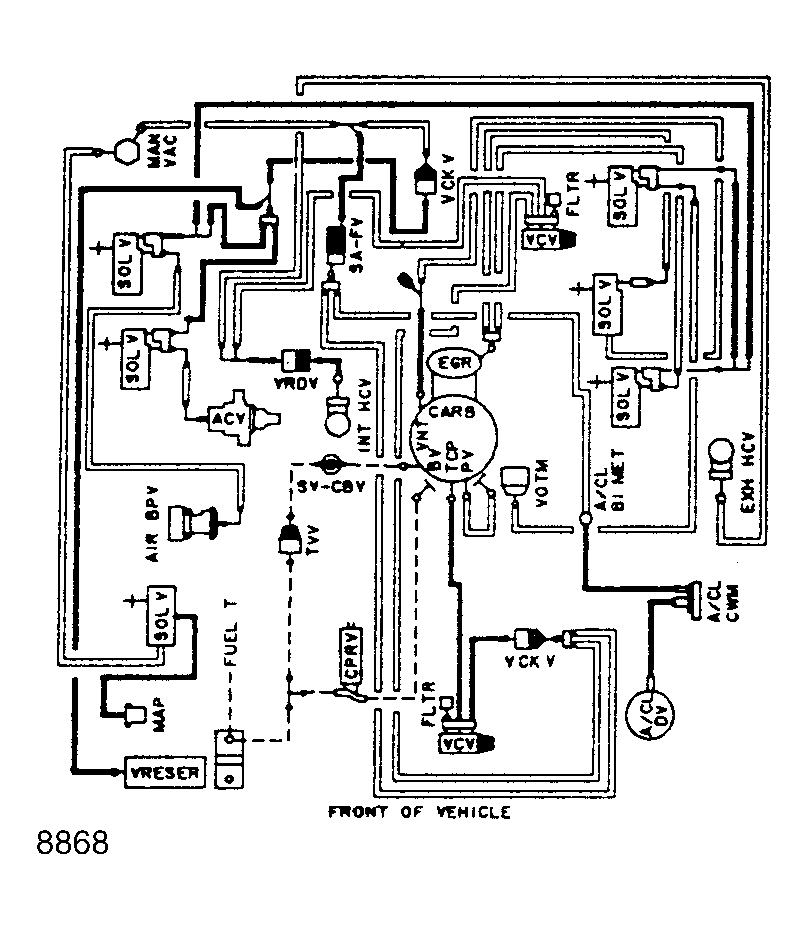

Illustration See Figure
Bronco, E100/350, F100/350
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51F-R00

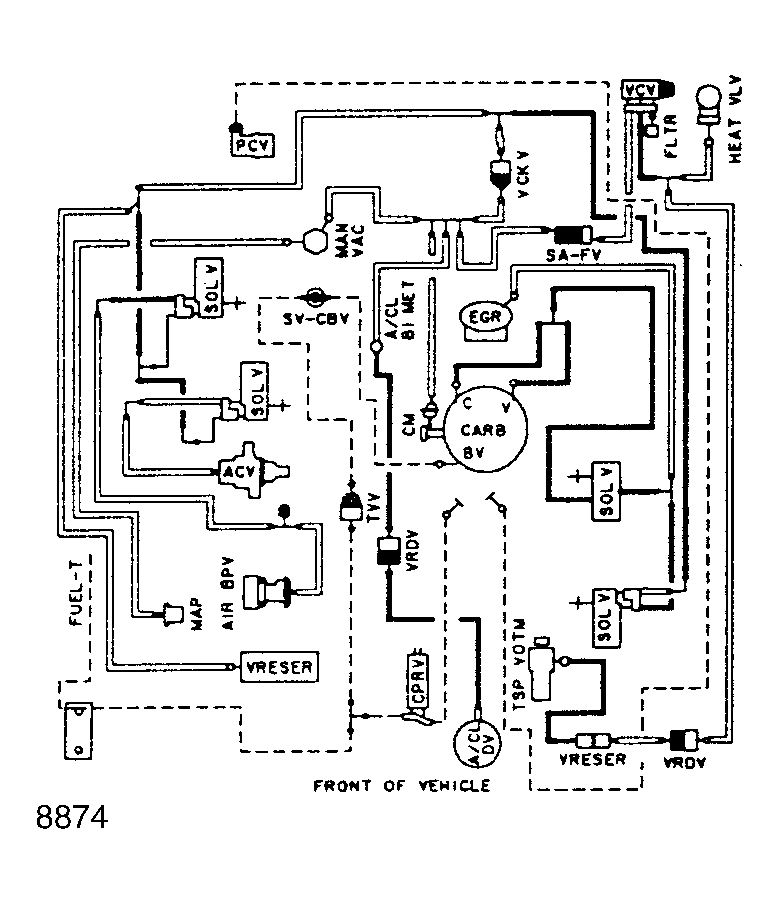

Illustration See Figure
Bronco, E100/350, F100/350
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51G-R00

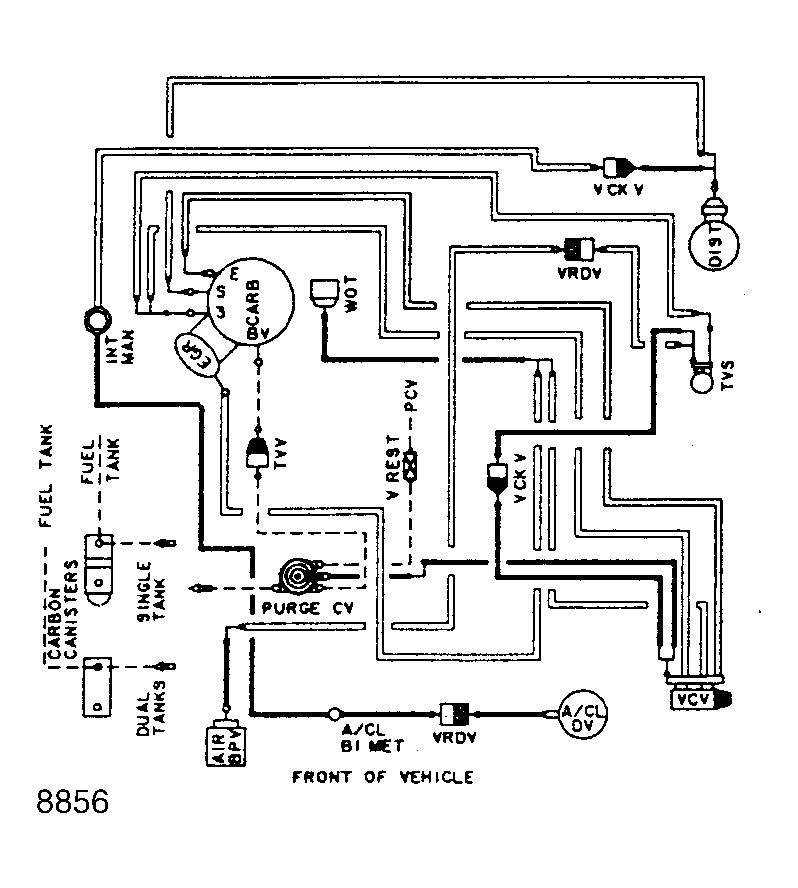

Illustration See Figure
Bronco, E100/350, F100/350
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51H-R00

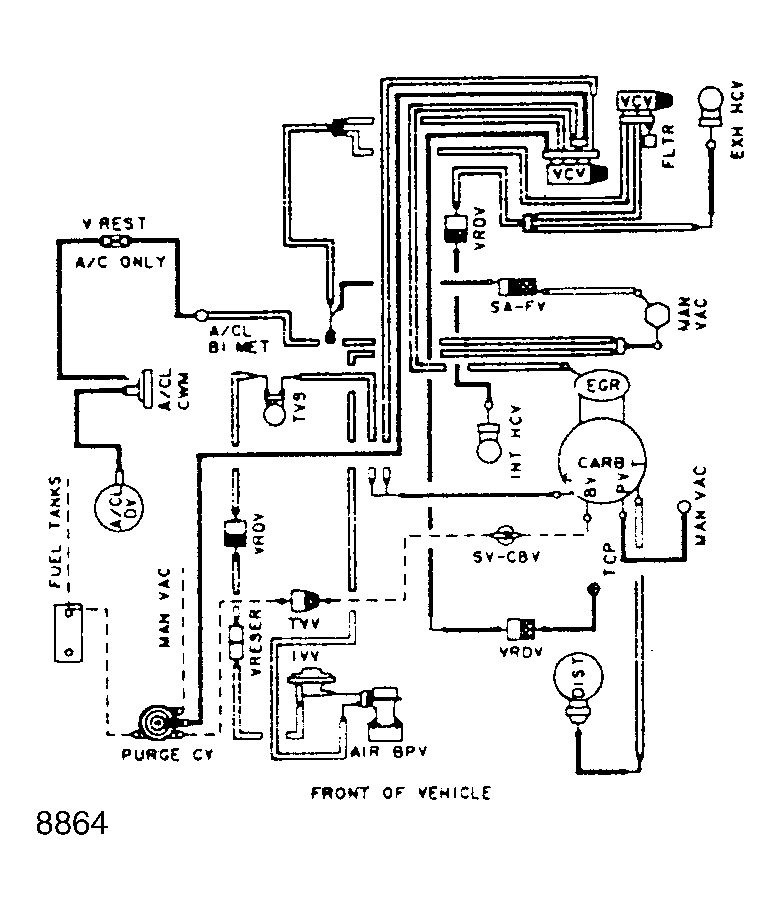

Illustration See Figure
Bronco, E100/350, F100/350
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51K-R00

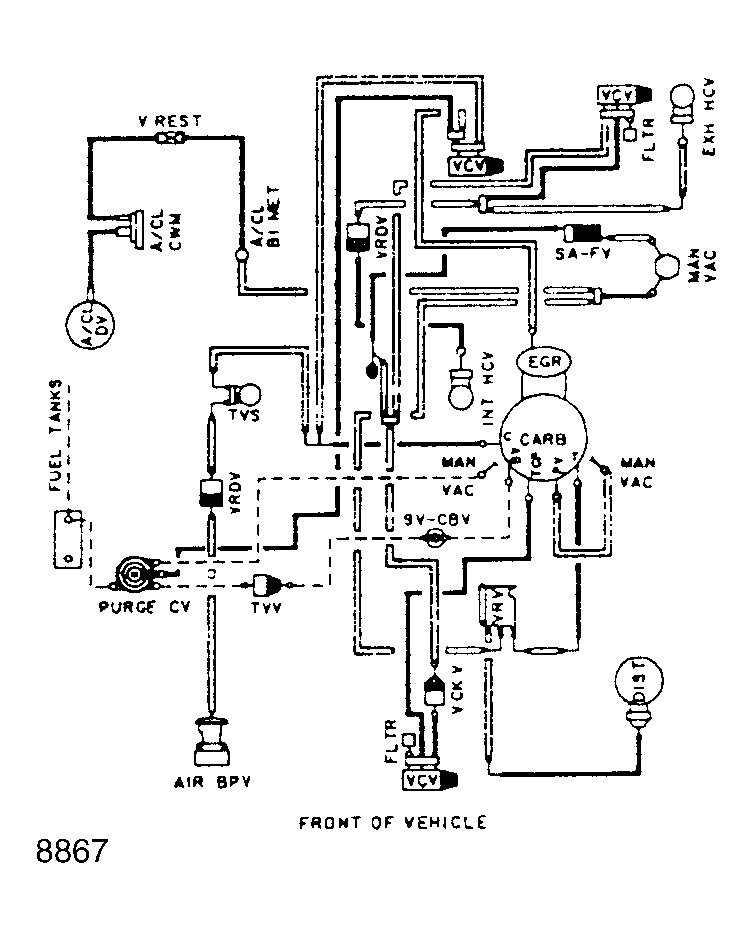

Illustration See Figure
Bronco, E100/350, F100/350
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51L-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51P-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Calif.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51R-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Calif.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51R-R10
Illustration See Figure
Bronco, E100/350, F100/350
Application Calif.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51S-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Calif.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51S-R10
Illustration See Figure
Bronco, E100/350, F100/350
Application Calif.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51T-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51T-R10
Illustration See Figure
Bronco, E100/350, F100/350
Application Hi. Alt.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51V-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Hi. Alt.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51X-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Hi. Alt.
Transmission Man.
A/C X
Non A/C X
Calibration 3-51Z-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52E-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52F-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52G-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52K-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52L-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Calif.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52R-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Calif.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52R-R10
Illustration See Figure
Bronco, E100/350, F100/350
Application Calif.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52S-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Calif.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52S-R10
Illustration See Figure
Bronco, E100/350, F100/350
Application Calif.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52T-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Calif.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52T-R10
Illustration See Figure
Bronco, E100/350, F100/350
Application Hi. Alt.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52V-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Hi. Alt.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52Y-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application Hi. Alt.
Transmission Auto
A/C X
Non A/C X
Calibration 3-52Z-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application All HD
Transmission Man.
A/C X
Non A/C X
Calibration 9-77J-R12
Illustration See Figure
Bronco, E100/350, F100/350
Application All HD
Transmission Man.
A/C X
Non A/C X
Calibration 9-77S-R10
Illustration See Figure
Bronco, E100/350, F100/350
Application All HD
Transmission Auto
A/C X
Non A/C X
Calibration 9-78J-R00
Illustration See Figure
Bronco, E100/350, F100/350
Application All HD
Transmission Auto
A/C X
Non A/C X
Calibration 9-78J-R11
Illustration See Figure

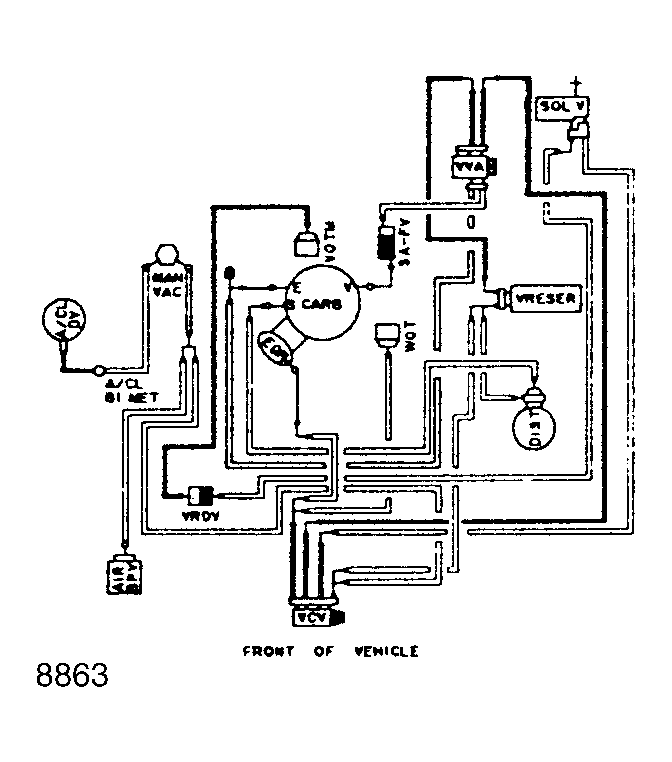

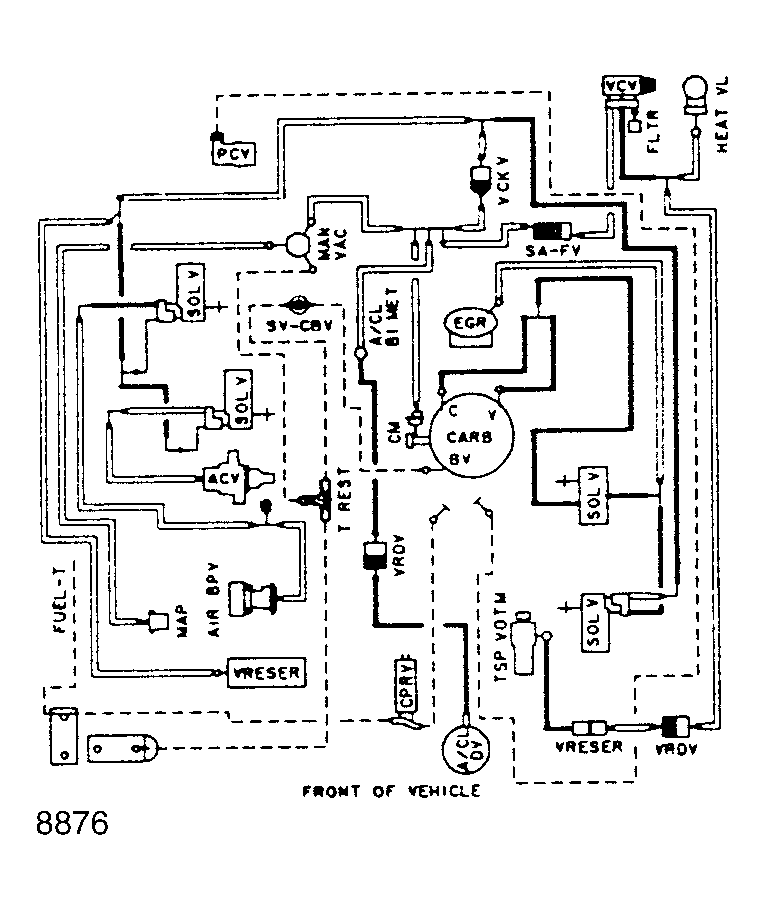

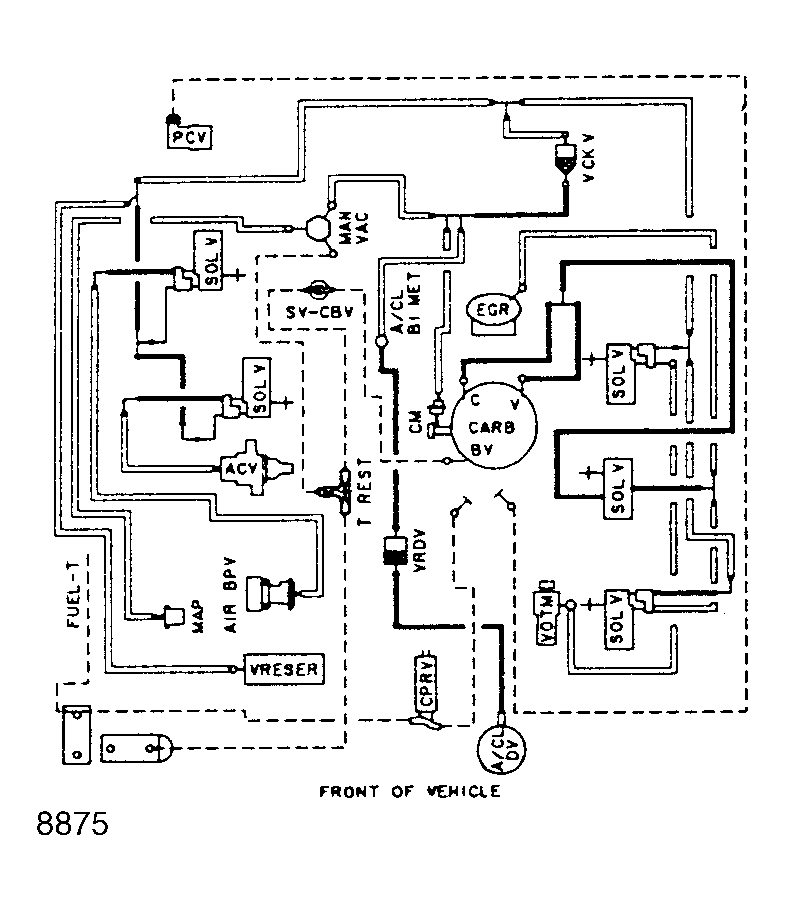

VACUUM DIAGRAM INDEX - 5.0L V8

Description Specification

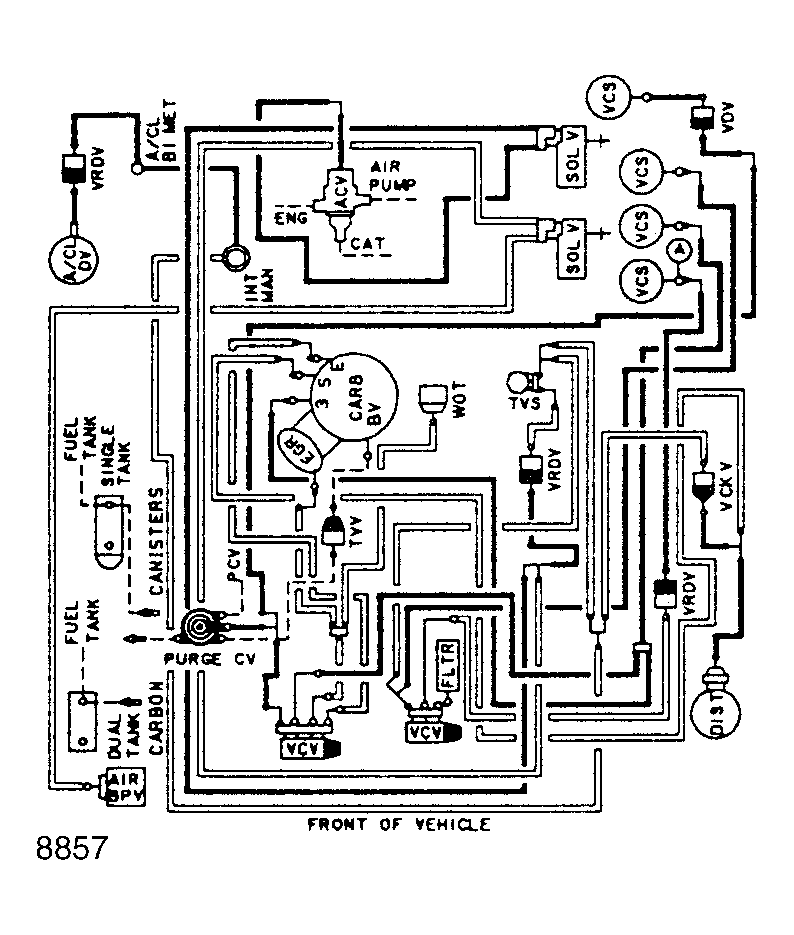

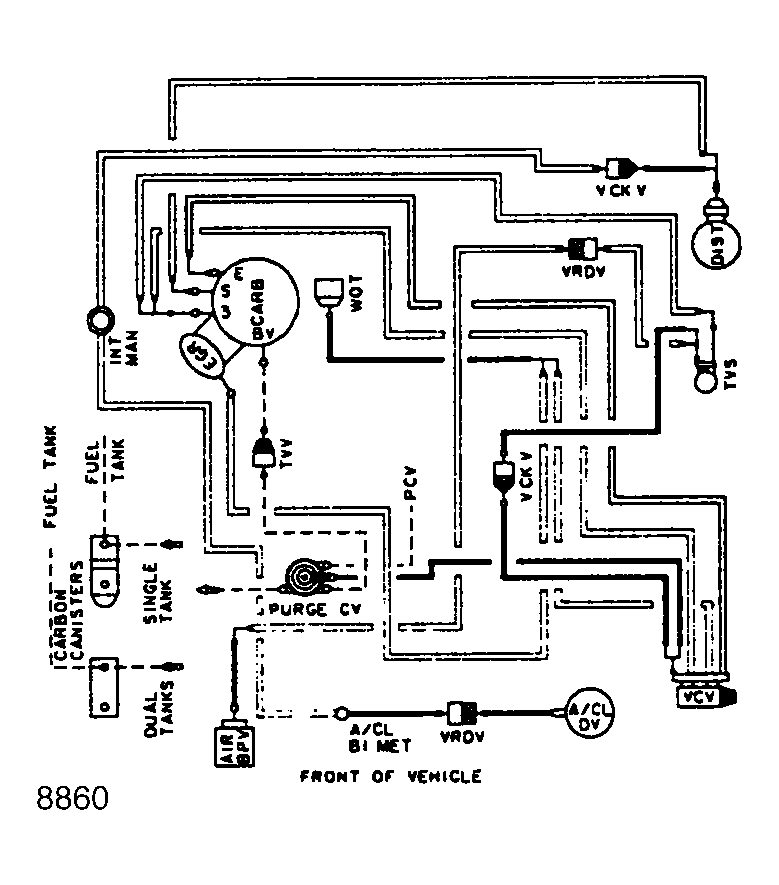

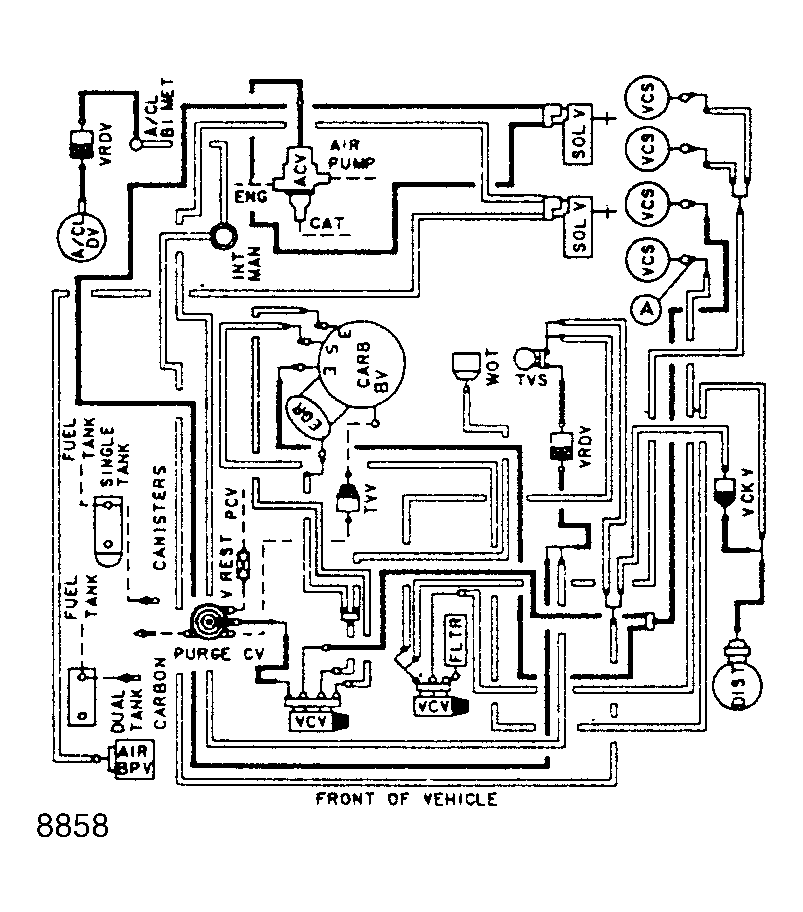

Bronco, E100/250, F100/250
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-53F-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-53G-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-53K-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 3-53L-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Hi. Alt.
Transmission Man.
A/C X
Non A/C X
Calibration 3-53W-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Hi. Alt
Transmission Man.
A/C X
Non A/C X
Calibration 3-53Y-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Hi. Alt
Transmission Man.
A/C X
Non A/C X
Calibration 3-53Z-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 3-54E-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 3-54E-R10
Illustration See Figure
Bronco, E100/250, F100/250
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 3-54F-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 3-54J-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 3-54J-R10
Illustration See Figure
Bronco, E100/250, F100/250
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 3-54L-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Calif
Transmission Auto
A/C X
Non A/C X
Calibration 3-54P-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Calif.
Transmission Auto
A/C X
Non A/C X
Calibration 3-54R-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Calif.
Transmission Auto
A/C X
Non A/C X
Calibration 3-54T-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Hi. Alt
Transmission Auto
A/C X
Non A/C X
Calibration 3-54W-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Hi Alt
Transmission Auto
A/C X
Non A/C X
Calibration 3-54Y-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Hi. Alt
Transmission Auto
A/C X
Non A/C X
Calibration 3-54Y-R10
Illustration See Figure
Bronco, E100/250, F100/250
Application Hi. Alt.
Transmission Auto
A/C X
Non A/C X
Calibration 3-54Z-R00
Illustration See Figure
Bronco, E100/250, F100/250
Application Hi. Alt.
Transmission Auto
A/C X
Non A/C X
Calibration 3-54Z-R10
Illustration See Figure

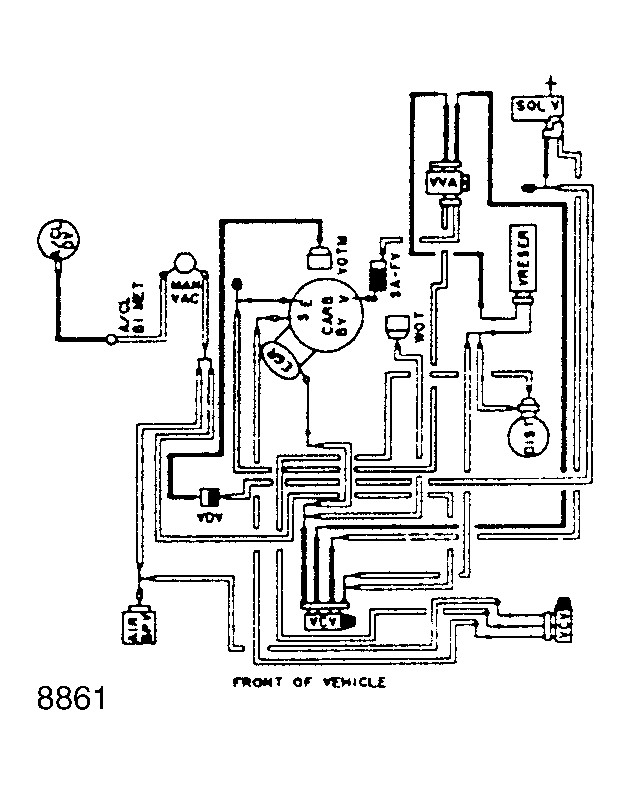

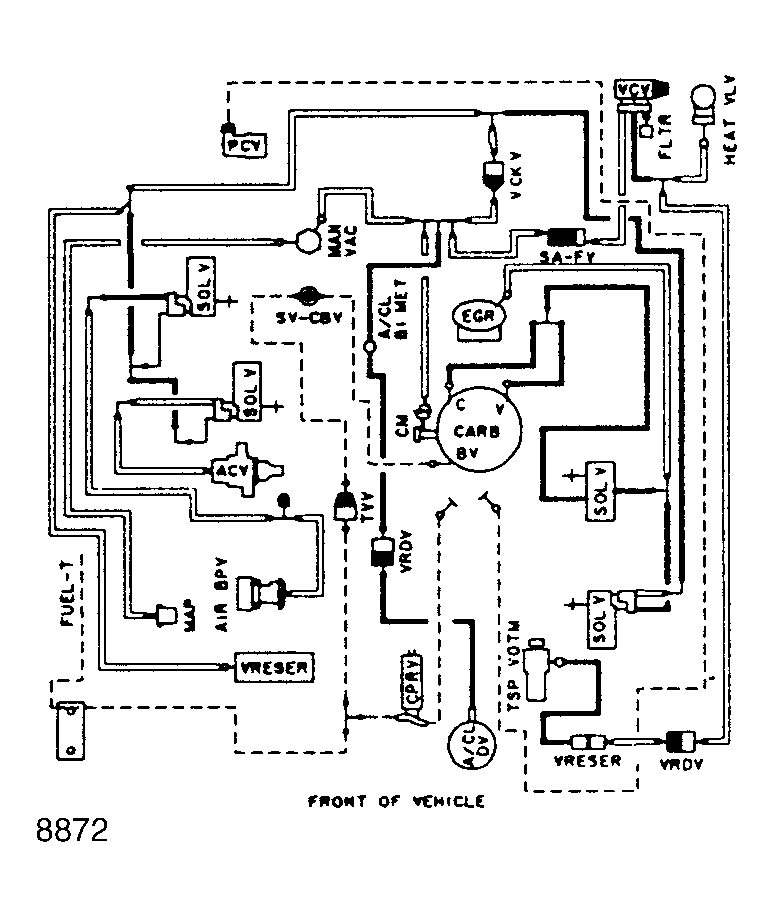

VACUUM DIAGRAM INDEX - 5.8L V8

Description Specification
Bronco, E100/350, F150/350
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 1-63T-R12
Illustration See Figure
Bronco, E100/350, F150/350
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 1-63T-R13
Illustration See Figure
Bronco, E100/350, F150/350
Application Fed.
Transmission Man.
A/C X
Non A/C X
Calibration 1-63T-R15B
Illustration See Figure
Bronco, E100/350, F150/350
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 1-64H-R02
Illustration See Figure
Bronco, E100/350, F150/350
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 1-64T-R12
Illustration See Figure
Bronco, E100/350, F150/350
Application Fed.
Transmission Auto
A/C X
Non A/C X
Calibration 1-64T-R13
Illustration See Figure
Bronco, E100/350, F150/350
Application All
Transmission Auto
A/C X
Non A/C X
Calibration 1-64T-R15B
Illustration See Figure
Bronco, E100/350, F150/350
Application Hi. Alt.
Transmission Man.
A/C X
Non A/C X
Calibration 2-63Y-R11
Illustration See Figure
Bronco, E100/350, F150/350
Application Hi. Alt.
Transmission Man.
A/C X
Non A/C X
Calibration 2-63Y-R12
Illustration See Figure
Bronco, E100/350, F150/350
Application Hi. Alt.
Transmission Man.
A/C X
Non A/C X
Calibration 2-63Y-R14B
Illustration See Figure
Bronco, E100/350, F150/350
Application Hi. Alt.
Transmission Auto
A/C X
Non A/C X
Calibration 2-64X-R00
Illustration See Figure
Bronco, E100/350, F150/350
Application Hi. Alt.
Transmission Auto
A/C X
Non A/C X
Calibration 2-64Y-R11
Illustration See Figure
Bronco, E100/350, F150/350
Application Hi. Alt.
Transmission Auto
A/C X
Non A/C X
Calibration 2-64Y-R12
Illustration See Figure
Bronco, E100/350, F150/350
Application Hi. Alt.
Transmission Auto
A/C X
Non A/C X
Calibration 2-64Y-R14B
Illustration See Figure
Bronco, E100/350, F150/350
Application All HD
Transmission All
A/C X
Non A/C X
Calibration 2-75J-R20
Illustration See Figure
Bronco, E100/350, F150/350
Application All HD
Transmission All
A/C X
Non A/C X
Calibration 2-76J-R20
Illustration See Figure
VACUUM DIAGRAM INDEX - 7.5L V8

Description Specification
E250/350, F250 HD/350
Application Fed. HD
Transmission All
A/C X
Non A/C X
Calibration 9-97J-R13
Illustration See Figure
E250/350, F250 HD/350
Application All HD
Transmission All
A/C X
Non A/C X
Calibration 3-98S-R00
Illustration See Figure
scientia non olet · About LEMON Manuals
