Sending Units/Sensor Switches
SENDING UNITS/SENSOR SWITCHES LOCATION
| Component | Location |
|---|---|

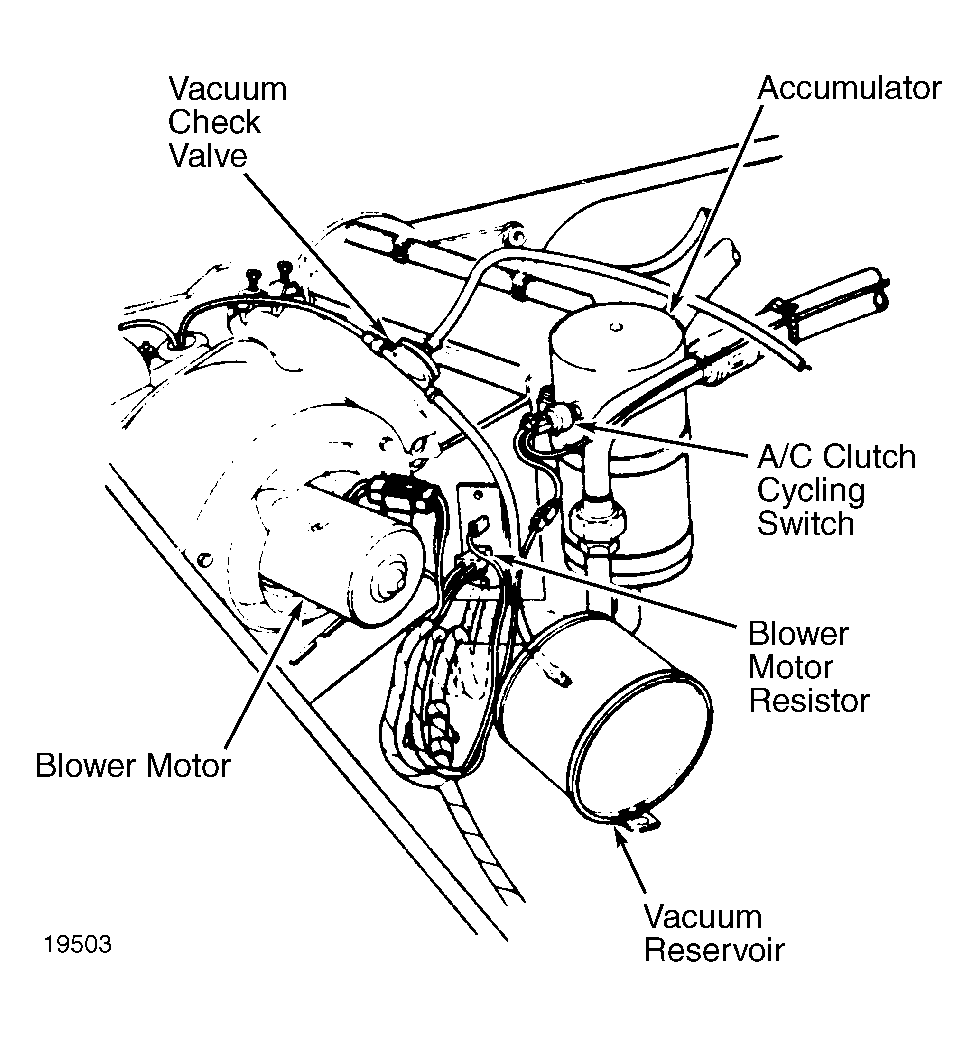

| A/C Clutch Cycling Switch | On accumulator drier. See Figure. |
| Fuel Gauge Sender | Top of fuel tank. |

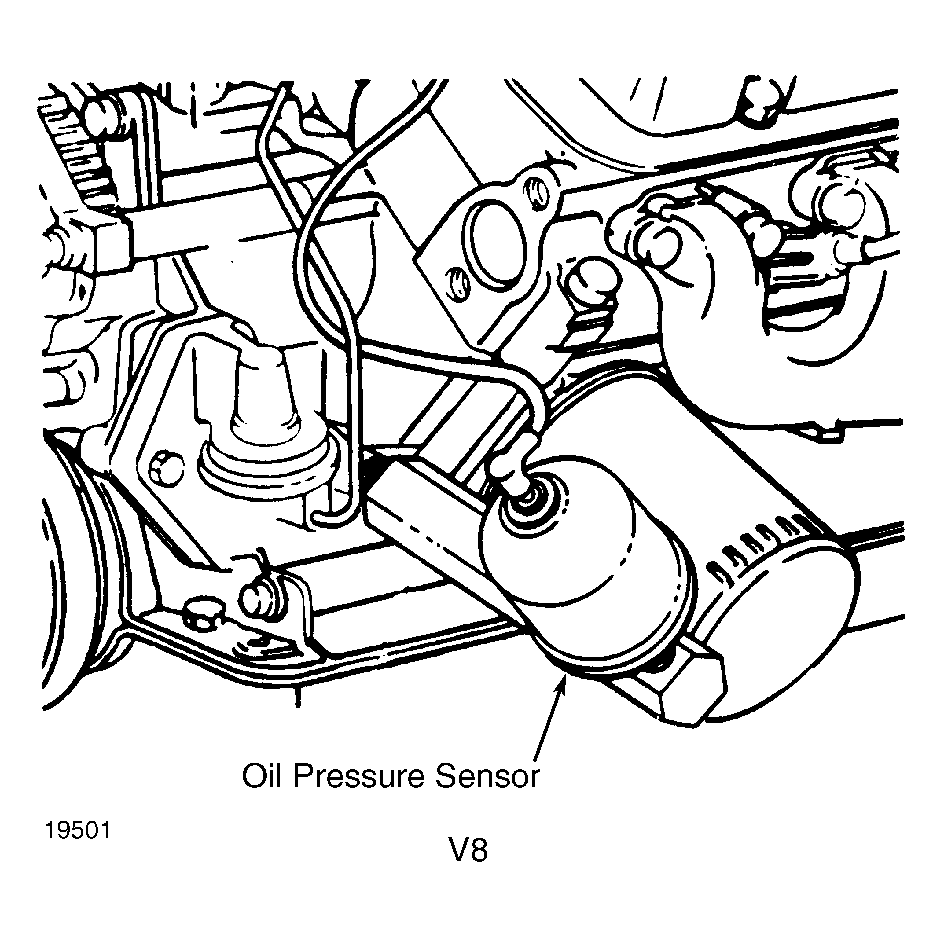

| Oil Pressure Sensor | Near oil filter. See Figure. |

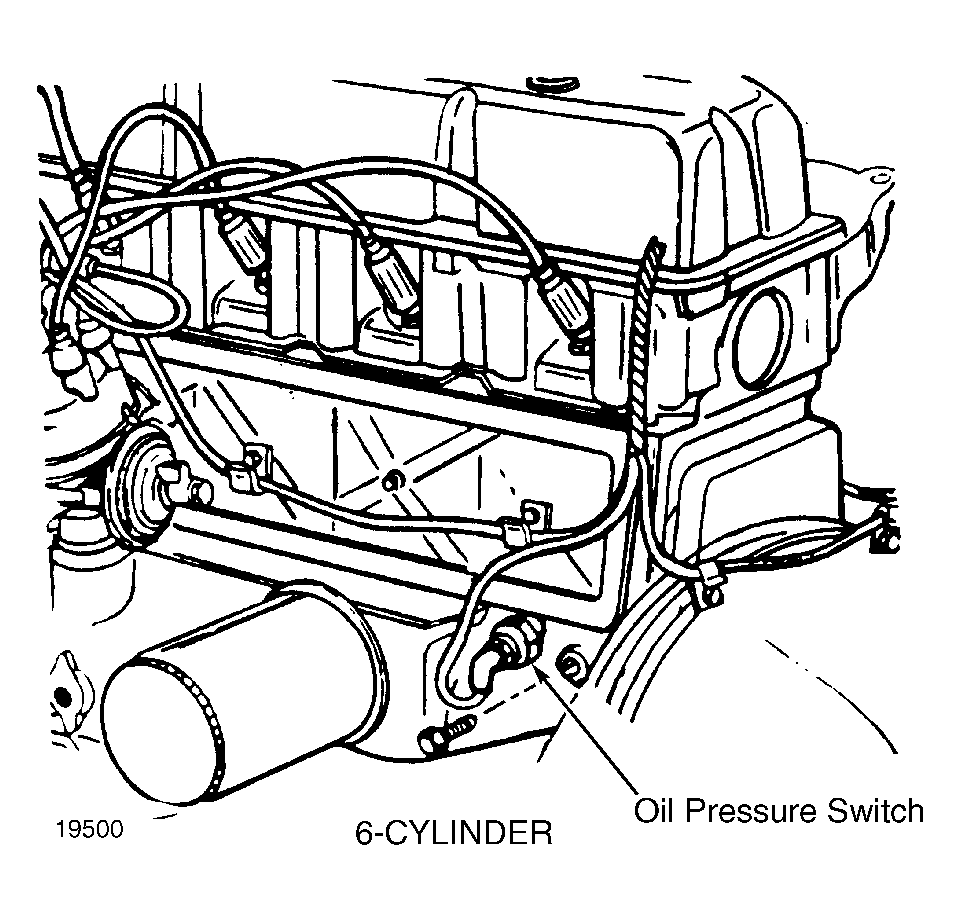

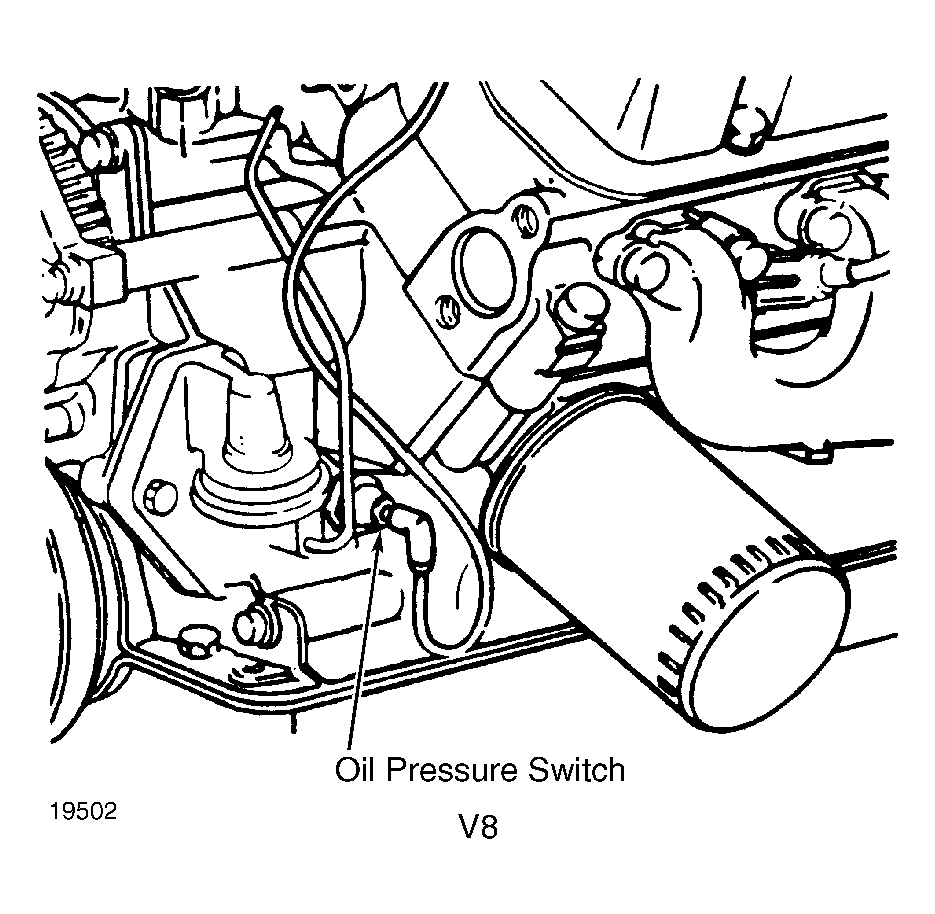

| Oil Pressure Switch | Near oil filter. See Figure & Figure . |
| Water Temperature Sender | Right rear (6-Cyl.) or top front near distributor (V8) on engine. |
