Table 4 - OIS Vehicles Of Interest

Table 4 below includes 2000 and newer model-year gasoline and flex-fuel vehicles (and 1998 and newer diesel vehicles) that have an issue with the OBD test portion of an OIS inspection. Issues include but are not limited to: no communication with vehicle, incomplete readiness monitors, OBD test incompatibility, and false MIL illumination. In most cases, the OIS is tuned to accommodate vehicles with a design anomaly.

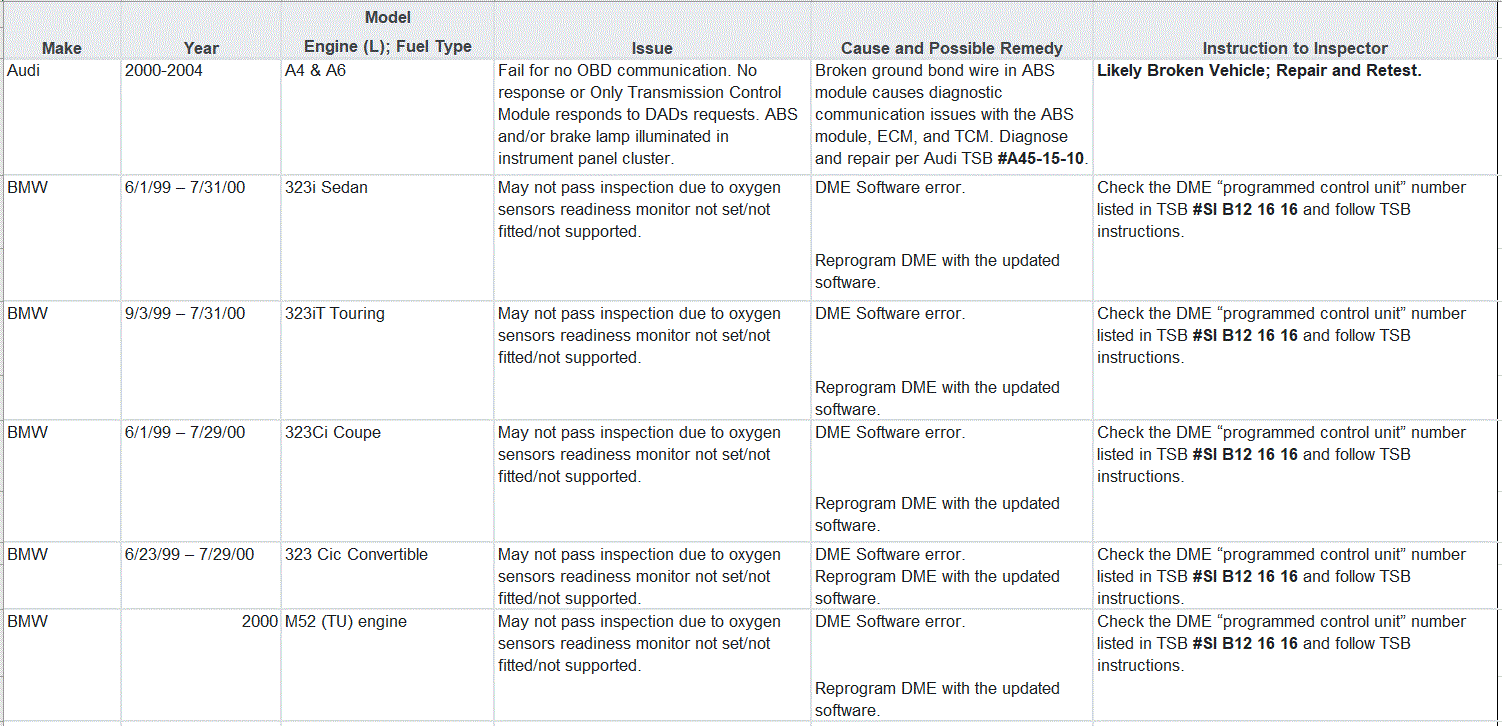

Fig 1: Table 4 - OIS Vehicles of Interest (Audi - BMW) (1 of 15)

G00620009

Courtesy of UNKNOWN

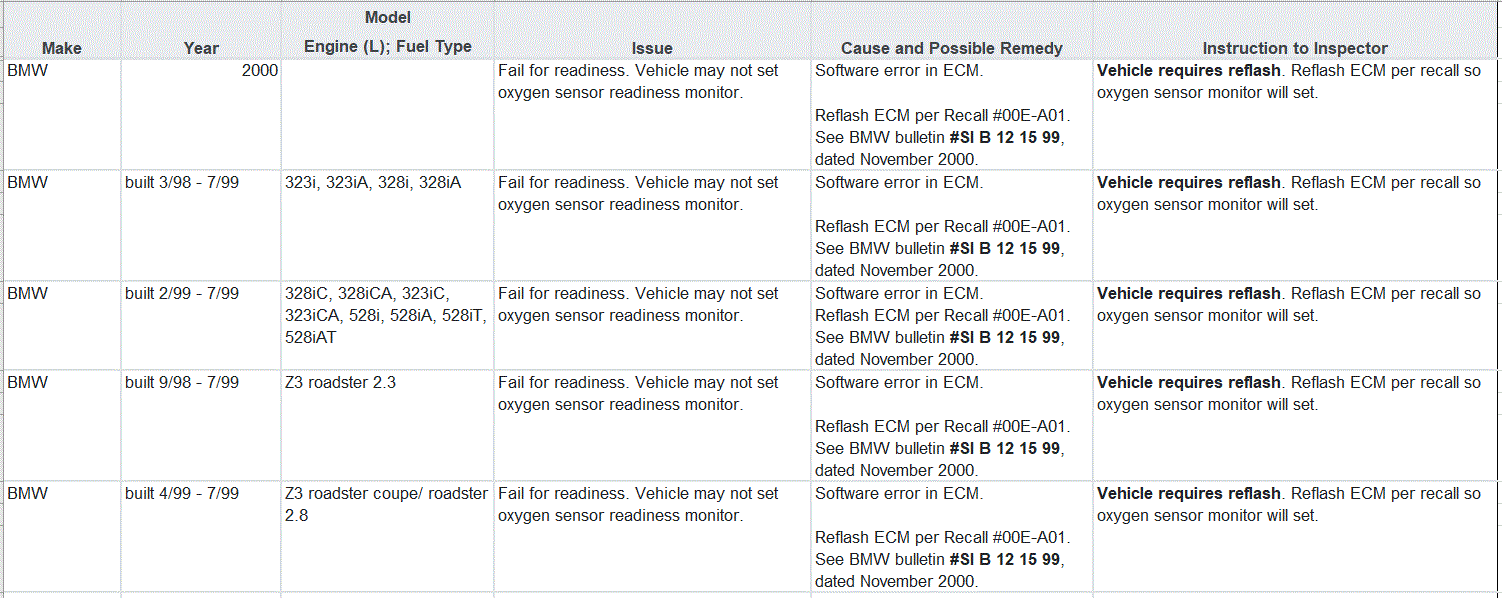

Fig 2: Table 4 - OIS Vehicles of Interest (BMW) (2 of 15)

G00620010

Courtesy of UNKNOWN

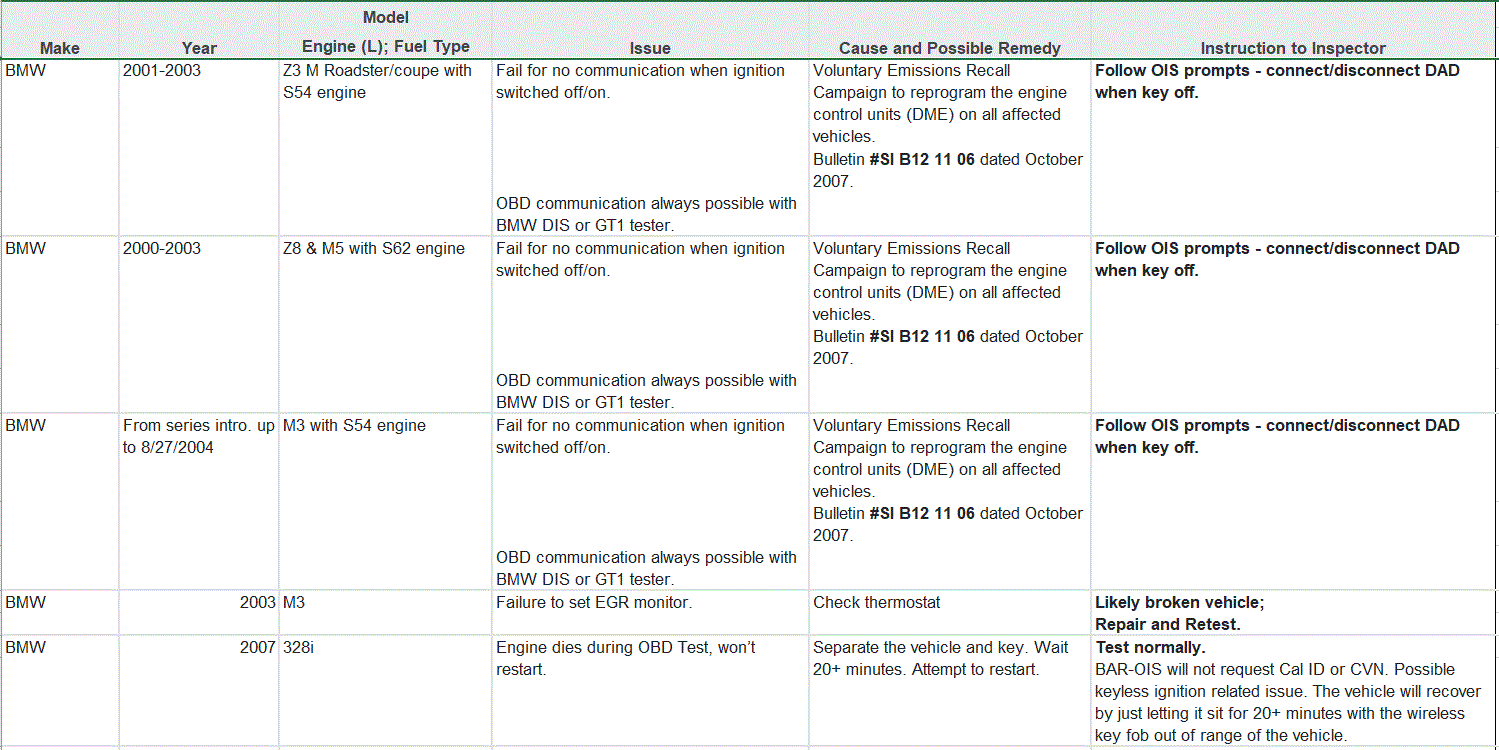

Fig 3: Table 4 - OIS Vehicles of Interest (BMW) (3 of 15)

G00620011

Courtesy of UNKNOWN

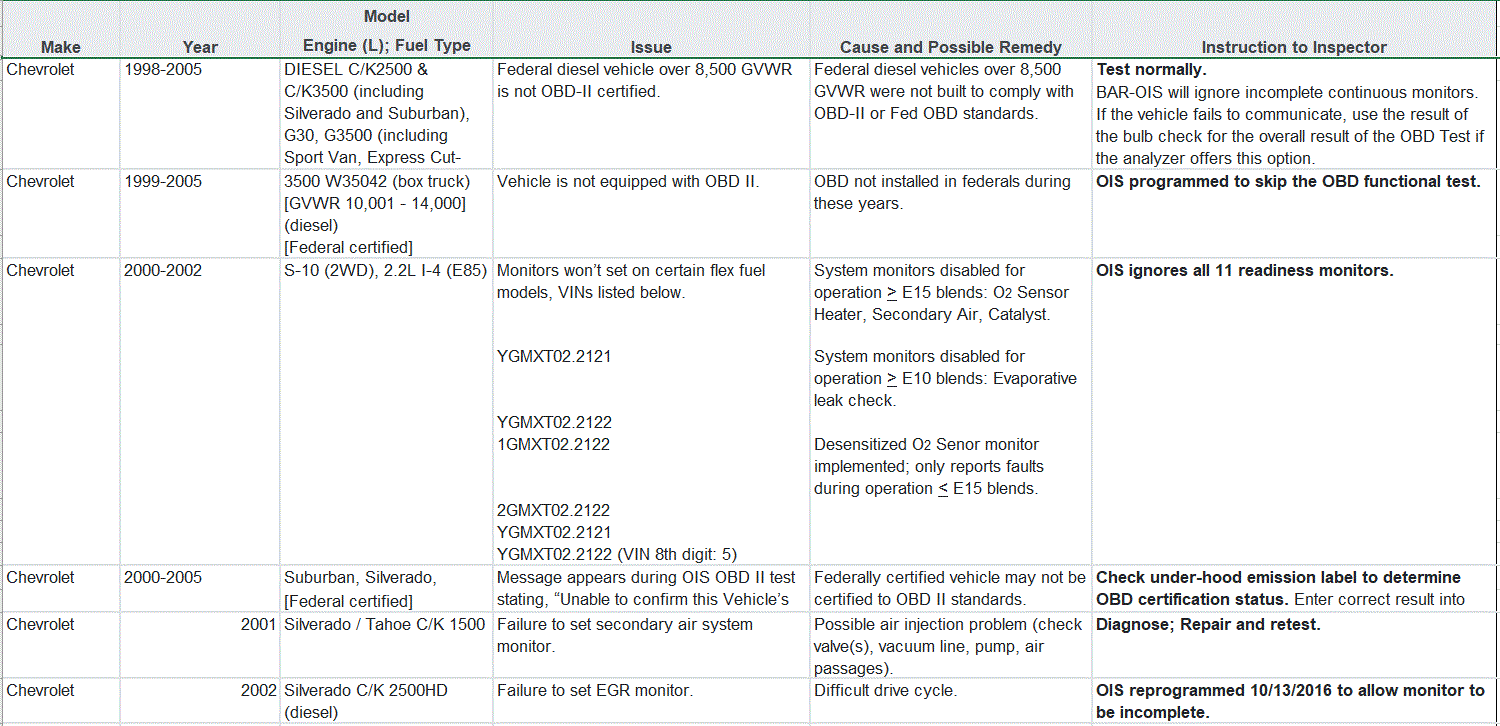

Fig 4: Table 4 - OIS Vehicles of Interest (Chevrolet) (4 of 15)

G00620012

Courtesy of UNKNOWN

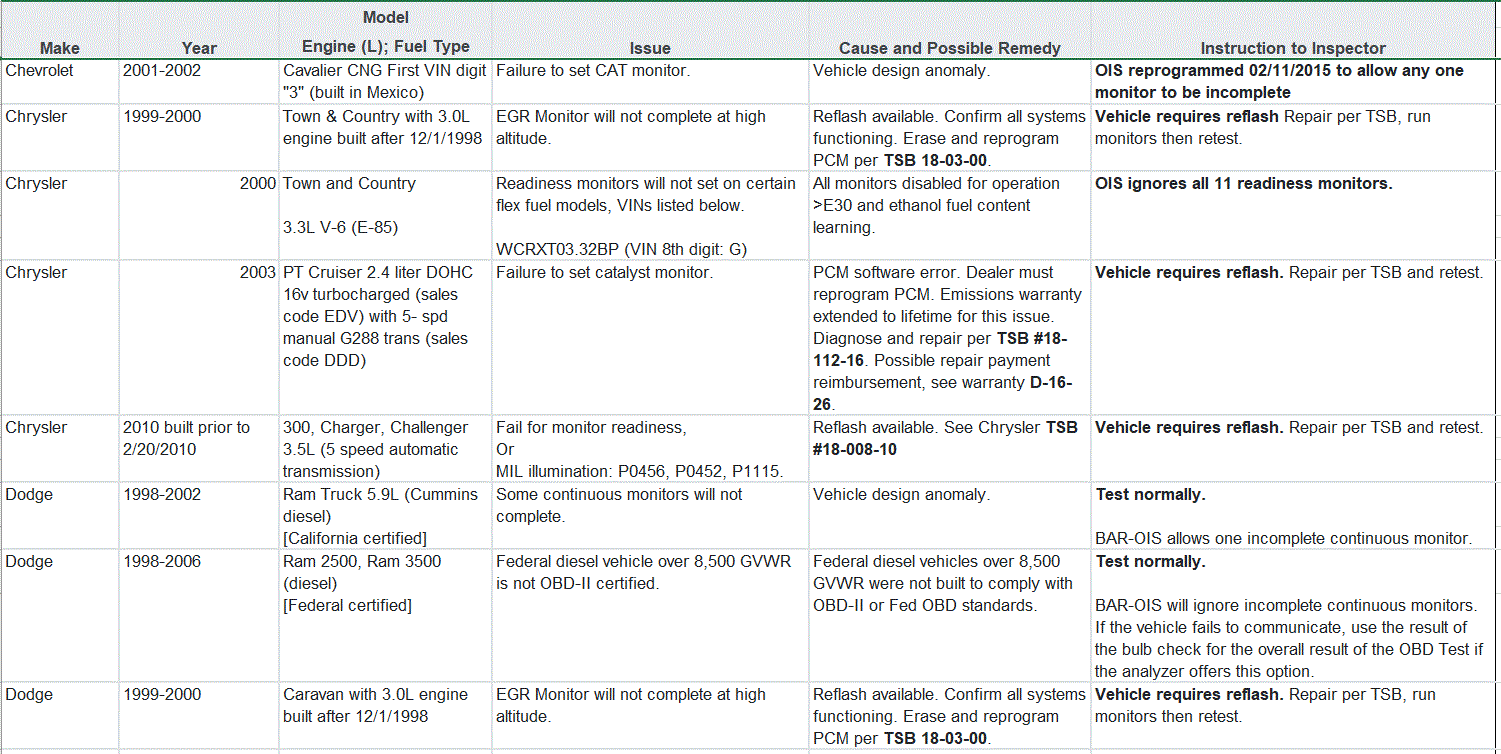

Fig 5: Table 4 - OIS Vehicles of Interest (Chevrolet - Dodge) (5 of 15)

G00620013

Courtesy of UNKNOWN

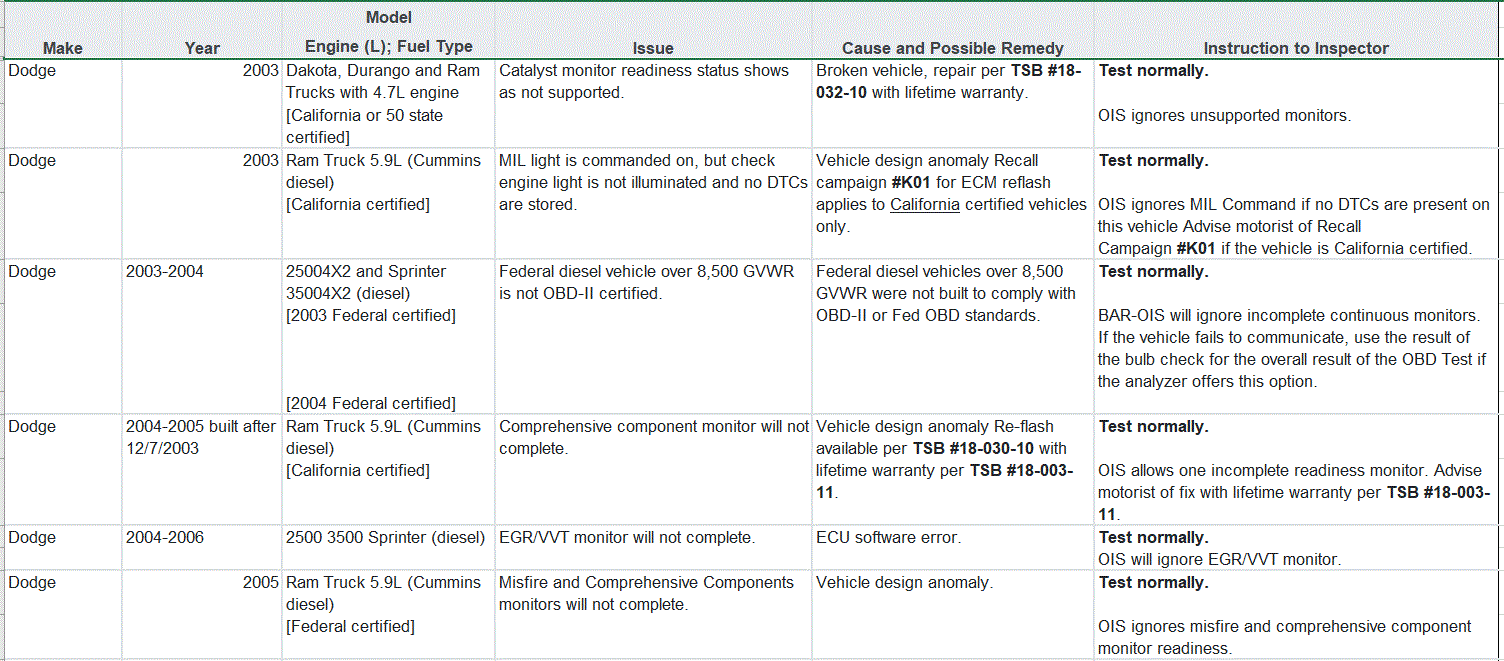

Fig 6: Table 4 - OIS Vehicles of Interest (Dodge) (6 of 15)

G00620014

Courtesy of UNKNOWN

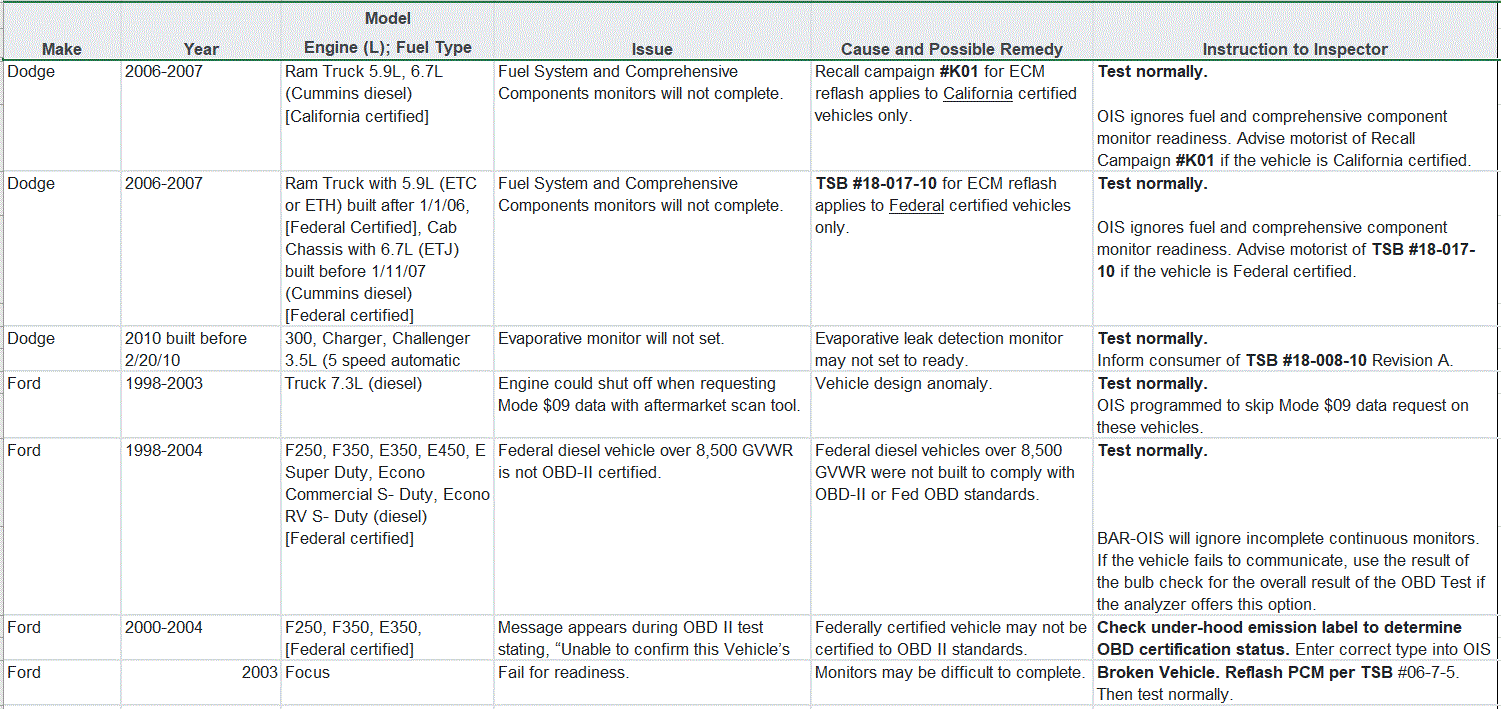

Fig 7: Table 4 - OIS Vehicles of Interest (Dodge - Ford) (7 of 15)

G00620015

Courtesy of UNKNOWN

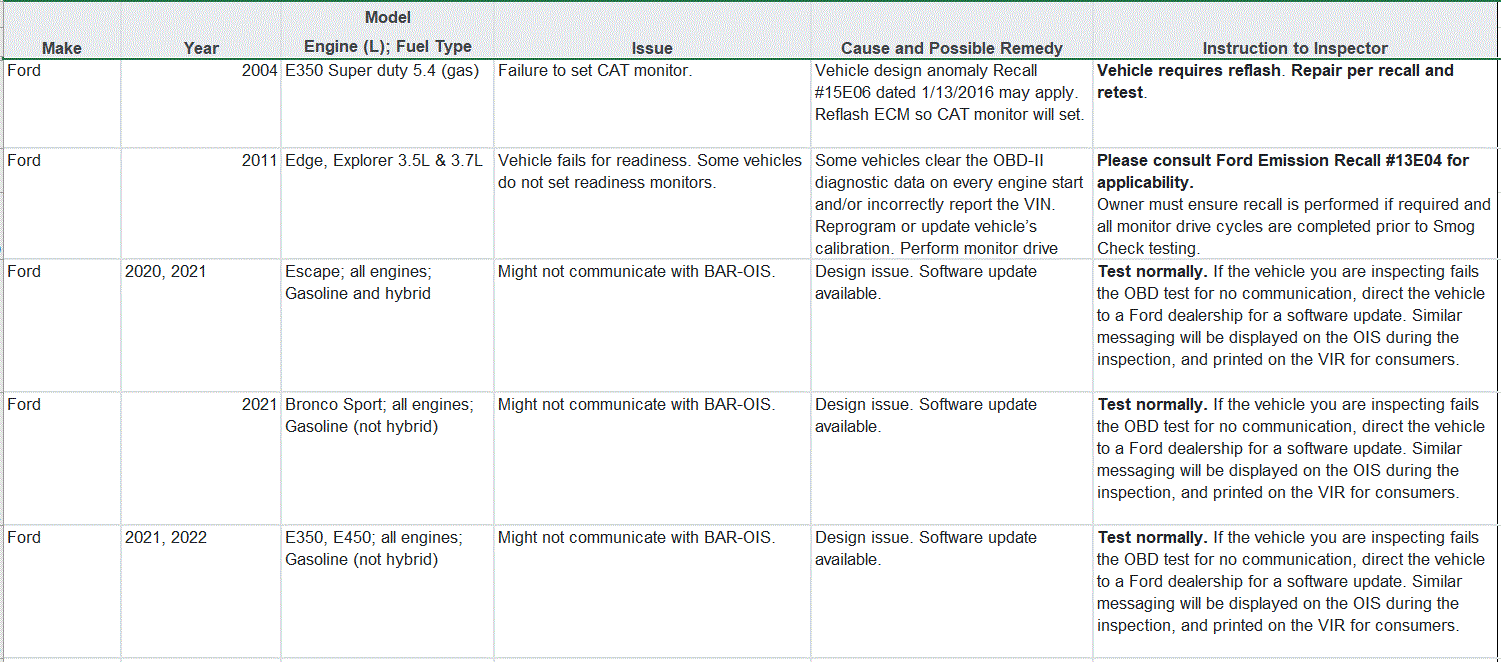

Fig 8: Table 4 - OIS Vehicles of Interest (Ford) (8 of 15)

G00620016

Courtesy of UNKNOWN

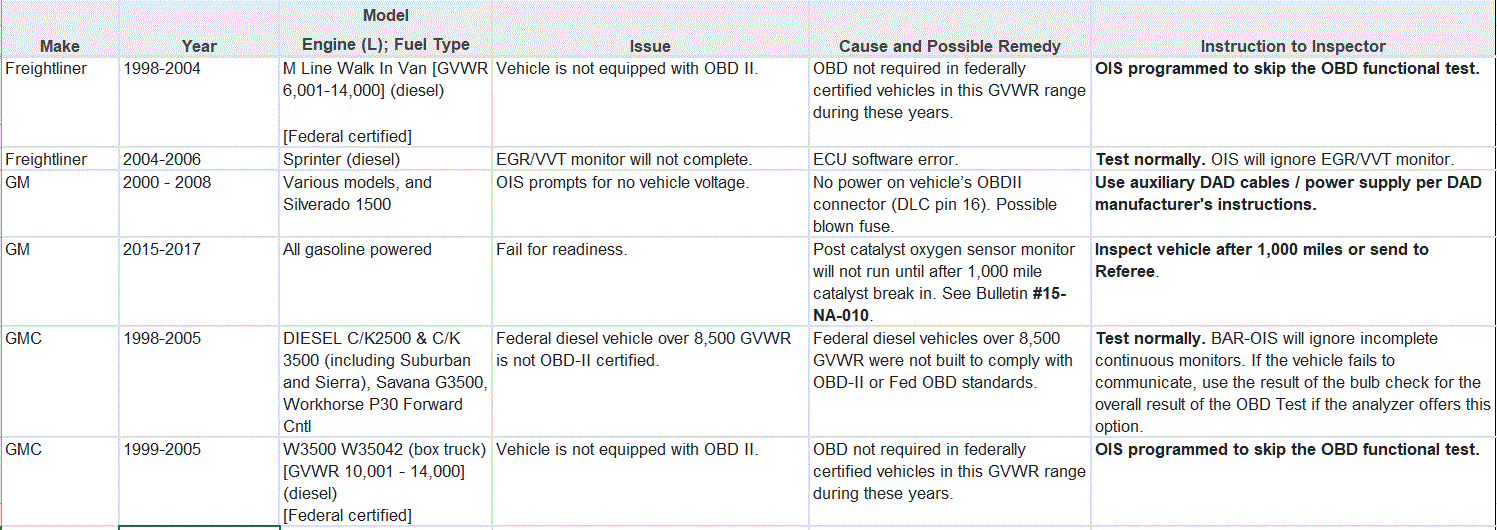

Fig 9: Table 4 - OIS Vehicles of Interest (Freight-Liner - GMC) (9 of 15)

G00620017

Courtesy of UNKNOWN

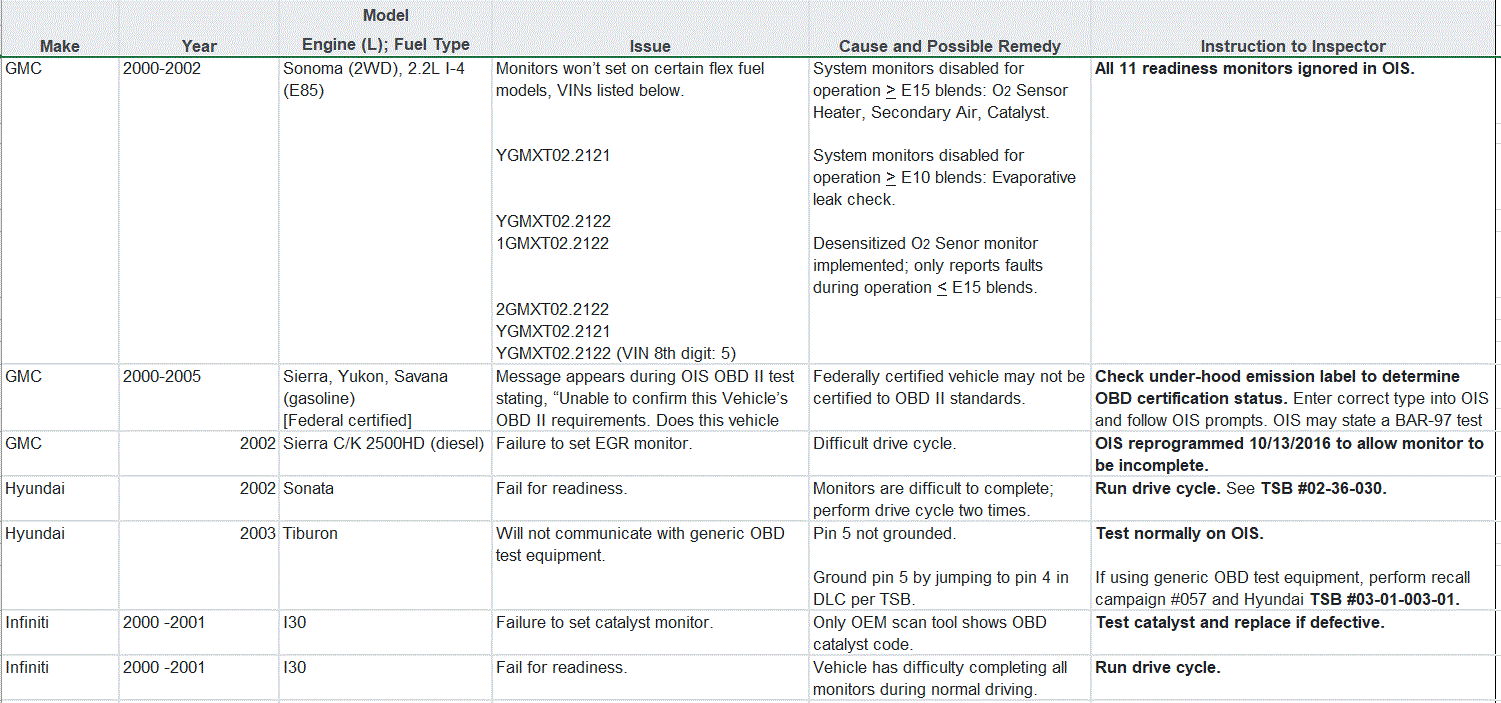

Fig 10: Table 4 - OIS Vehicles of Interest (GMC - Infiniti) (10 of 15)

G00620018

Courtesy of UNKNOWN

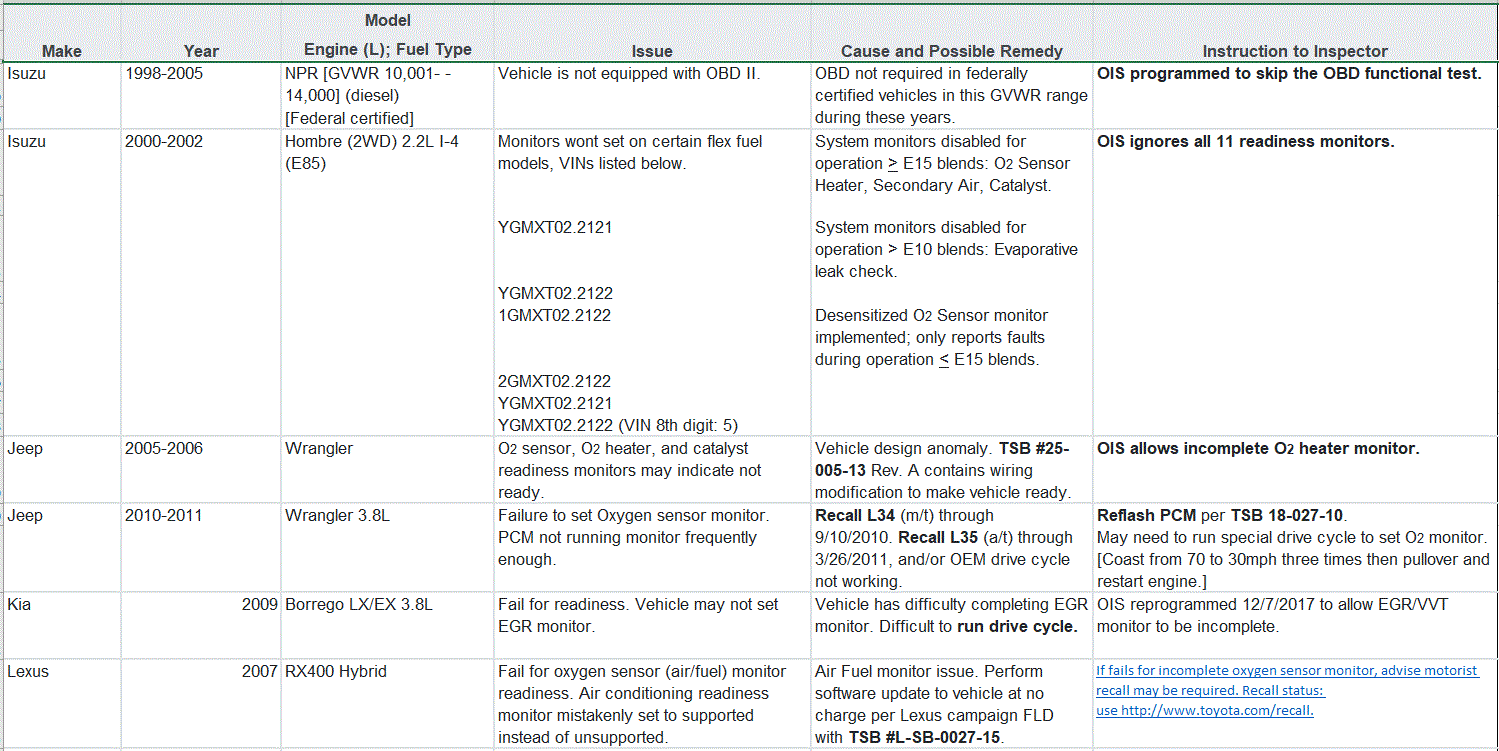

Fig 11: Table 4 - OIS Vehicles of Interest (Isuzu - Lexus) (11 of 15)

G00620019

Courtesy of UNKNOWN

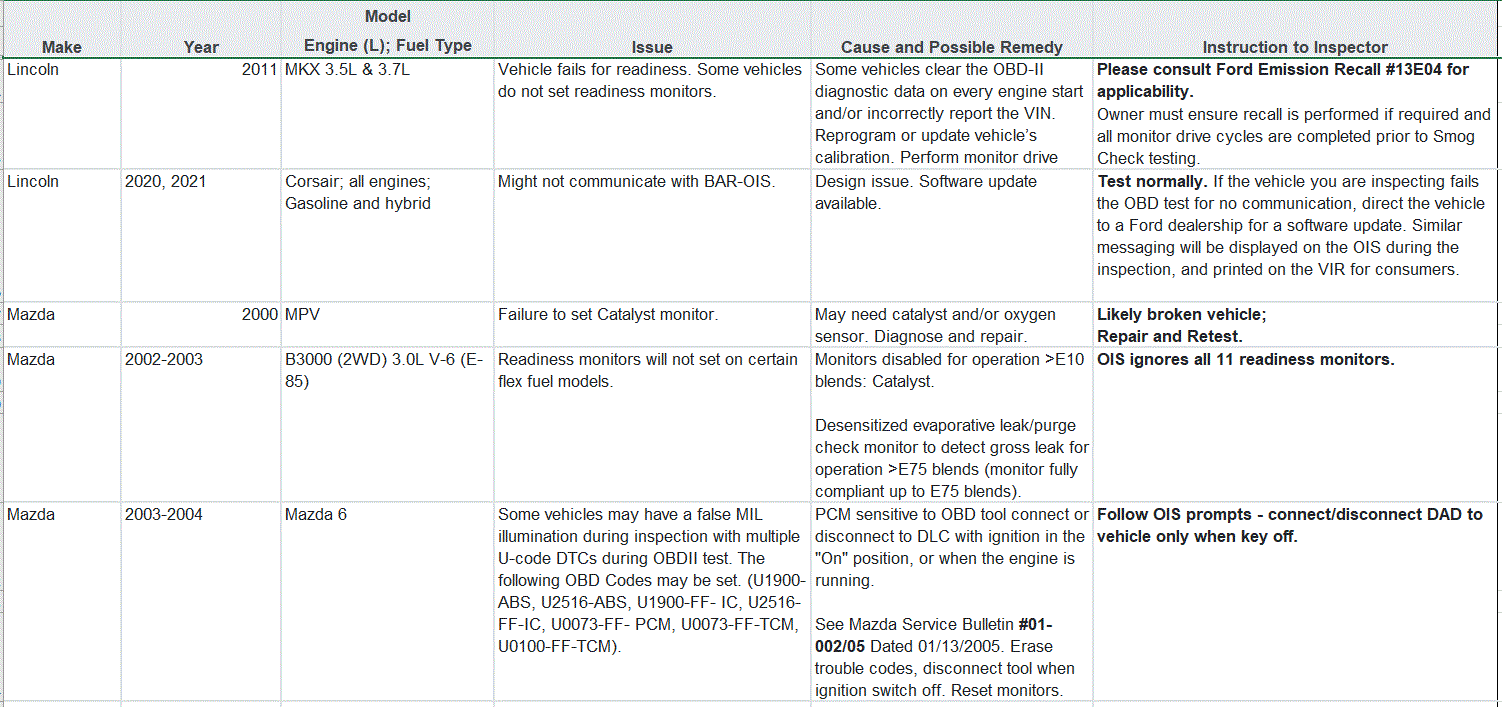

Fig 12: Table 4 - OIS Vehicles of Interest (Lincoln - Mazda) (12 of 15)

G00620020

Courtesy of UNKNOWN

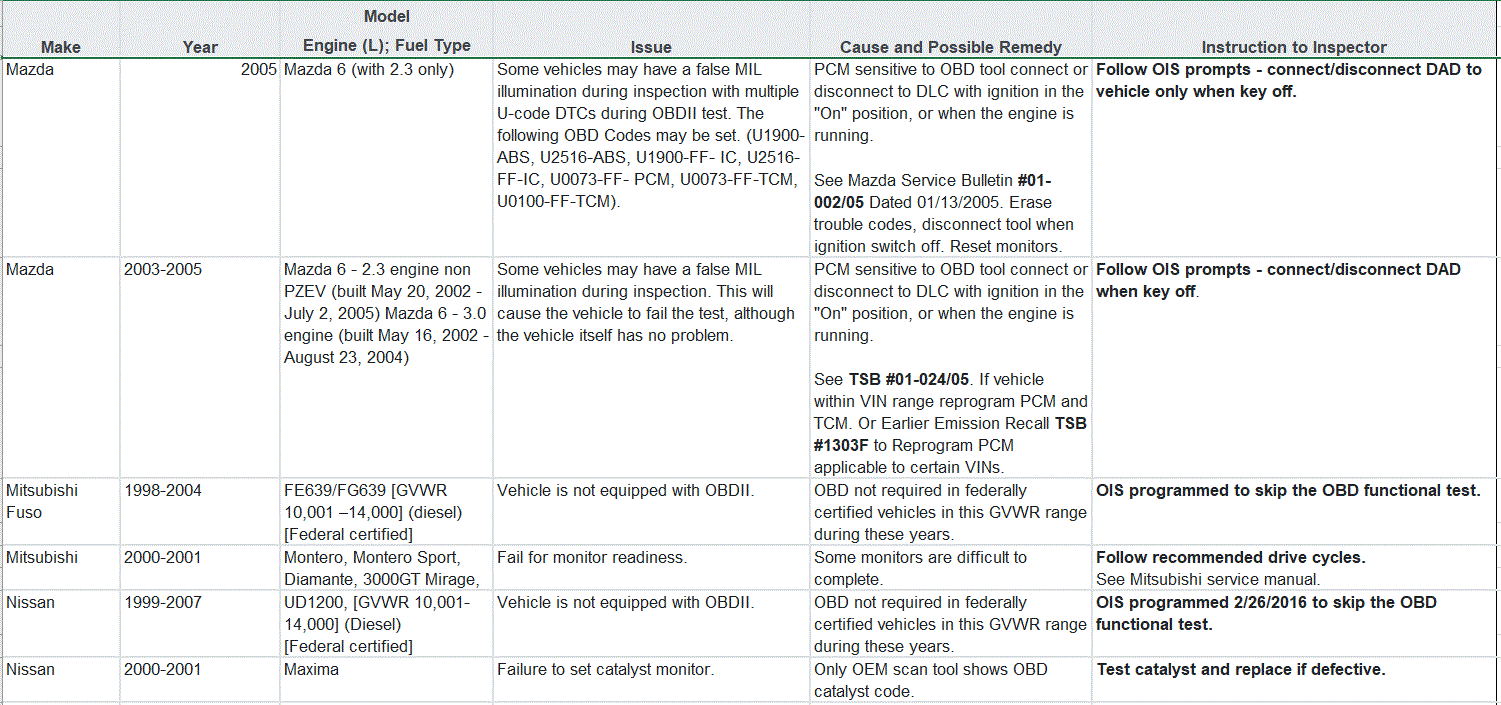

Fig 13: Table 4 - OIS Vehicles of Interest (Mazda - Nissan) (13 of 15)

G00620021

Courtesy of UNKNOWN

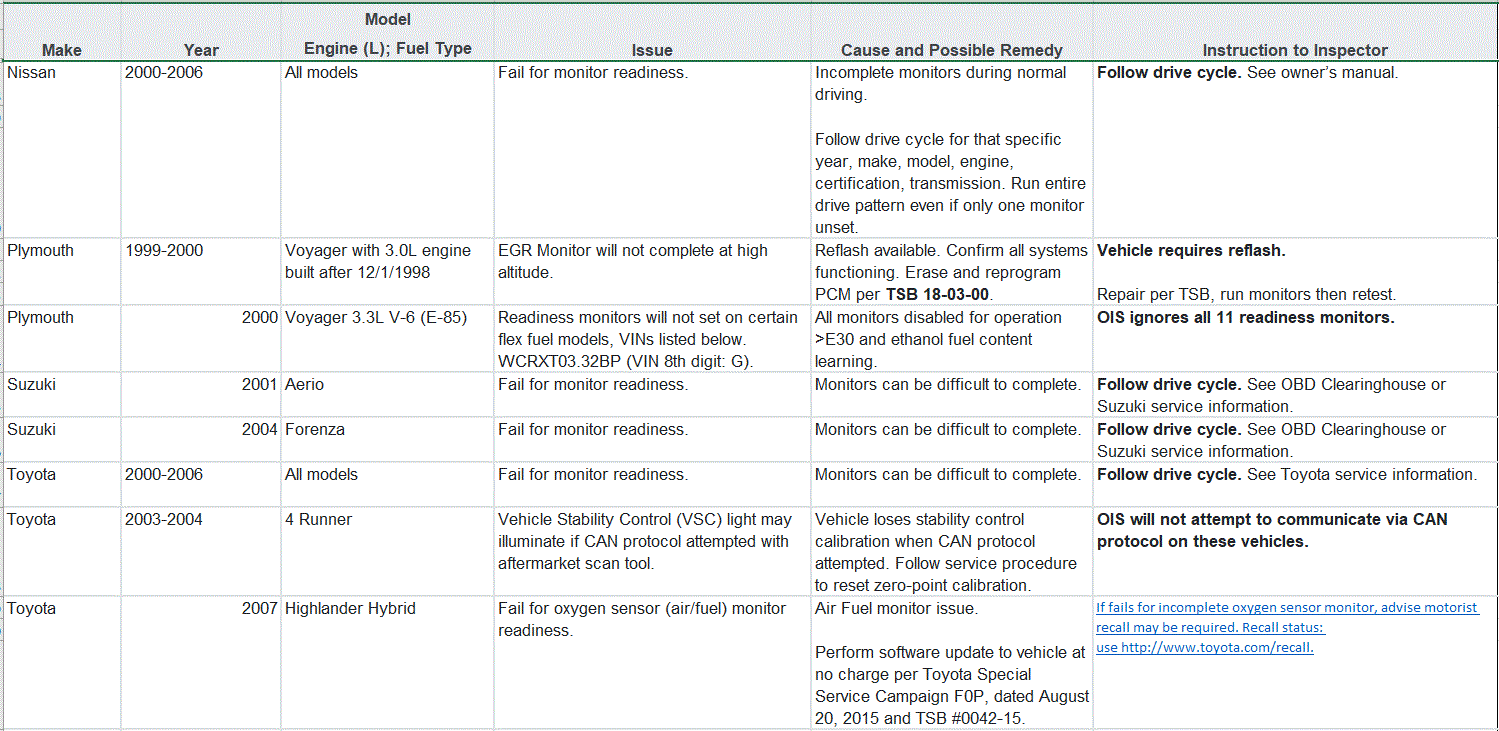

Fig 14: Table 4 - OIS Vehicles of Interest (Nissan - Toyota) (14 of 15)

G00620022

Courtesy of UNKNOWN

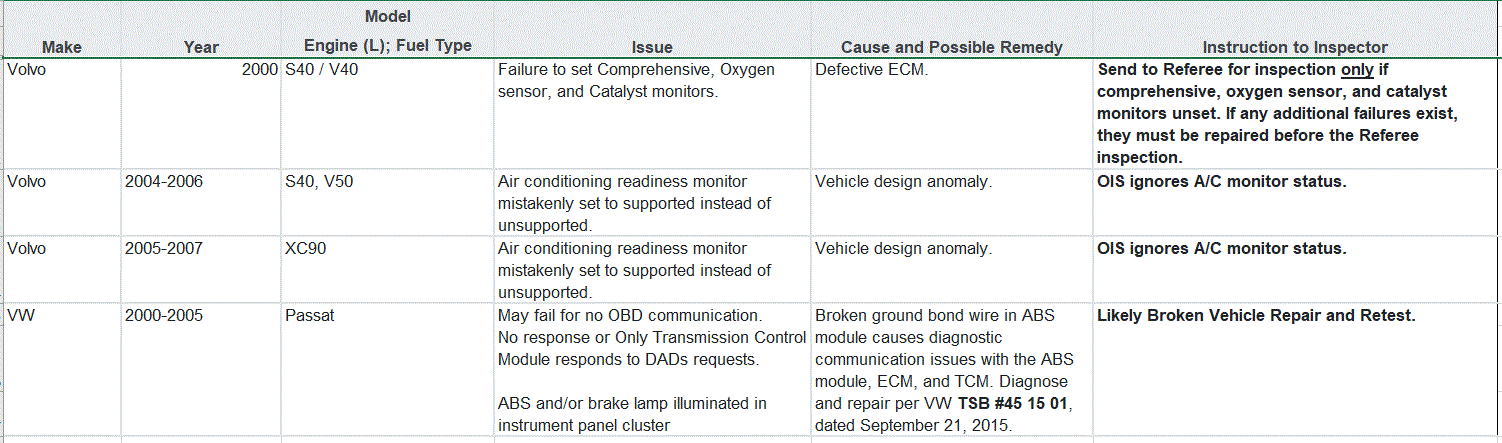

Fig 15: Table 4 - OIS Vehicles of Interest (Volvo - VW) (15 of 15)

G00620023

Courtesy of UNKNOWN
