By-Pass Valve

This valve is connected into the system and reacts to air pressure levels and vacuum levels to direct air pump air through the air control valve or directly to injection manifold.

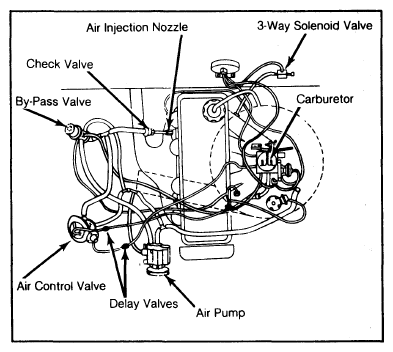

Fig 1: Air Pump Type Air Injection System Used on 2.3L California Engines

Courtesy of FORD MOTOR CO.

Uses single air injection pipe.
