Pitman Arm Replacement

1. Replace pitman arm if arm is bent. Remove cotter pin and nut from drag link ball stud. Remove drag link ball stud from pitman arm. Remove pitman arm attaching nut and washer.
2. Remove pitman arm from steering gear sector shaft using tool T64P-3590-F.
3. Install new pitman arm on sector shaft with wheels in straight ahead position. Install pitman arm nut and washer. Install drag link ball stud on pitman arm, and install cotter pin.

Fig 1: Disassembled View of Steering Linkage

Courtesy of FORD MOTOR CO.

Van and Pickup Models Shown

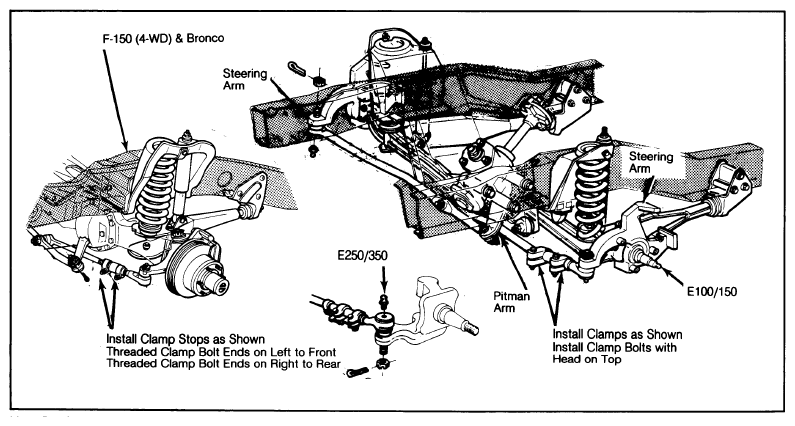

Fig 2: Steering Linkage & Tie Rod Clamp Positioning

Courtesy of FORD MOTOR CO.

Van, F150 4-WD & Bronco Models shown, Pickup similar.
