Both Mirrors Do Not Operate

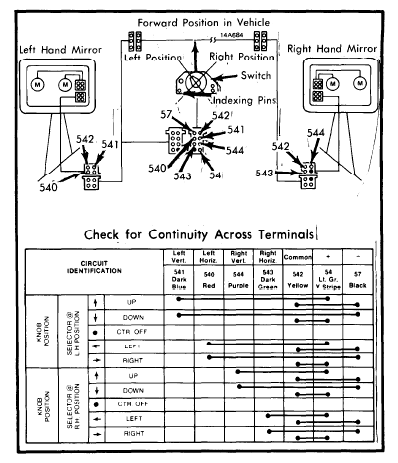

- Check 15 amp fuse in fuse panel. If fuse is good, remove door trim panel and check for power to switch by connecting a test light across terminals 54 and 57. See Fig 1.
- If no power is present, connect terminal 54 to ground and check for open in terminals 54 or 57. If open, trace circuit and correct problem. If power is present, connect jumper wire across terminals as shown in Fig 1, and check continuity.
- If mirrors can be operated by bypassing switch, replace switch.
Courtesy of FORD MOTOR CO.
