Test Results

  1. If voltmeter reading indicates over-voltage (more than two volts above battery voltage), shut off engine and check ground connections between regulator and alternator and/or regulator and engine. Clean and tighten connections, then repeat tests.

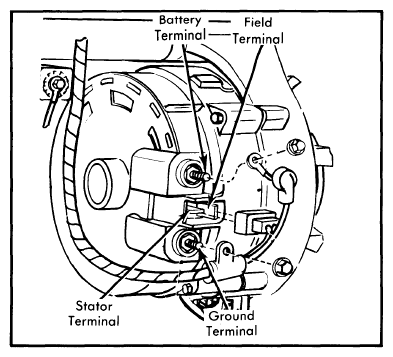

    Fig 1: View Showing Alternator Terminal Location on Side Terminal Models
    G09316922Courtesy of FORD MOTOR CO.
  2. If over-voltage condition still exists, disconnect regulator wiring plug and repeat steps  2 and  3 of "Voltmeter Test Procedures"  . If condition is corrected, replace regulator and repeat test.
  3. If over-voltage still exists with regulator disconnected, a short is indicated in wiring harness between alternator and regulator (Circuits "A" and "F"). Repair short circuit, and then replace regulator, repeating tests with regulator plug connected.
