Rear Window Defogger Fan - All Models: Testing

Check that all in-line fuses or circuit breakers are operational and supply power. Measure voltage at motor, if no voltage is present check wiring harness and control switch. If motor runs at some speeds, but not at others, check speed control resistors.

Fig 1: Rear Window Defogger Fan Wiring Diagram
G09316705Courtesy of NOT AVAILABLE

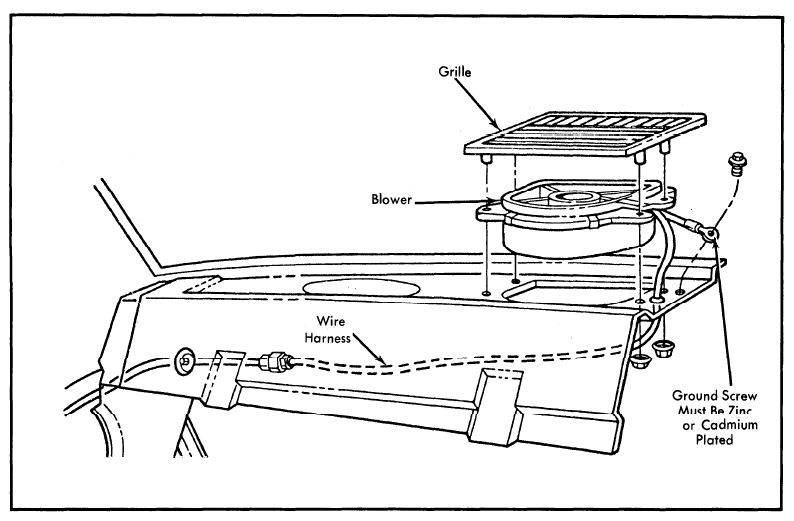

Fig 2: Component Layout of Rear Window Defogger Fan System
G09316706Courtesy of NOT AVAILABLE
