Window Motor

If window does not operate, check fuses. If good, check for correct limit switch adjustment and check ground connection at dashboard switch. If window operates from one switch but not the other, check continuity of both switches in both "UP" and "DOWN" positions.

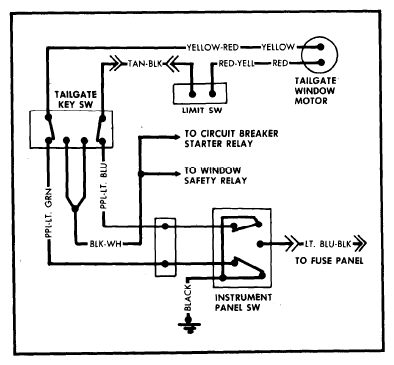

Fig 1: Ford Motor Co. Power Tailgate Window Wiring Diagram
G09316719Courtesy of FORD MOTOR CO.
