Mustang Base, 2D Hatchback, 2.3L Eng VIN Y, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Feedback Carb. System
>>
Wiring Diagrams
Wiring Diagrams

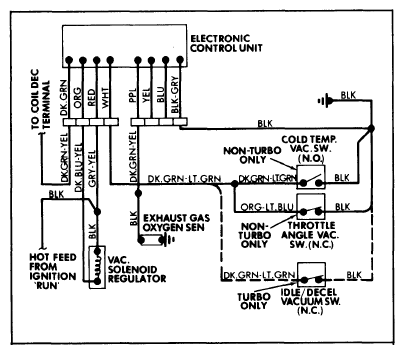

Fig 1: 1978 Feedback Carburetor System Wiring Diagram
Courtesy of FORD MOTOR CO.

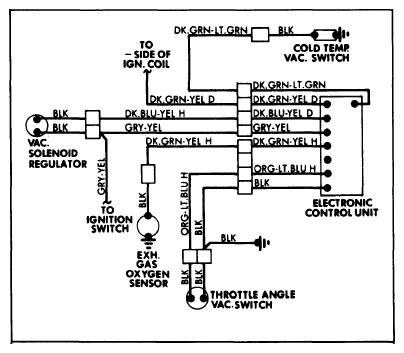

Fig 2: 1979 Feedback Carburetor System Wiring Diagram
Courtesy of FORD MOTOR CO.
