Test Sequence II

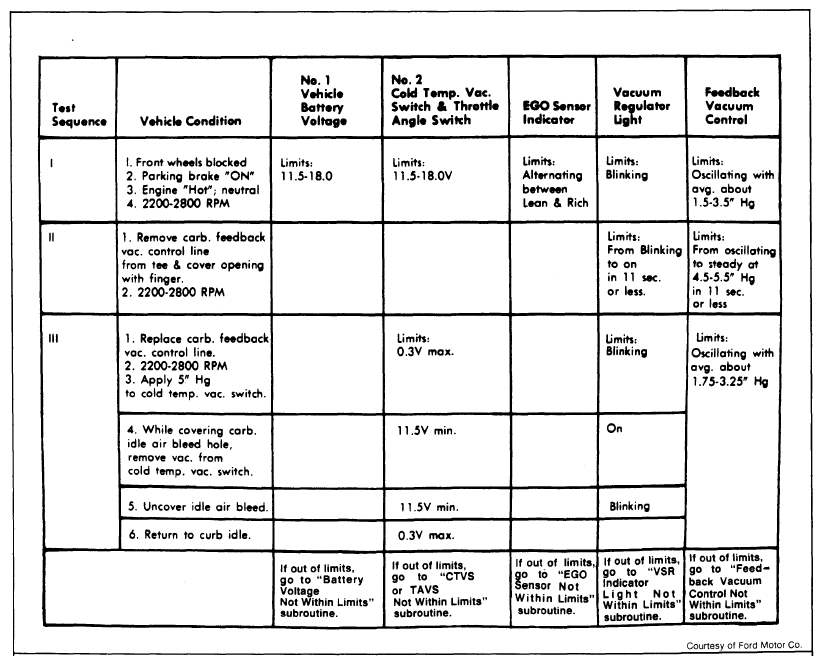

This is a timed procedure. Read full procedure instructions before starting test. See Figure. At vacuum gauge "T" fitting, remove control vacuum hose going to carburetor. At the same time, cover "T" opening with finger. Note and record the time required for the vacuum gauge and vacuum regulator light to obtain a steady condition.
