Repair and Diagnosis: Transmission: Clutch: Clutches: Description

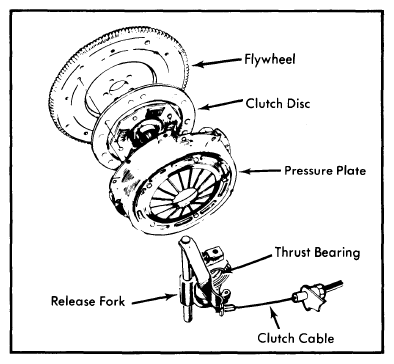

The Fiesta clutch consists of a single dry plate clutch disc and a diaphragm spring pressure plate. The disc has 4 torsion springs. The clutch assembly is operated by an automatic self-adjusting device with a release shaft and thrust bearing inside the clutch housing.
