Non-Depressed Park

Disconnect battery. Disconnect linkage from motor, and disconnect electrical plug to test motor on vehicle. Connect meter as shown. Current draw in high and low speed should not exceed 3 Amps.

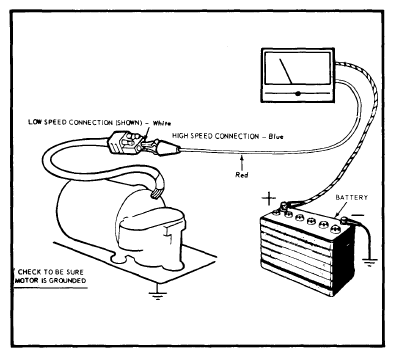

Fig 1: Non-Depressed Motor Current Draw Test

Courtesy of FORD MOTOR CO.

Fig 2: Wiring Diagram 2-Speed Standard Non-Depressed - Pinto, Bobcat

Courtesy of FORD MOTOR CO.

Fig 3: Wiring Diagram 2-Speed Standard Non-Depressed - Mustang, Fairmont, Zephyr, Granada, Monarch, Versailles

Courtesy of FORD MOTOR CO.

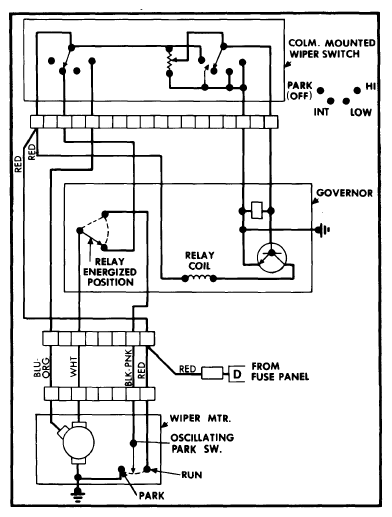

Fig 4: Wiring Diagram 2-Speed Intermittent Non-Depressed - Pinto, Bobcat

Courtesy of FORD MOTOR CO.

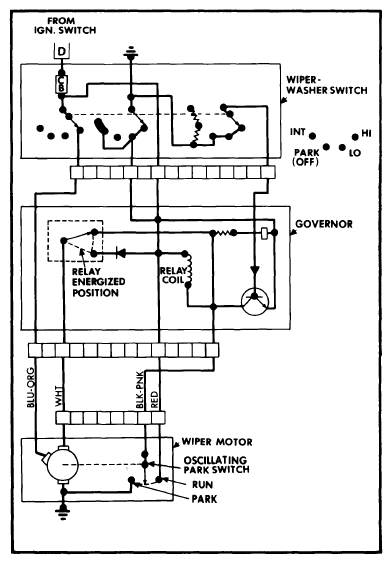

Fig 5: Wiring Diagram 2-Speed Intermittent Non-Depressed - Mustang, Fairmont, Zephyr, Granada, Monarch, Versailles

Courtesy of FORD MOTOR CO.
