General Motors

  1. Remove bottom cover by making a shallow, close cut to bottom outside edge. Use caution not to damage inner shell.
  2. Remove insulation and check inner shell for damage. If damage is found, entire converter must be replaced.
  3. If no damage is found, position new insulation into replacement cover. Apply Sealer (8998245) around edge of cover, using extra sealer at front and rear pipe openings.
  4. Install replacement cover on converter and position retaining channel along edges. Complete the installation by attaching clamps (provided with replacement cover) to both ends of converter.

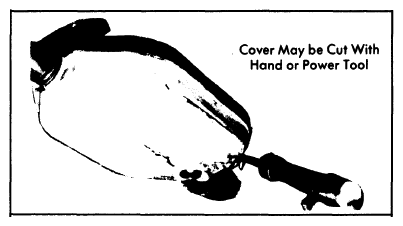

Fig 1: Removal of Converter Bottom Cover
G09327158Courtesy of NOT AVAILABLE
