Alternators - MITSUBISHI: Description

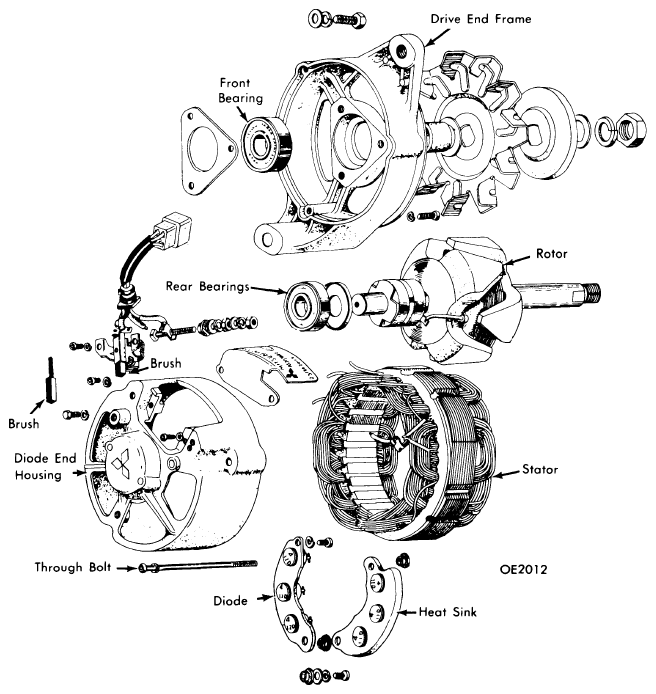

Mitsubishi alternators are conventional three-phase, self-rectifying type units containing six diodes (three positive and three negative) which are used to rectify current.
APPLICATION
| Model | Part No. | |||
|---|---|---|---|---|
| Dodge Colt | AH2040K, AH2040K1 | |||
| Mazda | ||||
| RX-2 | 1757 18 300 | |||
| RX-3 & Pickup | 1011 18 300 | |||
| RX-4 | 1757 18 300A | |||
| 808 | 0453 18 300 | |||
| B1600 | 0605 18 300A | |||
| Courier | (1)D47Z-10346-A | |||
|
||||
SPECIFICATIONS
| Nominal Output at 2500 RPM | ||
|---|---|---|
| Application | Amps. | Voltage |
| AH2040K | 40 | 12 |
| AH2040K1 | 40 | 12 |
| 1757 18 300 | 56 | 14 |
| 1011 18 300 | 40 | 14 |
| 1757 18 300A | 56 | 14 |
| 0453 18 300 | 32 | 14 |
| 0605 18 300A | 32 | 14 |
| D47Z-10346-A | 35 | 14.5 |
COIL RESISTANCE (OHMS)
| Application | Rotor | Stator | ||
|---|---|---|---|---|
| Colt | 4.7 | (1) | ||
| Mazda | 5-6 | (1) | ||
| Courier | ... | ... | ||
|
||||
Brush Wear Limit - To wear limit line (one third of original length).
Brush Spring Pressure - Standard Value -.79 lbs., Service Limit -.46 lbs.
