Tune-Up - V8: Distributor
Point Gap
.017"
Cam Angle
24-30°
Breaker Arm Spring Tension
17-21 ozs.
Condenser Capacity
.21-.25 mfd.

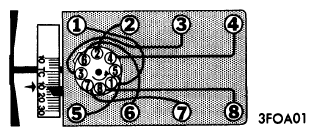

Fig 1: Firing Order & Timing Marks
Courtesy of FORD MOTOR CO.
