Intake Manifold Tightening

Working from the center outward, tighten nuts and bolts to specifications.

Intake Manifold Tightening (Ft. Lbs.)

Application Intake Exhaust
170"   13-18
240" & 300" 28-33 23-28

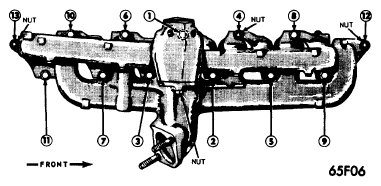

Fig 1: Intake & Exhaust Manifold Tightening Sequence 240" & 300"
G09324928Courtesy of FORD MOTOR CO.
