Pinion Clearance

.025-.235 between pinion and pinion stop with pinion in engaged position.

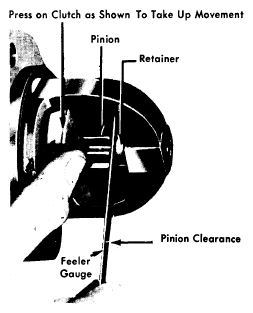

Fig 1: Pinion Clearance Check

G09333286

Courtesy of FORD MOTOR CO.
