Exhaust Temperature Sensor 1/1

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Raise and support the vehicle

   Refer to HOISTING, STANDARD PROCEDURE .

3. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

4. Disconnect the Exhaust Gas Temperature (EGT) sensor wire harness connector (1).
5. Remove the two nuts (2) securing the EGT module.

   Courtesy of CHRYSLER GROUP, LLC

6. Remove downstream EGT sensor (1) of the catalytic converter.

   Courtesy of CHRYSLER GROUP, LLC

7. Remove the upstream EGT sensor (1) from the catalytic converter.

   Courtesy of CHRYSLER GROUP, LLC

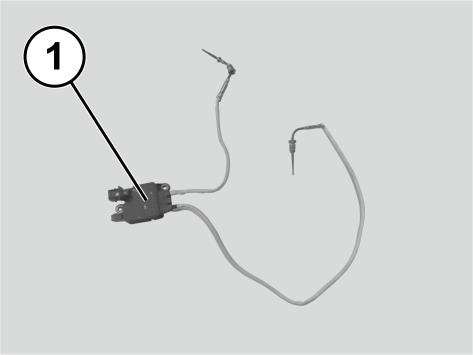

8. Remove the EGT sensors with the module (1) from the vehicle.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Position the Exhaust Gas Temperature (EGT) sensor module complete with EGT sensors and secure it to the mounting bracket using the nuts (2).

   Courtesy of CHRYSLER GROUP, LLC

2. Install the upstream EGT sensor in the catalytic converter and tighten the connector (1) to the. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

3. Install the EGT sensor downstream of the catalytic converter and tighten the connector (1) to the. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

4. Connect the EGT sensor module wire harness connector (1).
5. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
6. Remove the support and lower the vehicle.
7. Connect the negative battery cable.
